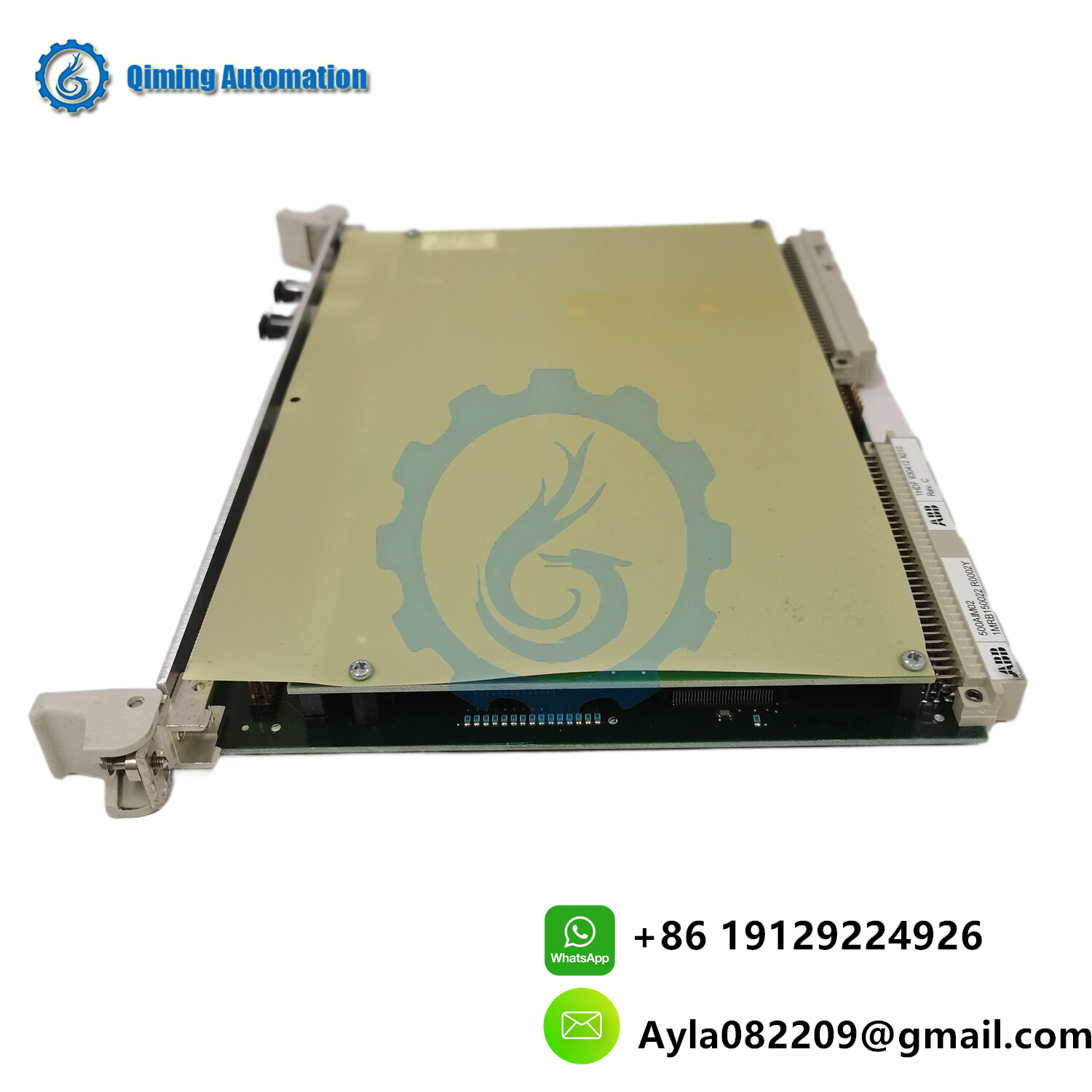

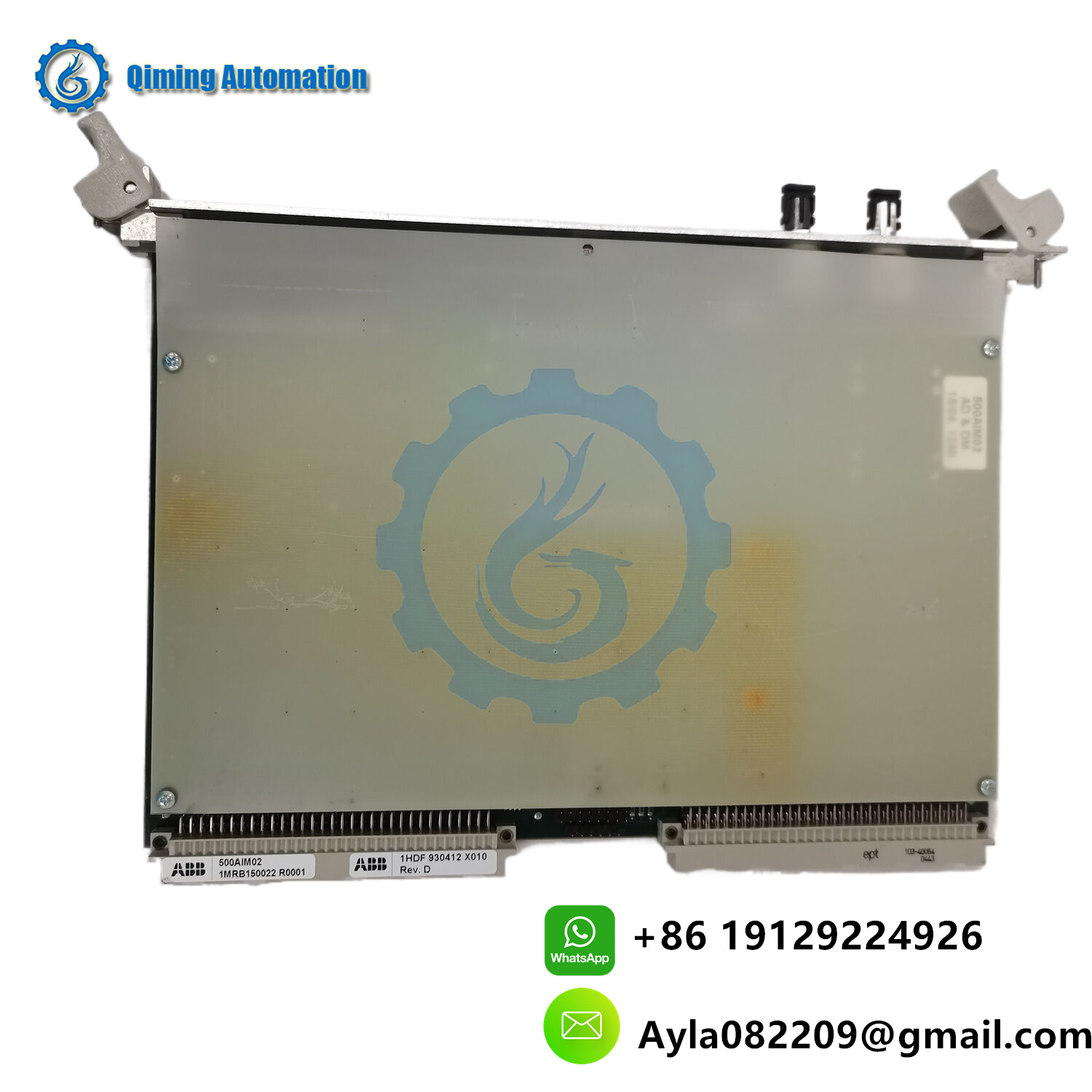

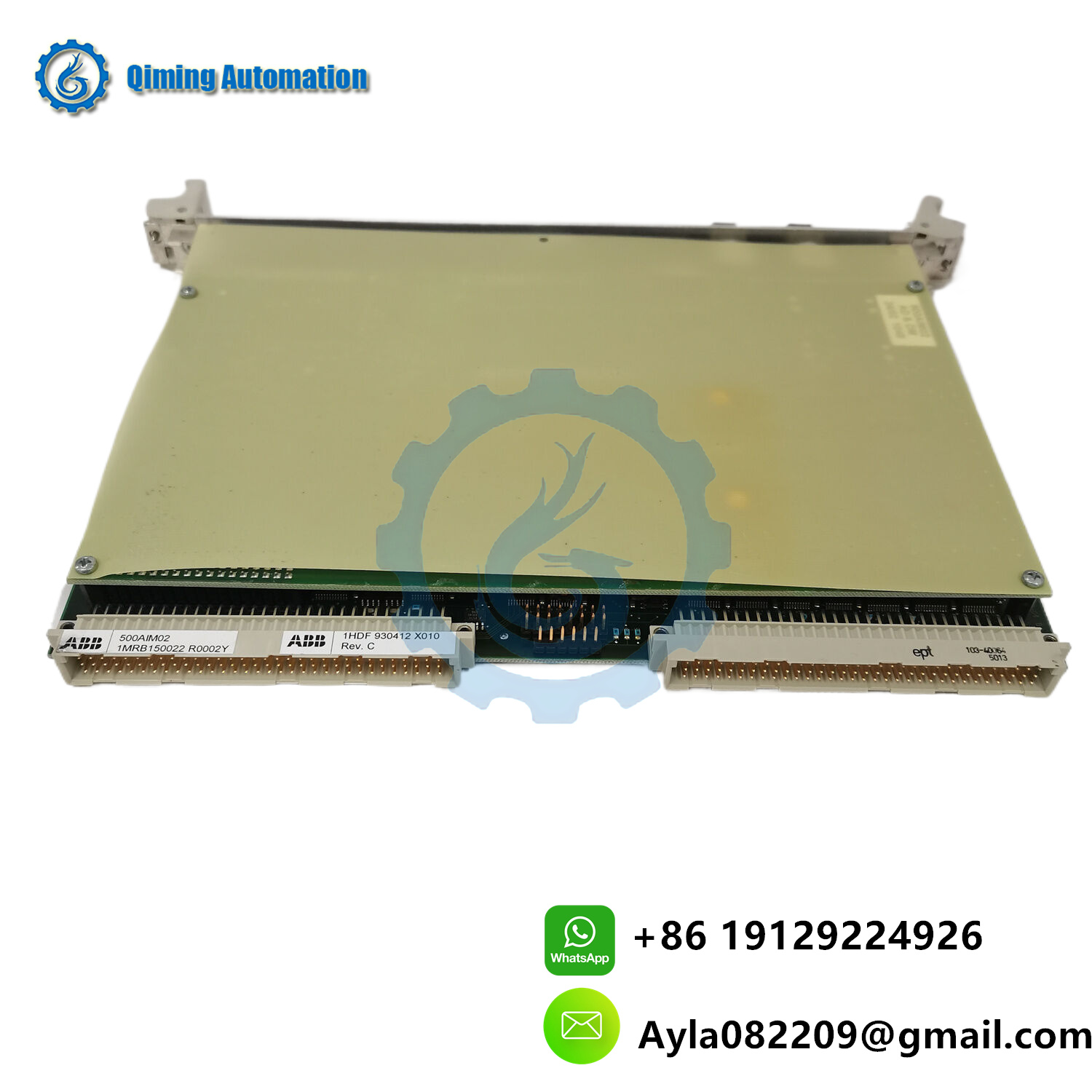

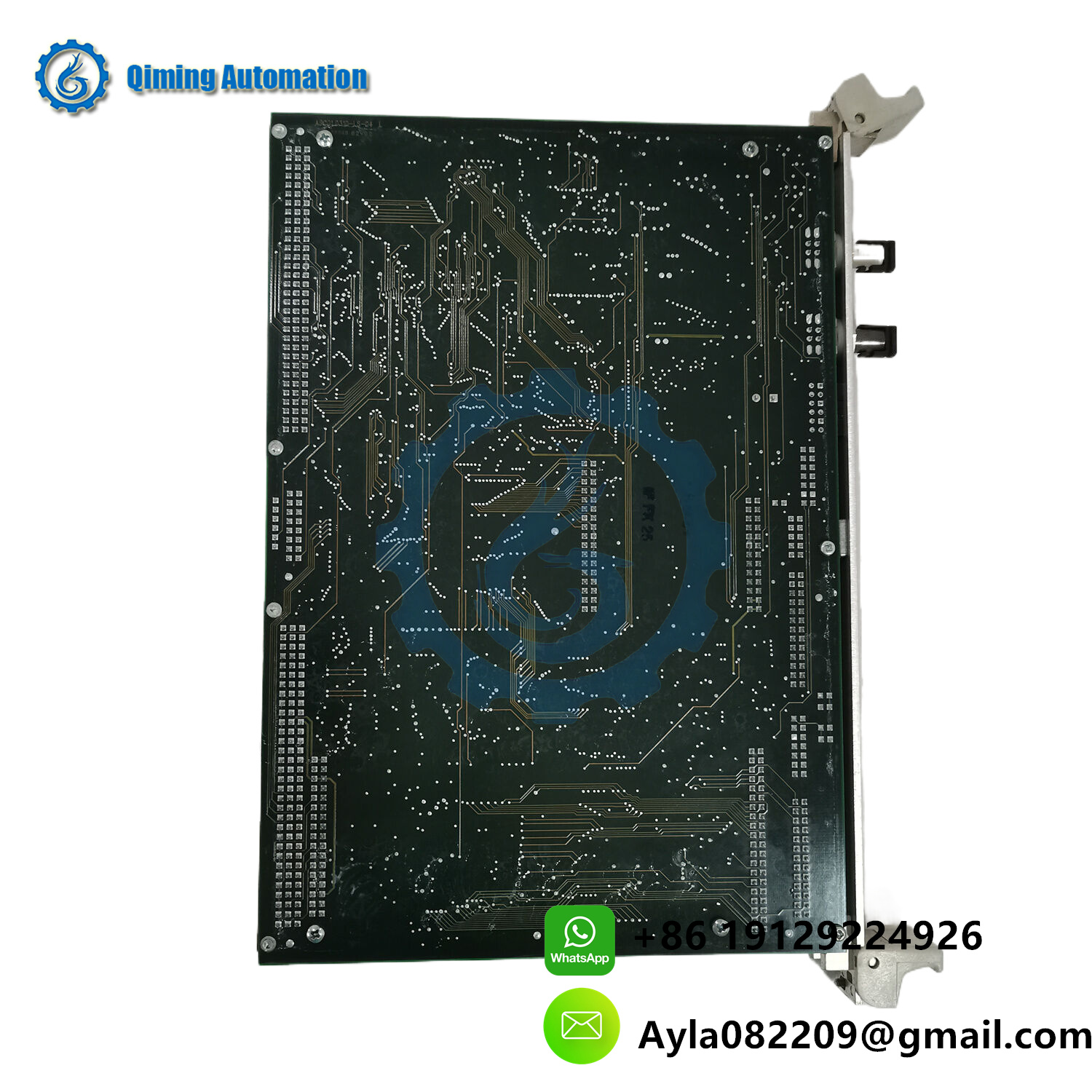

500AIM02 ABB Analog Input Module

Here’s a detailed technical and functional overview of the ABB 500AIM02, a high-performance analog input module designed for industrial automation and process control applications. The ABB 500AIM02 is engineered to deliver precision, reliability, and seamless integration in harsh environments. Below are its key specifications and features.

Technical Parameters of the ABB 500AIM02

1. Power Supply:
   • Voltage Range: 24V DC (±10%) or 100–240V AC/DC (universal input with auto-ranging).
   • Power Consumption: <5W (low-energy operation).
2. Analog Input Channels:
   • Number of Channels: 8 or 16 channels (configurable via software).
   • Input Types: Supports 0–10V, ±10V, 4–20mA, and thermocouple/RTD signals (user-selectable per channel).
   • Resolution: 16-bit ADC (high-precision measurement).
   • Accuracy: ±0.1% of full scale (at 25°C).
3. Isolation & Protection:
   • Channel-to-Channel Isolation: 250V AC (prevents cross-talk and noise interference).
   • Surge Protection: Built-in protection against overvoltage (±30V) and overcurrent (30mA).
   • Filtering: Configurable low-pass filters for noise reduction.
4. Communication Interfaces:
   • Ethernet: 10/100 Mbps TCP/IP (supports Modbus TCP, PROFINET, or EtherNet/IP).
   • Serial Ports: RS-485 (Modbus RTU, DNP3.0).
   • Fieldbus Integration: Optional PROFIBUS DP or DeviceNet modules.
5. Environmental Specifications:
   • Operating Temperature: -25°C to +70°C.
   • Storage Temperature: -40°C to +85°C.
   • Humidity: 5–95% (non-condensing).
   • Certifications: IEC 61326 (EMC), UL 61010-1, CE, and RoHS compliant.
   • Protection Class: IP20 (enclosure), IP40 (front panel).
6. Mechanical Design:
   • Dimensions: 120 x 90 x 35 mm (compact DIN-rail mounting).
   • LED Indicators: Per-channel status LEDs for diagnostics (fault, active, communication).

Key Functionalities of the ABB 500AIM02

1. High-Accuracy Signal Acquisition:
   • The ABB 500AIM02 ensures precise measurement of analog signals, ideal for critical processes like temperature monitoring, pressure sensing, and flow control.
   • Auto-calibration and cold-junction compensation (for thermocouples) enhance accuracy.
2. Flexible Configuration:
   • Channels are individually configurable via ABB’s Automation Builder or Control System 800xA software.
   • Supports linearization for non-standard sensor outputs (e.g., PT100, J/K-type thermocouples).
3. Diagnostics & Fault Detection:
   • Real-time detection of open circuits, short circuits, and out-of-range signals.
   • Event logging with timestamped alarms (stores up to 1,000 events).
4. Seamless Integration:
   • Compatible with ABB’s AC 800M controllers and third-party PLCs/SCADA systems.
   • Redundant communication paths (dual Ethernet ports) for mission-critical systems.
5. Cybersecurity:
   • Secure firmware updates and password-protected access to prevent unauthorized configuration changes.
   • Compliance with IEC 62443 for industrial network security.
6. Scalability:
   • Modular design allows expansion with additional ABB 500AIM02 units or mixed I/O modules (e.g., digital, analog output).

Typical Applications

• Process Industries: Monitoring pH levels, pressure, and temperature in chemical plants.
• Power Generation: Turbine control, fuel flow measurement, and grid stability monitoring.
• HVAC Systems: Precision climate control using RTD inputs for temperature feedback.
• Water Treatment: Analog signal acquisition for pump control and valve positioning.

Summary

The ABB 500AIM02 is a versatile and robust analog input module tailored for industries requiring high accuracy and reliability. With its advanced diagnostics, flexible configuration, and compliance with industrial standards, the ABB 500AIM02 is a cornerstone of modern automation systems. For exact specifications, refer to the ABB 500AIM02 datasheet or consult ABB’s technical team.
