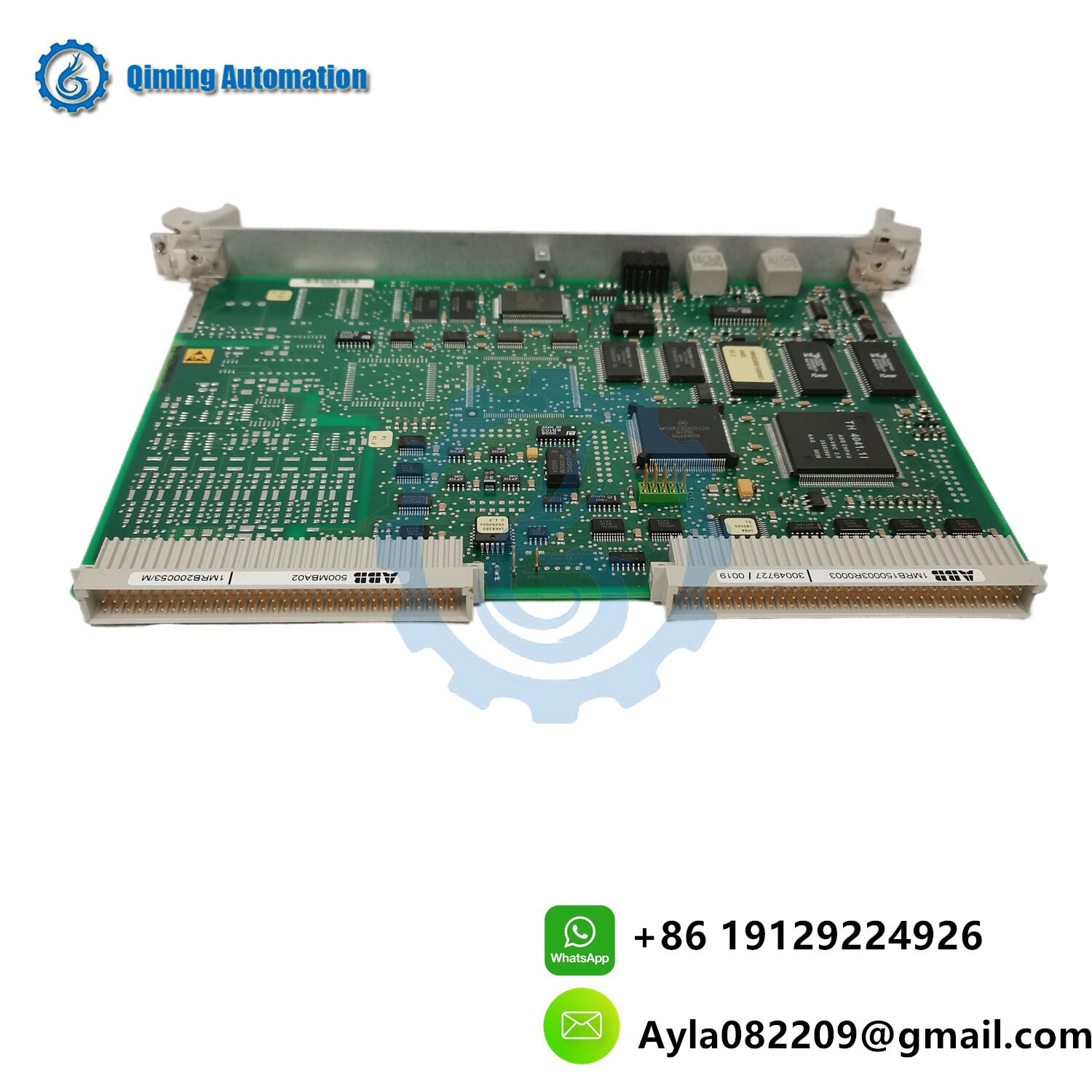

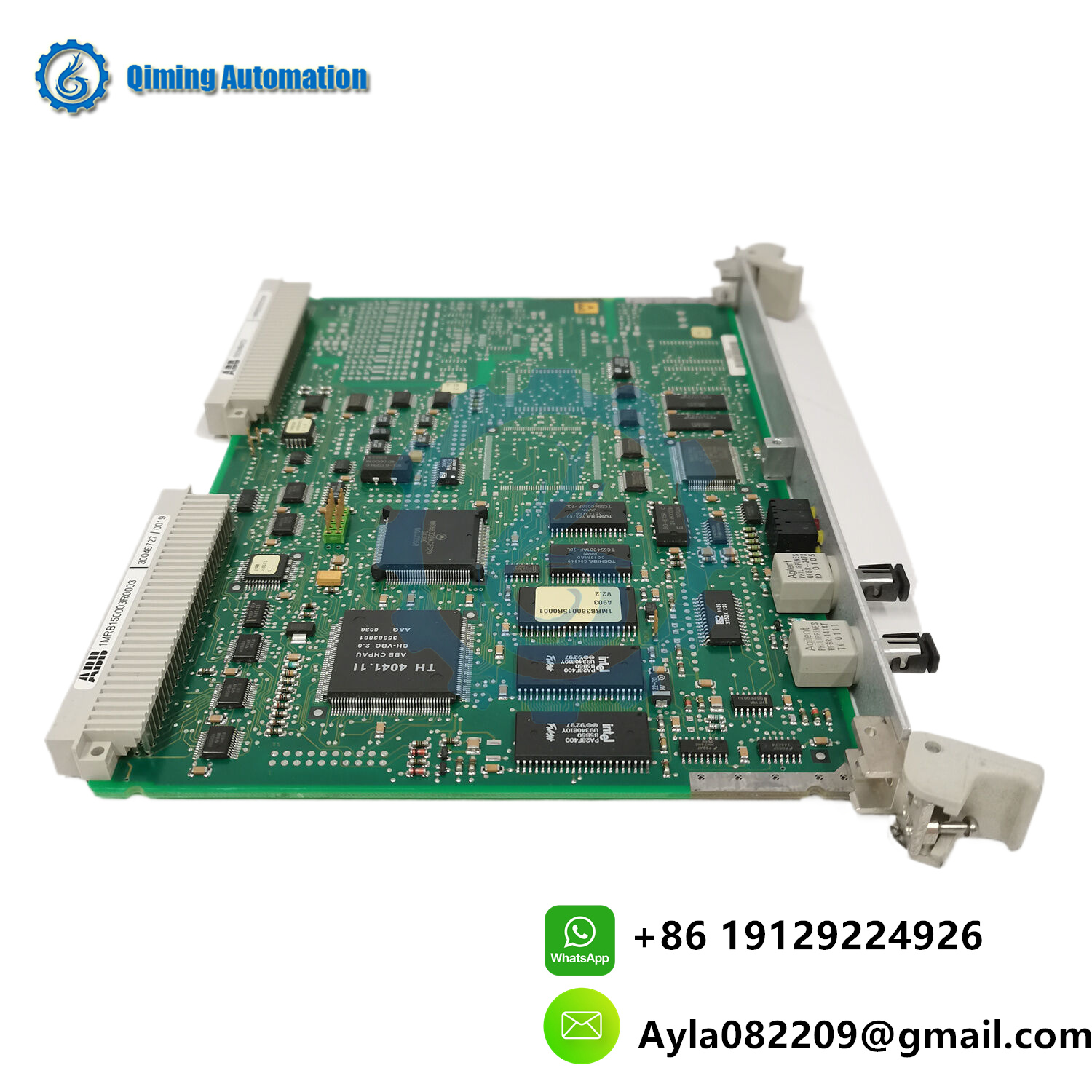

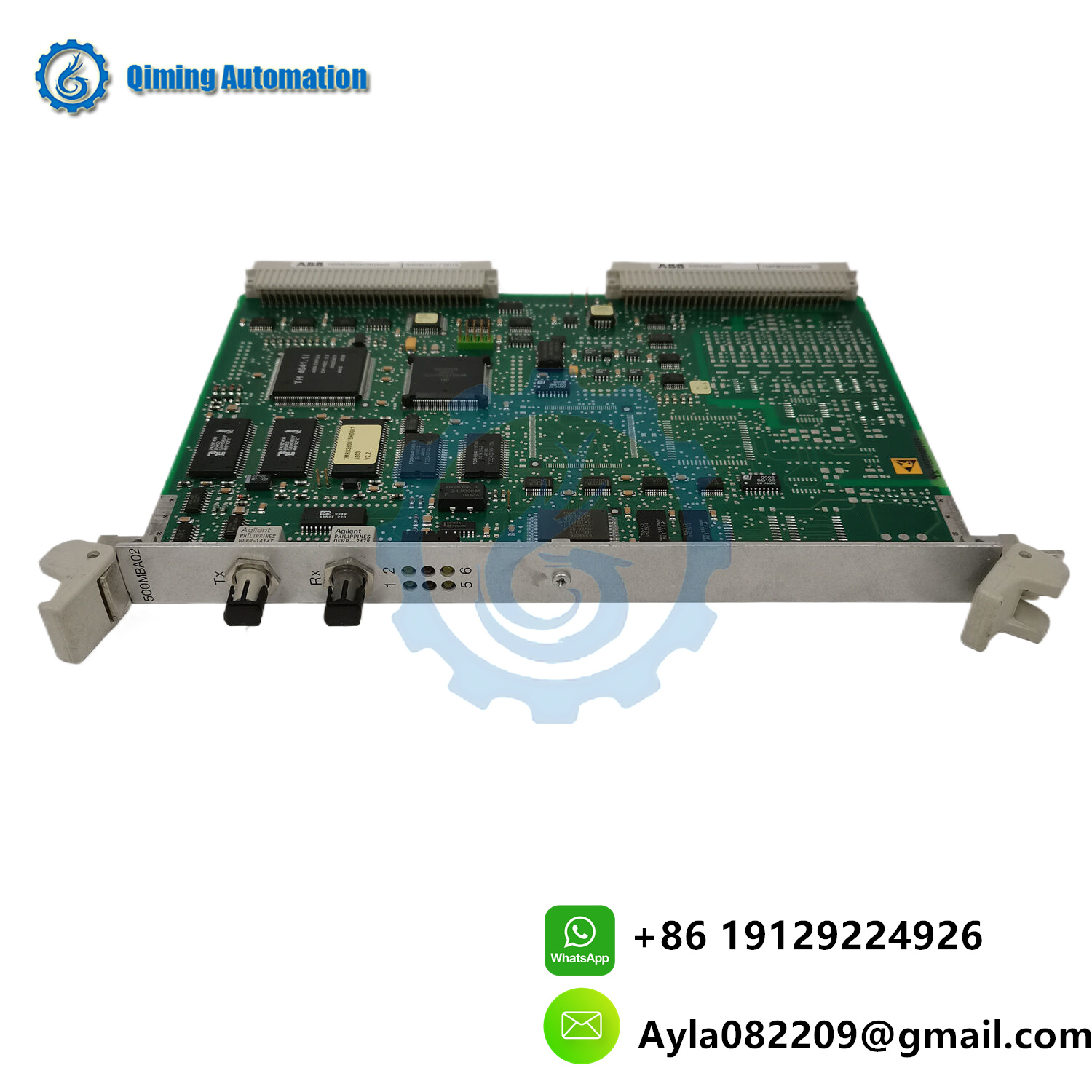

ABB 500MBA02: Product Overview
The 500MBA02 is a Multifunction Busbar Protection Module from ABB’s Relion® 500 series, designed for high-speed, selective protection of busbars in substations and industrial power systems. This advanced relay ensures rapid fault detection and isolation to prevent cascading grid failures, while supporting seamless integration with IEC 61850-based automation systems. It is widely deployed in transmission substations, data centers, and critical infrastructure to enhance grid reliability, minimize downtime, and comply with international standards such as IEC 60255 and IEEE C37.90.
Technical Parameters
- Electrical Ratings:
- Rated Voltage: 72.5 kV to 550 kV (system-dependent configuration).
- Current Inputs: 1 A or 5 A AC (configurable for phase/neutral).
- Auxiliary Supply: 24–250 V DC or 100–240 V AC (±20%).
- Frequency Range: 16–60 Hz (supports dynamic grid conditions).
- Protection Functions:
- Differential Protection: High-speed busbar differential protection with adaptive restraint logic.
- Overcurrent Backup: Phase and ground overcurrent protection (DT/IDMT curves).
- Breaker Failure Protection (BFP): Trips backup breakers on primary breaker failure.
- Arc Flash Detection: Optional integration with arc sensors for fast fault quenching.
- Communication & Integration:
- Protocols: IEC 61850 (GOOSE, MMS, SV), IEC 60870-5-103/104, DNP3.
- Ports: Dual Ethernet (RJ45), fiber-optic (ST/LC), and RS485.
- Cybersecurity: TLS 1.3 encryption, role-based access control (RBAC), and audit logging.
- Environmental Specifications:
- Operating Temperature: -40°C to +85°C (extended range for harsh environments).
- Humidity: 5–95% (non-condensing).
- Certifications: IEC 60255, IEEE 1613 (substation hardening), UL 508, CE.
- Mechanical Design:
- Mounting: 19-inch rack or panel-mounted.
- Dimensions: 177 x 132 x 155 mm (compact for high-density installations).
Key Functions
- High-Speed Busbar Protection:
- Detects and isolates internal/external busbar faults within 1–2 cycles using current differential principles.
- Adaptive logic to avoid maloperation during CT saturation or external faults.
- Zone-Selective Interlocking (ZSI):
- Coordinates with downstream relays to ensure selective tripping and minimize outage scope.
- Automation & Control:
- Auto-Reclosing: Configurable for busbar restoration after transient faults.
- Synchrocheck: Validates voltage, phase, and frequency before closing breakers.
- Monitoring & Diagnostics:
- Real-Time Measurements: Displays phase currents, differential currents, and busbar voltages.
- Disturbance Recorder: Stores 64+ fault records in COMTRADE format.
- Self-Testing: Continuous monitoring of hardware health and communication links.
- Flexible Logic Customization:
- Programmable logic via ABB PCM600 for custom automation sequences (e.g., load shedding).
System Applications
- Transmission Substations:
- Protects single or double busbar configurations in 110–550 kV substations.
- Integrates with ABB Relion® 650 series relays for unified substation automation.
- Industrial Power Networks:
- Safeguards busbars in steel mills, petrochemical plants, and data centers.
- Coordinates with feeder protection relays via IEC 61850 GOOSE messaging.
- Renewable Energy Integration:
- Ensures grid stability in solar/wind farms with high penetration of inverter-based resources.
- Supports dynamic fault current management in weak grid conditions.
- Microgrids & Smart Cities:
- Enables islanding detection and fast busbar restoration in decentralized grids.
Configuration & Tools
- Software: Configured via ABB PCM600 for protection settings, logic design, and firmware updates.
- Cybersecurity: Complies with IEC 62351 standards, including digital certificates and intrusion detection.
Advantages
- Ultra-Fast Operation: Trips within 8–12 ms for critical busbar faults.
- Adaptive Algorithms: Self-adjusts to varying CT ratios and system topologies.
- Scalability: Modular design supports future expansions (e.g., arc flash add-ons).
