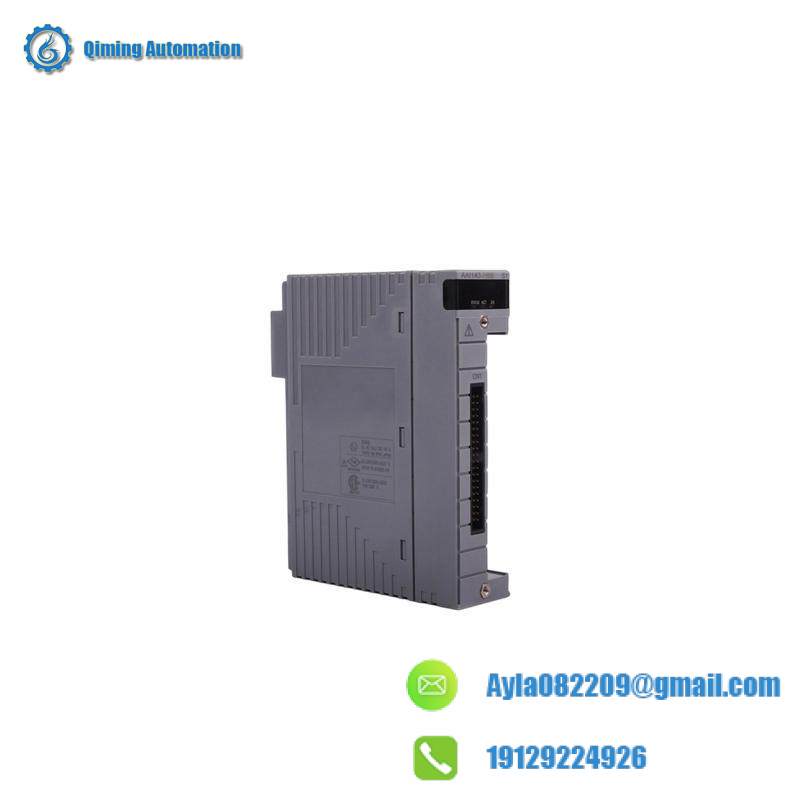

YOKOGAWA AAI143-H50 Industrial Input Module

YOKOGAWA AAI143-H50 Industrial Input Module

Performance and Applications

The Yokogawa AAI143-H50 Analog Input Module is engineered for intrinsically safe industrial environments, providing high-performance isolation and reliable 16-channel signal transmission. It supports HART protocol for advanced digital communication, ensuring precise analog input for 4-20 mA signals in critical applications like process monitoring and control systems.

For expert consultation on this product, contact us via WhatsApp now.

Technical Parameters and Dimensions

• Module Type: Analog Input Module
• Channels: 16-channel
• Signal Range: 4 to 20 mA
• Input Resistance: 250 Ω + voltage drop (max 3V) in input protection circuit
• Output Response Time: 30 ms maximum
• Isolation: High-performance isolation barrier
• Withstand Voltage: 2 kV AC (between output signal lines and system)
• Allowable Input Current: 24 mA
• Current Consumption: 230 mA at 5V DC, 540 mA at 24V DC
• Connectivity: Pressure clamp terminals, MIL connector cables, dedicated cables
• Dimensions: Standard industrial form factor for easy integration (exact dimensions available upon request)

Application Fields

This module excels in demanding industrial sectors such as oil and gas refineries, chemical processing plants, power generation facilities, and factory automation systems. It is ideal for applications requiring intrinsically safe analog input for critical monitoring, including pressure, temperature, and flow control in hazardous environments.
