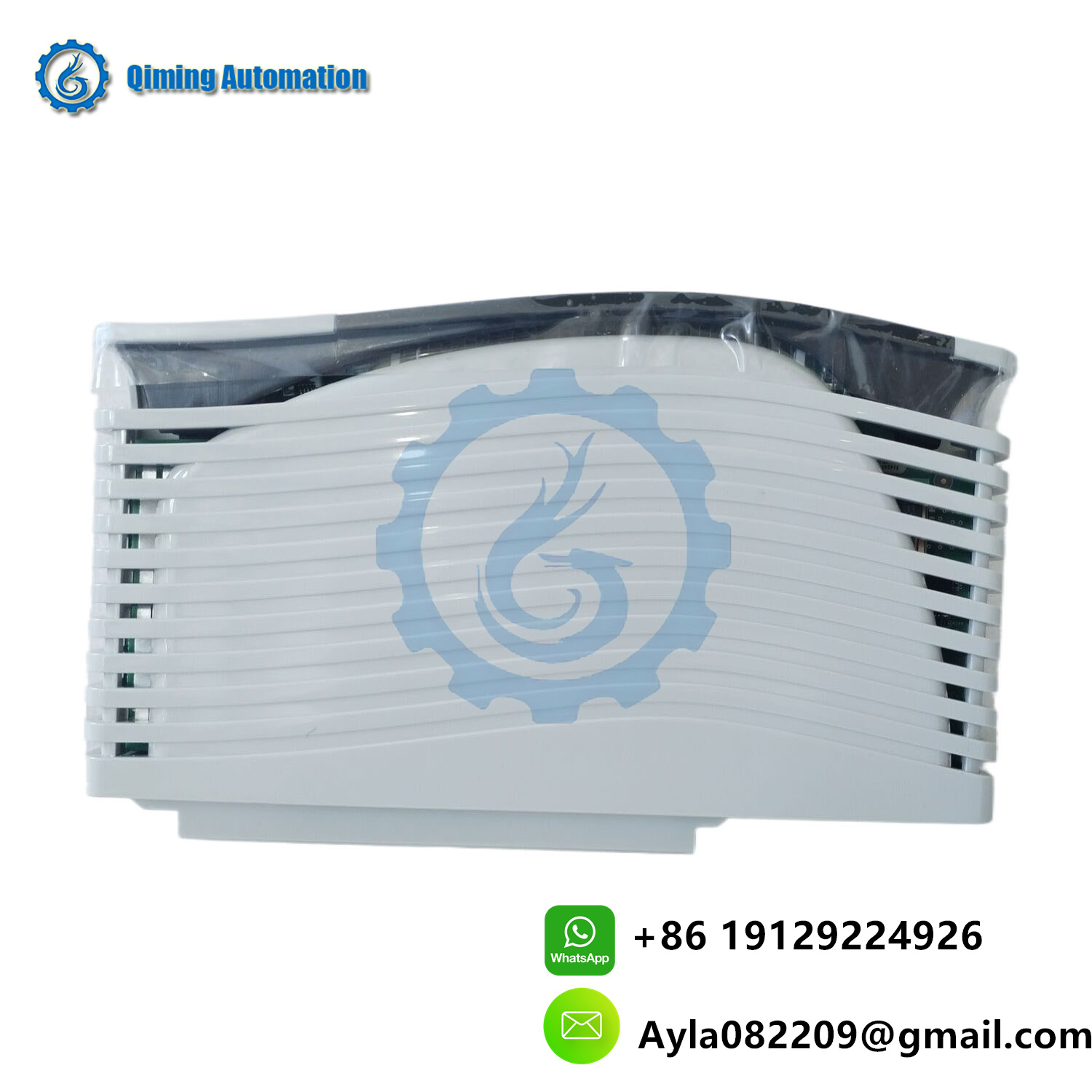

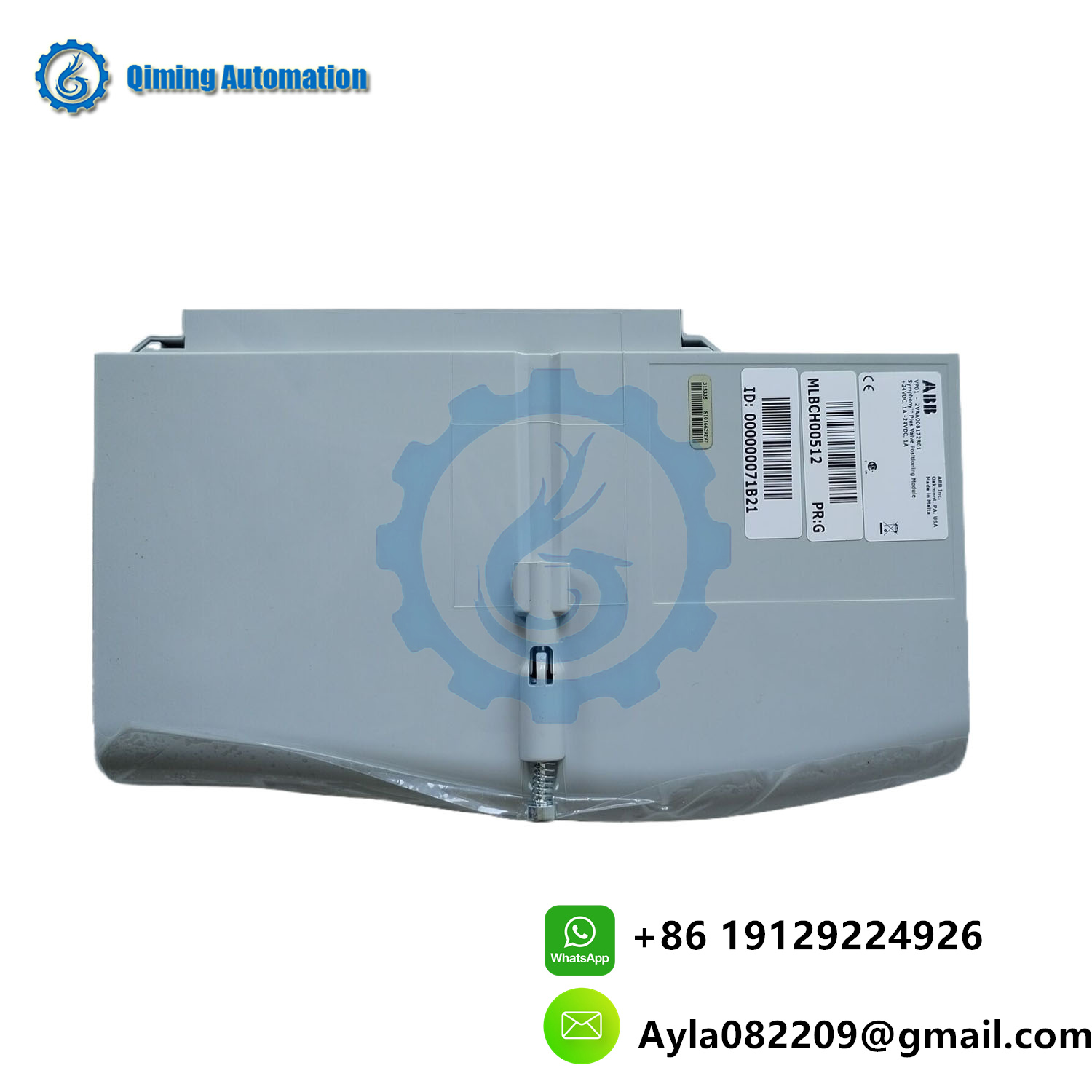

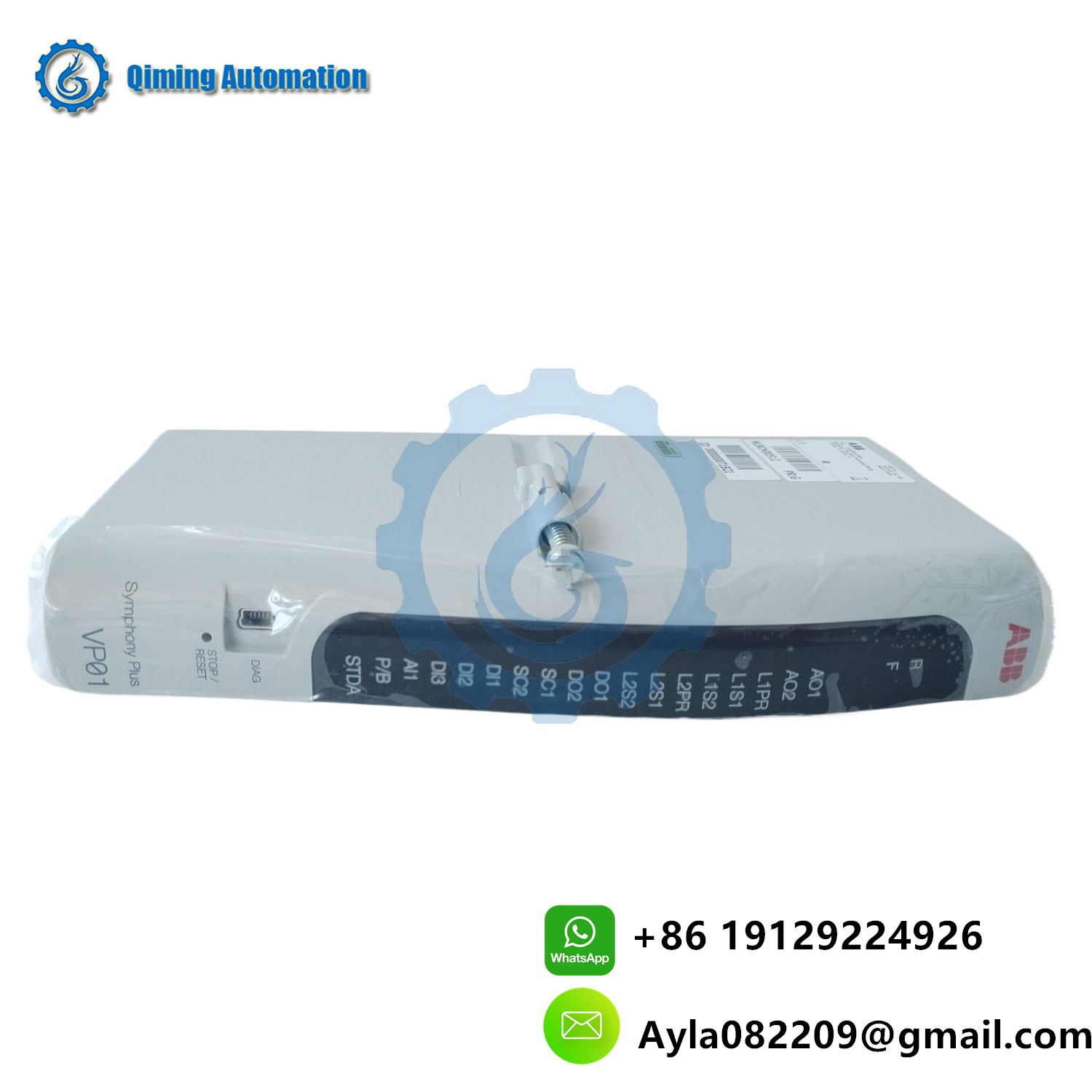

Here’s a detailed and visually organized overview of the ABB VP01 2VAA008172R01, a high-performance voltage protection relay designed for industrial and utility power systems. This response uses modern formatting to highlight technical specifications, core functionalities, and innovative features.
⚡ ABB VP01 2VAA008172R01: At a Glance
|
Category
|
Highlights
|
|---|---|
|
Primary Role
|
Voltage monitoring & protection for grids, motors, and critical equipment.
|
|
Key Innovation
|
Adaptive voltage thresholds, arc flash detection, and IoT-ready connectivity.
|
|
Target Applications
|
Industrial plants, renewable energy systems, substations, and data centers.
|
🔧 Technical Specifications
1. Electrical Parameters
|
Parameter
|
Specification
|
|---|---|
|
Voltage Input
|
100–690V AC (phase-to-phase), 50/60 Hz (±10%).
|
|
Input Channels
|
3x voltage inputs (L1, L2, L3) + 1x neutral (optional).
|
|
Measurement Accuracy
|
±0.5% of full scale (23°C), ±1.0% over full temperature range.
|
|
Frequency Range
|
45–65 Hz (adjustable for grid synchronization).
|
2. Protection Functions
|
Function
|
Description
|
|---|---|
|
Over/Undervoltage
|
Adjustable trip thresholds with time-delay (IDMT/DT curves).
|
|
Phase Imbalance
|
Detects >5% imbalance (configurable for motor protection).
|
|
Voltage Unbalance
|
Monitors negative-sequence voltage for grid stability.
|
|
Arc Flash Mitigation
|
Fast tripping (<15 ms) to reduce arc energy (optional feature).
|
3. Communication & Interfaces
|
Interface
|
Protocols & Features
|
|---|---|
|
Ethernet
|
2x 10/100 Mbps ports (IEC 61850, Modbus TCP, DNP3.0).
|
|
Serial Port
|
RS-485 (Modbus RTU, IEC 60870-5-104).
|
|
USB
|
Local configuration and firmware updates.
|
|
Digital I/O
|
8x programmable inputs/outputs (24V DC, 0.5A).
|
4. Environmental & Compliance
|
Parameter
|
Specification
|
|---|---|
|
Operating Temp.
|
-40°C to +85°C (extended industrial range).
|
|
Humidity
|
5–95% (non-condensing).
|
|
Certifications
|
IEC 60255, UL 508, CE, IEEE 1613 (substation hardening).
|
|
Protection Class
|
IP40 (front panel), IP20 (enclosure).
|
🚀 Core Functionalities
1. Adaptive Voltage Protection
- Dynamic Thresholds: Auto-adjusts trip settings based on load profiles (e.g., peak vs. off-peak).
- Harmonics Analysis: Monitors THD (Total Harmonic Distortion) up to 25th order.
2. Cybersecurity & Reliability
- Secure Communication: TLS 1.3 encryption, role-based access control, and secure boot.
- Redundancy: Dual Ethernet ports with PRP/HSR support for zero-downtime networks.
3. Edge Intelligence
- Local Logging: Stores 10,000+ events with 1 ms resolution (exportable via USB/cloud).
- Predictive Alerts: Flags voltage sag/swell trends for preventive maintenance.
4. User Interface
- LCD Display: 4-line graphical interface with real-time voltage waveforms.
- Web HMI: Remote access via HTTPS for configuration and diagnostics.
🌍 Application Scenarios
|
Industry
|
|
|---|---|
|
Manufacturing
|
Protects CNC machines from voltage fluctuations in unstable grids.
|
|
Solar/Wind Farms
|
Ensures grid-code compliance during renewable energy feed-in.
|
|
Data Centers
|
Monitors UPS input/output voltages to prevent downtime.
|
|
Substations
|
Backup protection for transformers and busbars (IEC 61850 compliance).
|
✅ Why Choose the ABB VP01 2VAA008172R01?
- Future-Proof Design: Supports edge computing and cloud integration (ABB Ability™).
- Modularity: Expandable with I/O modules (e.g., 2VAA008173R01 for current protection).
- Global Standards: Meets IEC, IEEE, and ANSI requirements for cross-industry deployment.
