UNITROL1010 3BHE035301R0004 ABB | UNITROL® 1010 | Digital Automatic Voltage Regulator (AVR)

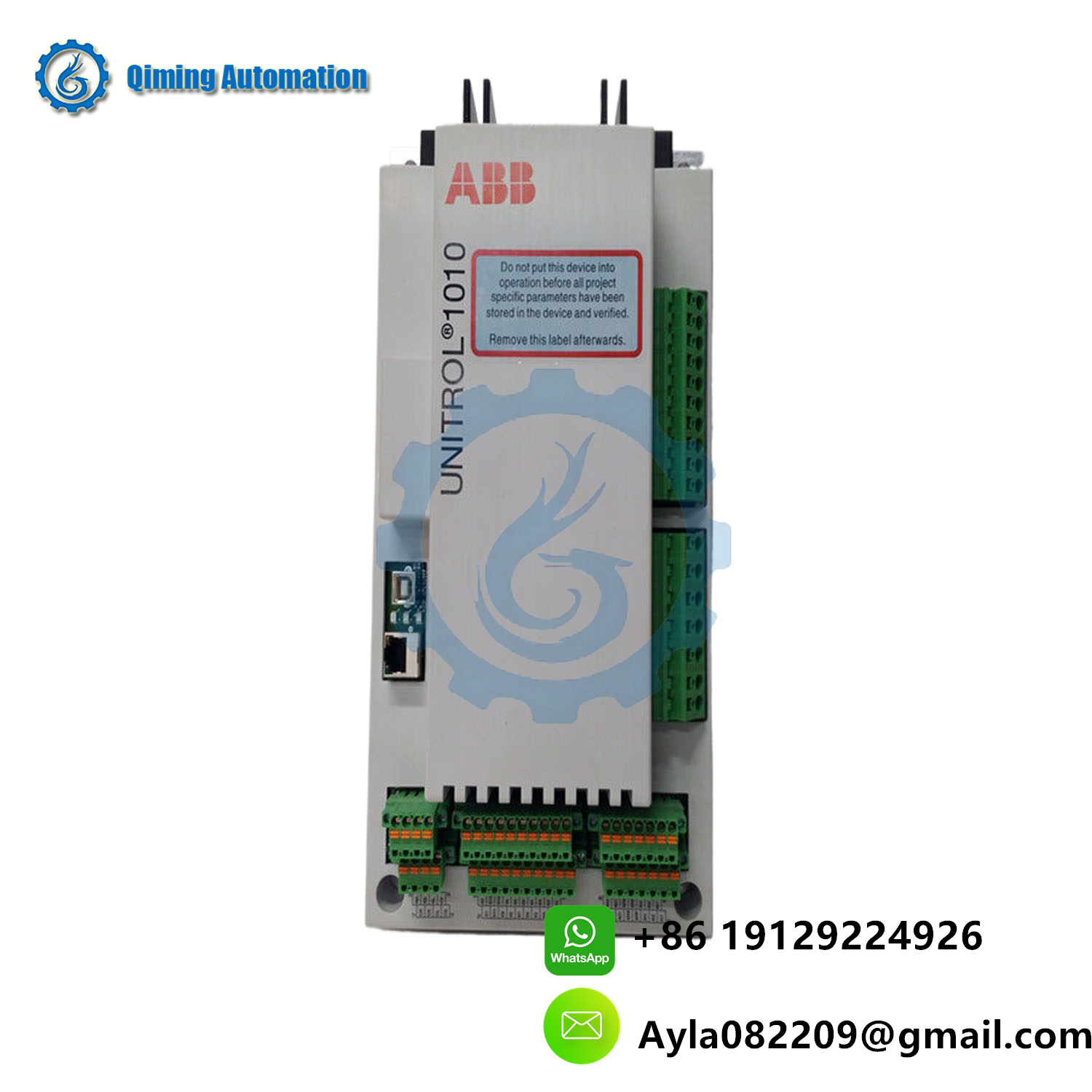

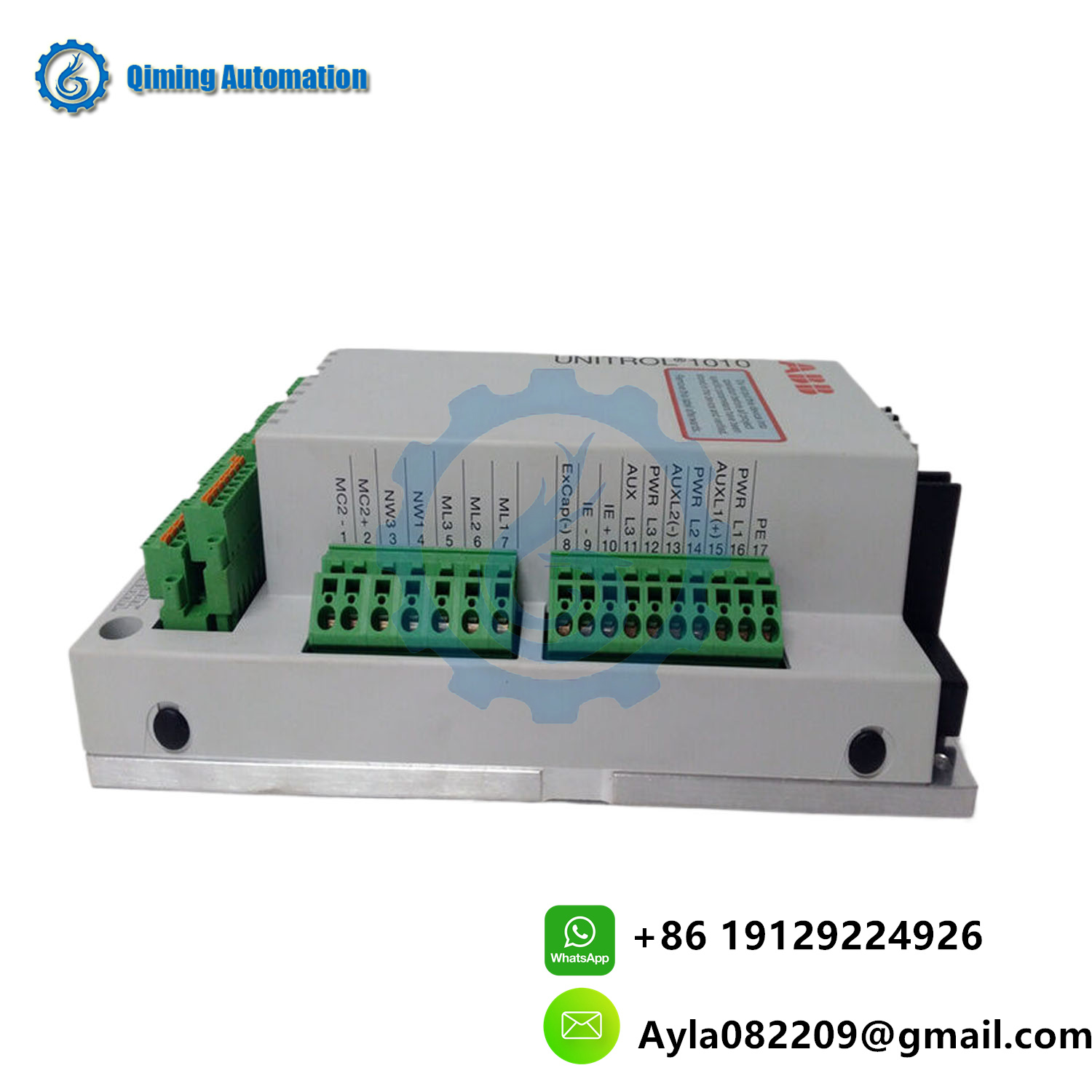

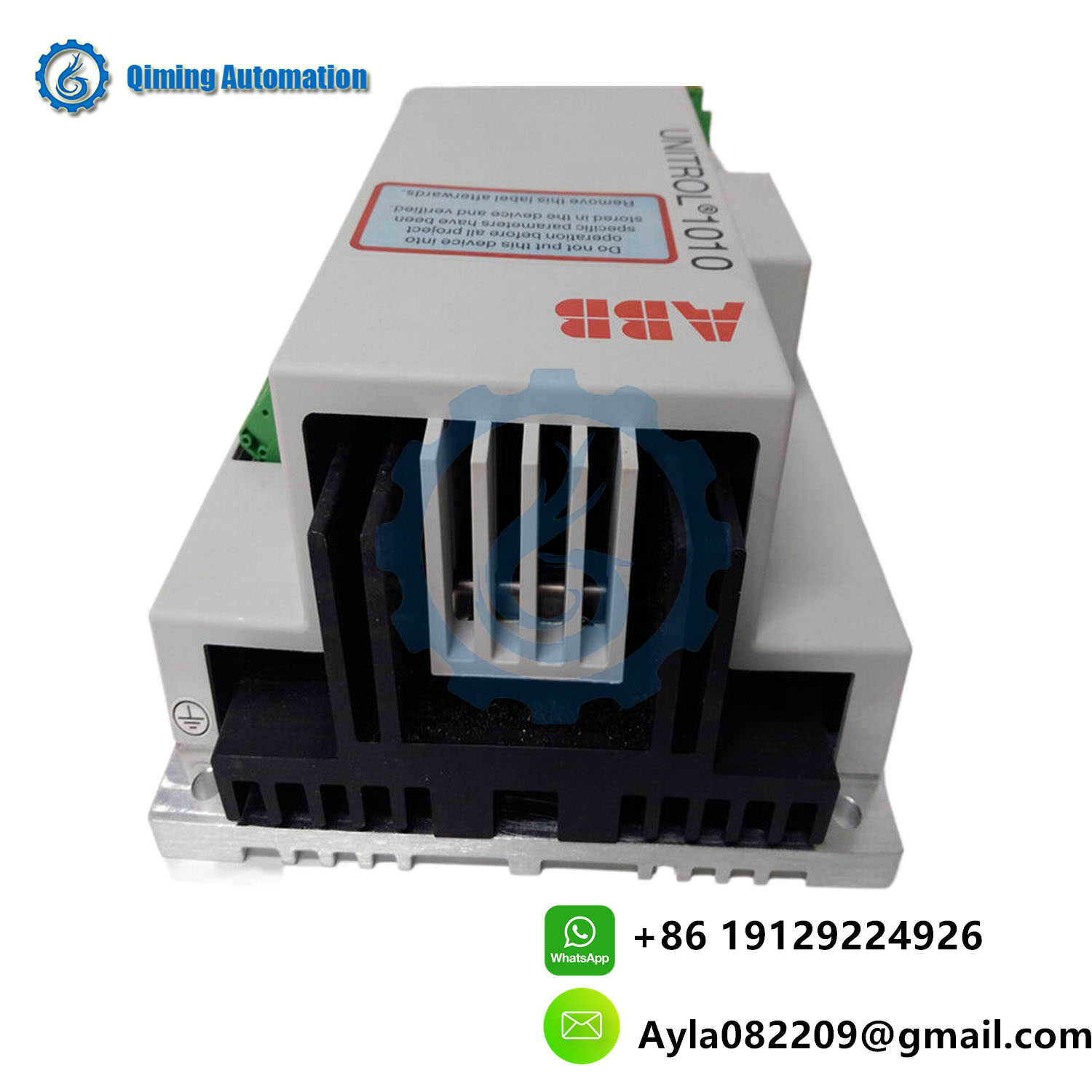

ABB UNITROL® 1010 3BHE035301R0004: Product Overview

The UNITROL® 1010 3BHE035301R0004 is a digital automatic voltage regulator (AVR) designed by ABB for precise control of synchronous generators and industrial power systems. This advanced controller ensures stable voltage and frequency regulation, even under fluctuating load conditions, making it ideal for standalone power generation, grid-parallel operations, and critical industrial processes. It is widely deployed in power plants, marine vessels, oil & gas facilities, and renewable energy systems to optimize generator performance and maintain grid compliance.

Technical Parameters

1. Electrical Specifications:
   • Input Voltage: 90–264 V AC (auxiliary supply), 50/60 Hz.
   • Generator Voltage: 100–690 V AC (phase-to-phase), configurable for 3-phase or single-phase systems.
   • Frequency Range: 40–70 Hz (adjustable).
   • Regulation Accuracy: ±0.5% of set voltage, ±0.1 Hz frequency stability.
2. Control & Interfaces:
   • Analog Inputs: 4–20 mA, 0–10 V DC (for external sensors or PLC signals).
   • Digital I/O: 8 programmable binary inputs, 6 relay outputs (trip, alarm, control).
   • Communication Protocols: Modbus RTU/TCP, CANopen, IEC 61850 (optional).
   • Display: LCD interface with real-time data visualization and menu-driven configuration.
3. Protection Features:
   • Over/Under Voltage: Adjustable thresholds and time delays.
   • Over/Under Frequency: Fast-acting frequency protection.
   • Loss of Excitation (LOE): Detects field circuit failures.
   • Short-Circuit Protection: Built-in current-limiting logic.
4. Environmental Compliance:
   • Operating Temperature: -25°C to +70°C.
   • Certifications: IEC 60068 (vibration/shock), IEC 61000-6 (EMC), UL 508.

Key Functions

1. Voltage & Frequency Regulation:
   • PID Control: Adaptive algorithms for dynamic load changes.
   • Droop/Isochronous Mode: Supports grid-parallel operation or isolated grids.
   • Soft Start: Ramp-up excitation to avoid mechanical stress during generator startup.
2. Load Sharing & Synchronization:
   • Load Demand Management: Distributes active/reactive power between multiple generators.
   • Synchronization: Auto-sync to grid or other generators via synchroscope logic.
3. Advanced Diagnostics:
   • Real-Time Monitoring: Tracks voltage, current, frequency, power factor, and kW/kVAR.
   • Event Logging: Stores 500+ time-stamped alarms and trip records.
   • Black Start Capability: Restores power without external power sources.
4. Customizable Logic:
   • Programmable Logic Controller (PLC): Embedded logic for custom automation sequences (e.g., load shedding, priority control).

System Applications

1. Power Generation:
   • Controls diesel/gas generators in prime or standby power plants.
   • Manages hydropower turbines and biogas-driven generators.
2. Marine & Offshore:
   • Stabilizes shipboard power systems with variable engine loads.
   • Complies with DNV-GL and ABS marine standards.
3. Industrial Facilities:
   • Ensures uninterrupted power for oil refineries, chemical plants, and data centers.
   • Integrates with ABB System 800xA for centralized control.
4. Renewable Energy:
   • Regulates biomass or landfill gas generators in hybrid renewable systems.
   • Supports microgrids with solar/wind + diesel hybrid configurations.

Configuration & Tools

• Software: Configured via ABB DriveWare® or Control Panel Interface for parameter tuning, logic editing, and firmware updates.
• Cybersecurity: Role-based access control (RBAC) and encrypted communication protocols.

Advantages

• High Reliability: Redundant control loops and fault-tolerant design.
• Energy Efficiency: Optimizes fuel consumption through precise load matching.
• Scalability: Compatible with ABB’s UNITROL® 5000 series for large-scale power plants.
