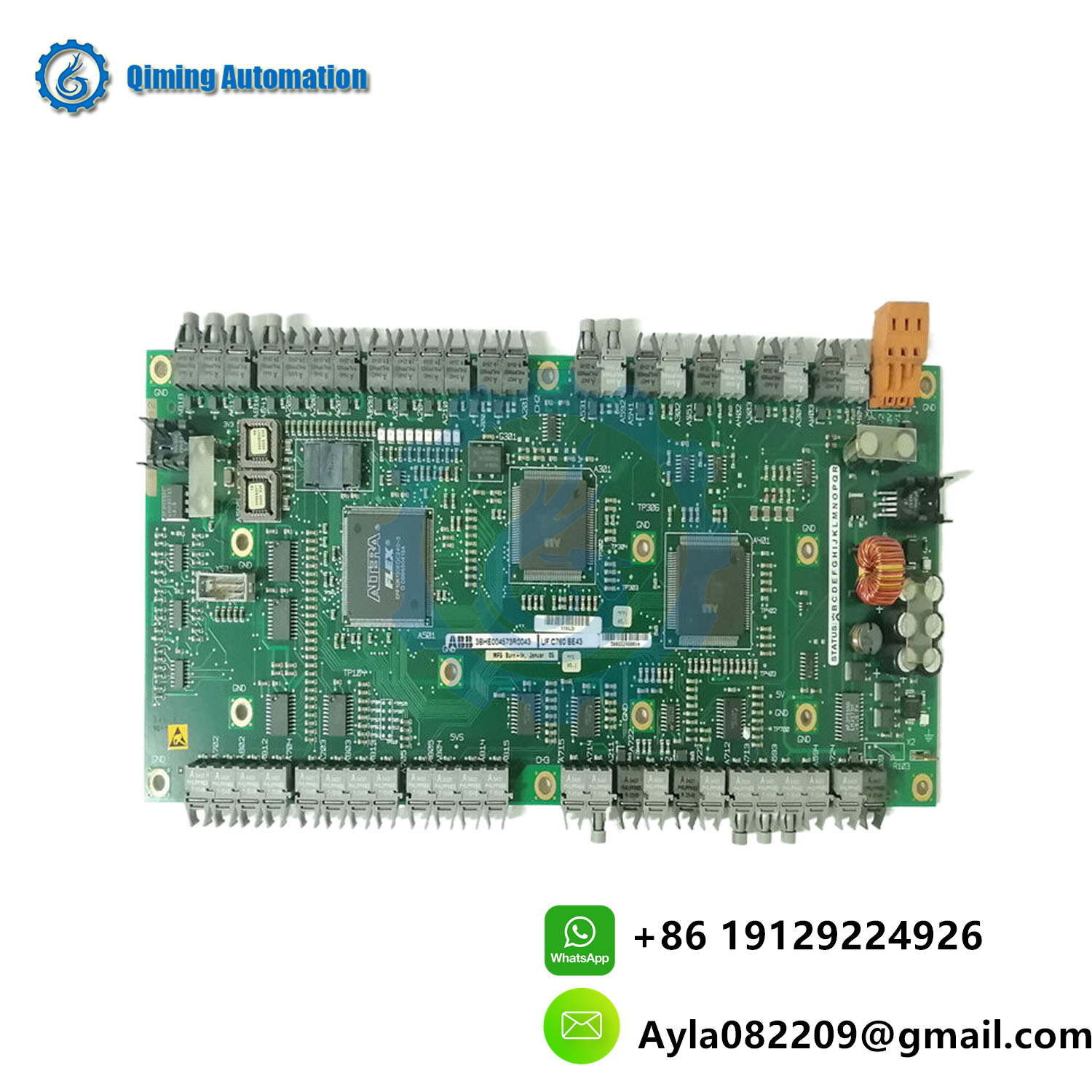

UFC760BE42 3BHE004573R0042 ABB communication module

The UFC760BE42 3BHE004573R0042 is a high-end control and communication module developed by ABB for use in advanced industrial automation and distributed control systems (DCS). Part of ABB’s AC 800M controller family, this module serves as a critical interface between controllers, field devices, and higher-level supervisory systems. It is designed to deliver robust performance, seamless integration, and real-time data exchange in mission-critical applications such as power generation, oil and gas, and process industries.

Key Features

1. Advanced Control Capabilities
   • Acts as a communication processor for ABB’s AC 800M controllers, enabling real-time control logic execution and data handling.
   • Supports complex automation tasks, including sequence control, regulatory control, and safety-critical operations.
2. Redundant Architecture
   • Designed for high availability with redundancy support (e.g., hot standby configurations) to ensure uninterrupted operation in 24/7 industrial environments.
3. Multi-Protocol Communication
   • Integrates with fieldbus systems (e.g., PROFIBUS DP, Modbus TCP/IP) and industrial Ethernet protocols (EtherNet/IP, OPC UA) for seamless connectivity to sensors, actuators, and SCADA systems.
   • Compatible with ABB’s 800xA system for unified process and power automation.
4. High-Speed Data Processing
   • Optimized for rapid data exchange between controllers and I/O subsystems, minimizing latency in critical control loops.
5. Robust Diagnostics and Security
   • Built-in diagnostics for monitoring module health, network status, and communication errors.
   • Cybersecurity features compliant with IEC 62443 standards to protect against unauthorized access and data breaches.
6. Scalable Design
   • Supports modular expansion with additional I/O modules and communication interfaces, adapting to evolving system requirements.

Technical Specifications

• Processor: High-performance 32-bit RISC processor.
• Memory: Flash memory for firmware storage and RAM for real-time data processing.
• Communication Ports:
  • Ethernet: 2x 10/100 Mbps ports for network redundancy.
  • Fieldbus: PROFIBUS DP, Modbus RTU/TCP (varies by configuration).
• Power Supply: 24 V DC (via controller backplane).
• Operating Temperature: -25°C to +70°C (-13°F to +158°F).
• Certifications: CE, UL, IEC 61131-2, and industrial EMC standards.
• Redundancy: Supports hot-swappable redundancy for critical applications.

Applications

The UFC760BE42 module is deployed in industries requiring precise control and high reliability:

• Power Plants: Turbine control, grid synchronization, and boiler management.
• Oil & Gas: Pipeline monitoring, refinery process control, and safety systems (SIS).
• Chemical Processing: Batch control, reactor management, and PID loop regulation.
• Water Management: Pump station automation and flood control systems.
• Manufacturing: Integration with PLCs and robotics for production line optimization.

Compatibility

• Controllers: Designed for ABB’s AC 800M series (e.g., PM861, PM864).
• Systems: Fully compatible with ABB’s 800xA Extended Automation System and Symphony Plus DCS.
• I/O Modules: Interfaces with ABB’s S800 I/O and S900 I/O series for scalable field connectivity.

Installation & Configuration

1. Mounting: Installed in the AC 800M controller rack via a dedicated slot.
2. Wiring: Connect Ethernet and fieldbus cables to designated ports.
3. Software Setup: Configured using ABB’s Control Builder M engineering tool for logic programming, network settings, and redundancy management.
4. Diagnostics: Monitor performance via ABB’s 800xA Operator Workplace or third-party HMI/SCADA systems.

Ordering Information

• Part Number: UFC760BE42 3BHE004573R0042
• Manufacturer: ABB
• Series: AC 800M Controller Family (Communication Processor Module)

Advantages

• High Availability: Redundant design minimizes downtime in critical operations.
• Future-Proof: Supports Industry 4.0 and IIoT integration through OPC UA and Ethernet/IP.
• Interoperability: Works with multi-vendor systems, reducing integration complexity.
• Cybersecurity: Protects critical infrastructure from evolving cyber threats.

Notes

• For detailed configuration guidelines, firmware updates, or troubleshooting, refer to the ABB AC 800M Hardware Manual (Document ID: 3BSE027902-600).
• Contact ABB Technical Support for assistance with system integration or redundancy setup.
