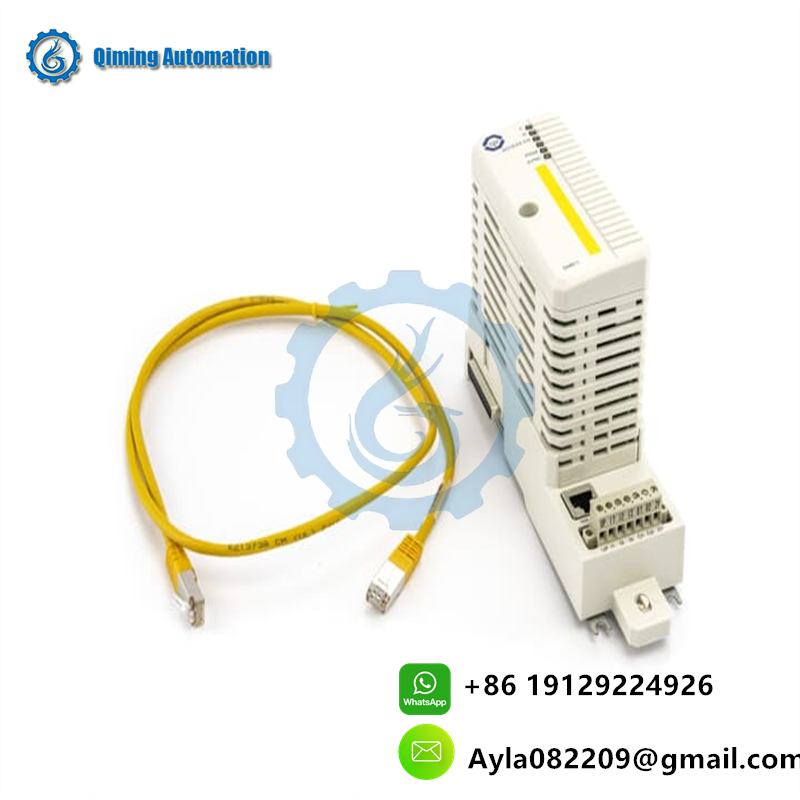

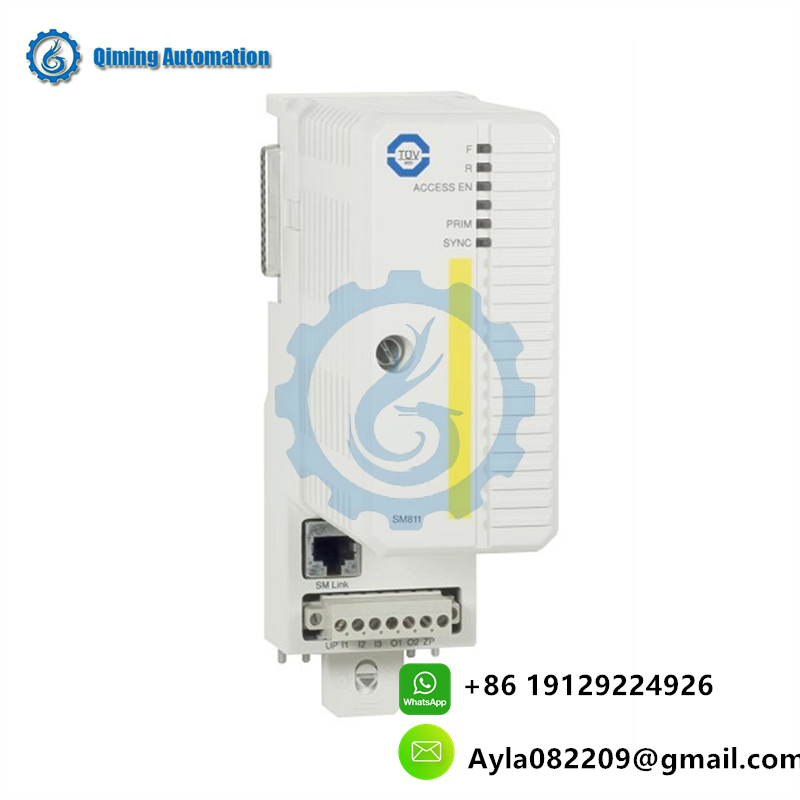

SM811K01 3BSE018173R1 ABB Signal conditioning module

The SM811K01 3BSE018173R1 is a high-performance signal conditioning module manufactured by ABB, a global leader in industrial automation and power technologies. This module is part of ABB’s S800 I/O family, designed for integration into distributed control systems (DCS) and process automation applications. It plays a critical role in ensuring reliable signal processing and communication between field devices (e.g., sensors, actuators) and central control systems.

Key Features

1. Signal Conditioning
   • Converts, isolates, and amplifies analog or digital signals from field devices to ensure compatibility with control systems.
   • Supports various signal types, including 4–20 mA, 0–10 V, thermocouple (TC), resistance temperature detector (RTD), and digital signals.
2. Galvanic Isolation
   • Provides electrical isolation between field devices and control systems, protecting against ground loops, noise, and voltage surges.
3. High Accuracy
   • Delivers precise signal conversion with minimal drift, ensuring reliable data acquisition and process control.
4. Modular Design
   • Part of ABB’s S800 I/O series, allowing flexible configuration and easy integration into existing systems via S800 I/O bases (e.g., 3BSE008514R1).
5. Robust Construction
   • Built for harsh industrial environments, with resistance to electromagnetic interference (EMI), temperature fluctuations, and vibrations.
6. Diagnostic Capabilities
   • Includes self-diagnostics and status indicators (LEDs) for real-time monitoring of module health and signal integrity.

Technical Specifications

• Input/Output Channels: Typically 8 channels, configurable for analog or digital signals.
• Power Supply: 24 V DC (via I/O base).
• Isolation Voltage: Up to 1500 V AC between field and system sides.
• Operating Temperature: -25°C to +70°C (-13°F to +158°F).
• Certifications: Complies with international standards for industrial safety and EMC (e.g., CE, UL).

Applications

The SM811K01 module is widely used in industries requiring precise signal handling and robust automation, such as:

• Oil & Gas: Monitoring pressure, temperature, and flow in pipelines.
• Power Generation: Control of turbines and grid systems.
• Chemical Processing: Signal conditioning for reactors and safety systems.
• Manufacturing: Integration into PLC/DCS for process automation.

Compatibility

• Designed for use with ABB’s S800 I/O system and compatible with AC 800M and AC 800PEC controllers.
• Interfaces with ABB’s Industrial IT/800xA or Advant Controller platforms.

Installation & Maintenance

• Mounts onto an S800 I/O base unit (e.g., 3BSE008514R1) via a slide-in mechanism.
• Hot-swappable design enables replacement without shutting down the entire system.
• Configuration via ABB’s engineering tools (e.g., Control Builder or Compact Control Builder).

Ordering Information

• Part Number: SM811K01 3BSE018173R1
• Manufacturer: ABB
• Series: S800 I/O

Advantages

• Reliability: Ensures stable signal transmission in critical applications.
• Scalability: Easily expandable with additional S800 I/O modules.
• Cost-Effective: Reduces downtime and maintenance costs through robust design.
