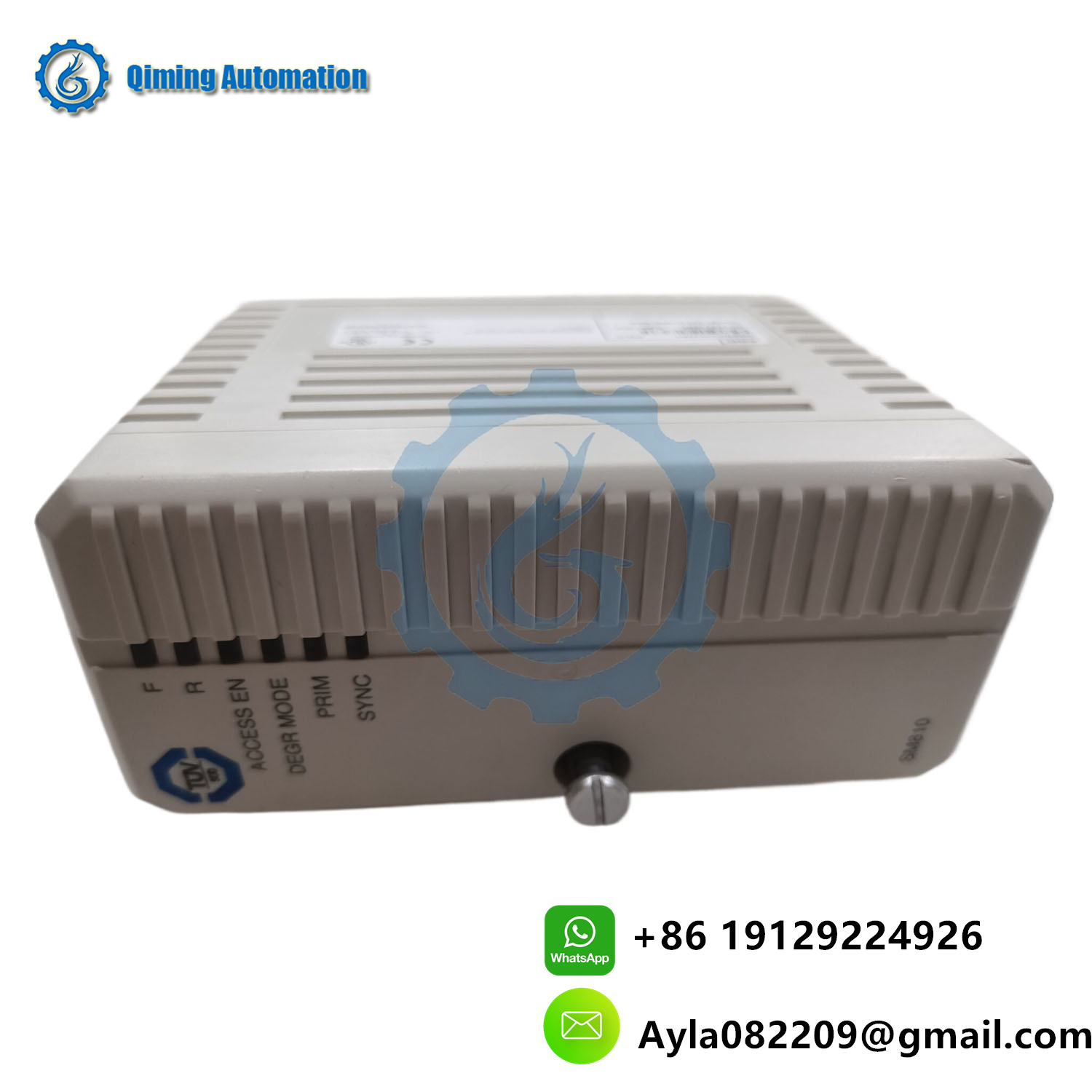

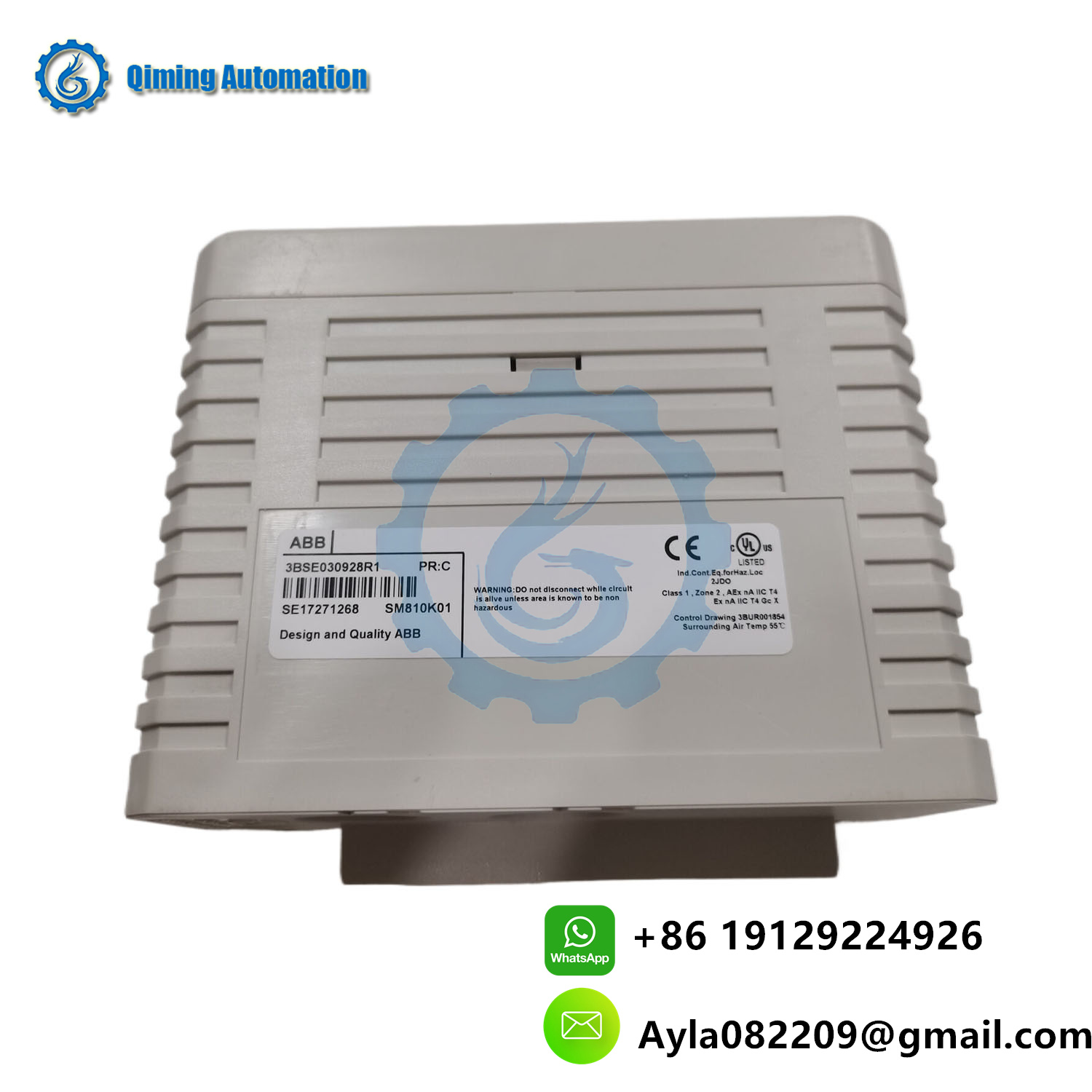

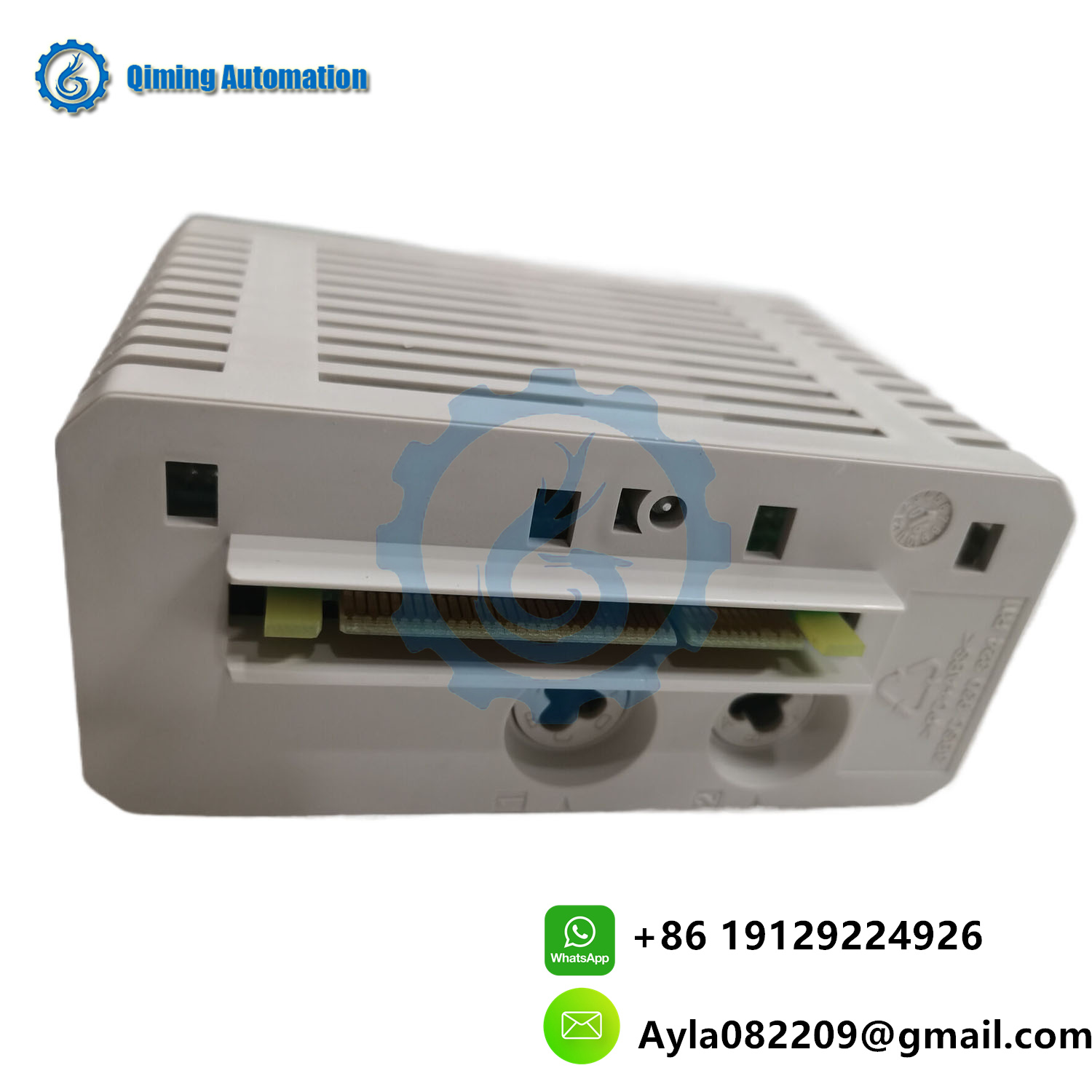

SM810K01 3BSE030928R1 ABB Signal conditioning and interface module

ABB SM810K01 3BSE030928R1: Product Overview

The SM810K01 3BSE030928R1 is a signal conditioning and interface module from ABB’s S800 I/O series, designed for integration into industrial automation and process control systems. This module acts as a critical link between field devices (e.g., sensors, actuators) and ABB’s AC 800M or System 800xA controllers, enabling precise signal conversion, isolation, and diagnostics. It is widely used in industries such as oil and gas, power generation, and chemical processing to ensure reliable data acquisition and control loop stability.

Technical Parameters

1. Electrical Specifications:
   • Input/Output Channels: 8 channels (configurable as analog or digital signals).
   • Signal Ranges:
     • Analog: 4–20 mA, 0–10 V DC, ±10 V DC.
     • Digital: 24 V DC (sinking/sourcing).
   • Isolation: 1500 V AC between field and system sides.
   • Accuracy: ±0.1% of full scale (analog), ±1 µs response time (digital).
2. Communication & Integration:
   • Bus Interface: PROFIBUS DP via S800 I/O Carrier Module.
   • Protocol Support: Modbus RTU, IEC 60870-5-104 (optional).
   • Update Rate: Configurable scan rate up to 1 kHz.
3. Power Supply:
   • Voltage: 24 V DC (±10%).
   • Power Consumption: 2.5 W (typical).
4. Environmental Compliance:
   • Operating Temperature: -25°C to +70°C.
   • Humidity: 5–95% (non-condensing).
   • Certifications: CE, UL, IEC 61131-2, IEC 61326 (EMC).

Key Functions

1. Signal Conditioning:
   • Converts field-level analog/digital signals to controller-compatible formats.
   • Provides galvanic isolation to eliminate ground loops and noise interference.
2. Diagnostics & Monitoring:
   • Channel Fault Detection: Open circuit, short circuit, and over-range alarms.
   • LED Indicators: Per-channel status (healthy/fault) and communication activity.
   • Hot-Swappable Design: Replace modules without system downtime.
3. Redundancy & Reliability:
   • Supports redundant configurations for critical control loops.
   • Built-in surge protection (IEC 61000-4-5) for harsh industrial environments.
4. Flexible Configuration:
   • Configurable via ABB Control Builder or Automation Builder software.
   • Scalable integration with other S800 I/O modules (e.g., AI, AO, DI, DO).

System Applications

1. Process Automation:
   • Interfaces with pressure transmitters, flow meters, and control valves in refineries.
   • Integrates with ABB System 800xA for centralized process control.
2. Power Generation:
   • Monitors turbine vibrations, temperature sensors, and grid synchronization signals.
   • Enhances reliability in combined cycle power plants.
3. Manufacturing:
   • Manages PLC-based automation in automotive assembly or semiconductor fabrication.
   • Supports PROFIBUS DP networks for real-time machine control.
4. Water Treatment:
   • Controls pH sensors, dissolved oxygen analyzers, and pump stations.

Configuration & Tools

• Software:
  • ABB Control Builder: Configures signal ranges, alarms, and communication parameters.
  • Asset Management Tools: Monitors module health in ABB Ability™ platforms.
• Cybersecurity: Complies with IEC 62443 for secure industrial network integration.

Advantages

• High Precision: 16-bit ADC/DAC resolution for accurate signal processing.
• Robust Design: Stainless steel terminals and rugged housing for harsh conditions.
• Interoperability: Compatible with third-party PLCs (e.g., Siemens, Rockwell).
