Performance and Application:

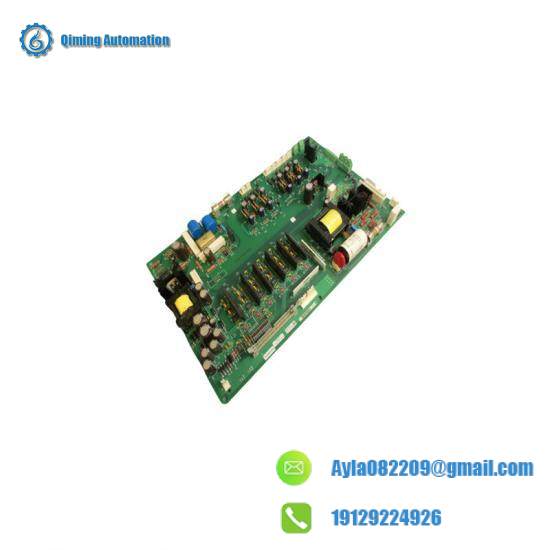

The Rockwell Automation 1336-BDB-SP72DPCB Gate Drive Module delivers exceptional control efficiency for 1336STE motors rated at 480V/250HP. Engineered with robust IP65-rated construction, it ensures reliable operation in harsh industrial environments (-40°C to +85°C). Featuring adjustable output voltage and advanced thermal management, this F Frame unit optimizes energy consumption while meeting CE, UL, CSA, and IECEx safety standards for critical automation systems.
Technical Specifications:
- Manufacturer: Rockwell Automation
- Model: 1336-BDB-SP72DPCB
- Motor Compatibility: 1336STE Motors
- Voltage Rating: 480V AC
- Power Rating: 250HP (186kW)
- Frame Size: F Frame
- Input Frequency: 47-63Hz
- Output Voltage: Adjustable
- Protection Class: IP65 (Dust/Water Resistant)
- Operating Temp: -40°C to +85°C
- Dimensions: 200 × 100 × 50mm (L×W×H)
- Weight: 2.5kg
- Certifications: CE, UL, CSA, IECEx
Application Fields:
Ideal for precision-driven industrial automation including manufacturing conveyors, CNC machinery, heavy-duty pumps, and material handling systems. Excels in applications requiring high-torque motor control under variable loads, particularly in food processing, mining, and automotive production environments where dust/water resistance is critical.
Our Service Commitment:
Guangzhou Qiming Automation Technology Co., Ltd., a certified partner of Bentley Nevada, Honeywell, and ABB, guarantees:
- ✅ 1-Year Comprehensive Warranty
- ⏱️ 24-Hour Global Shipping
- 📦 Adequate Stock for Immediate Dispatch
- 🔍 100% Genuine Products with Traceable Documentation
Contacts:
👩 Ayla
📞 Tel/WeChat: 19129224926
📱 WhatsApp: +86 19129224926
💬 Skype: live:.cid.3d1b1e5747c071eb
✉️ E-mail: Ayla082209@gmail.com
There are no reviews yet.
