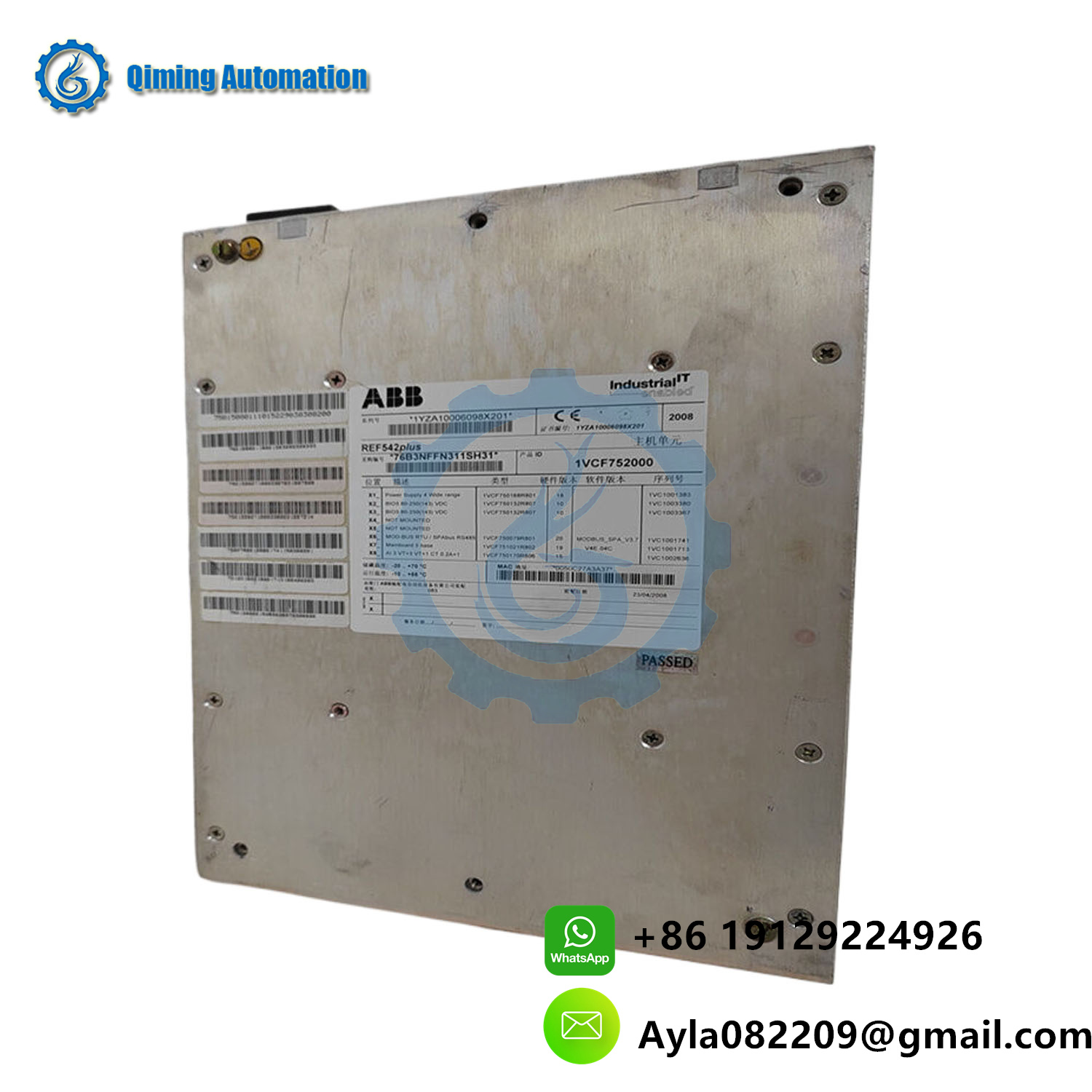

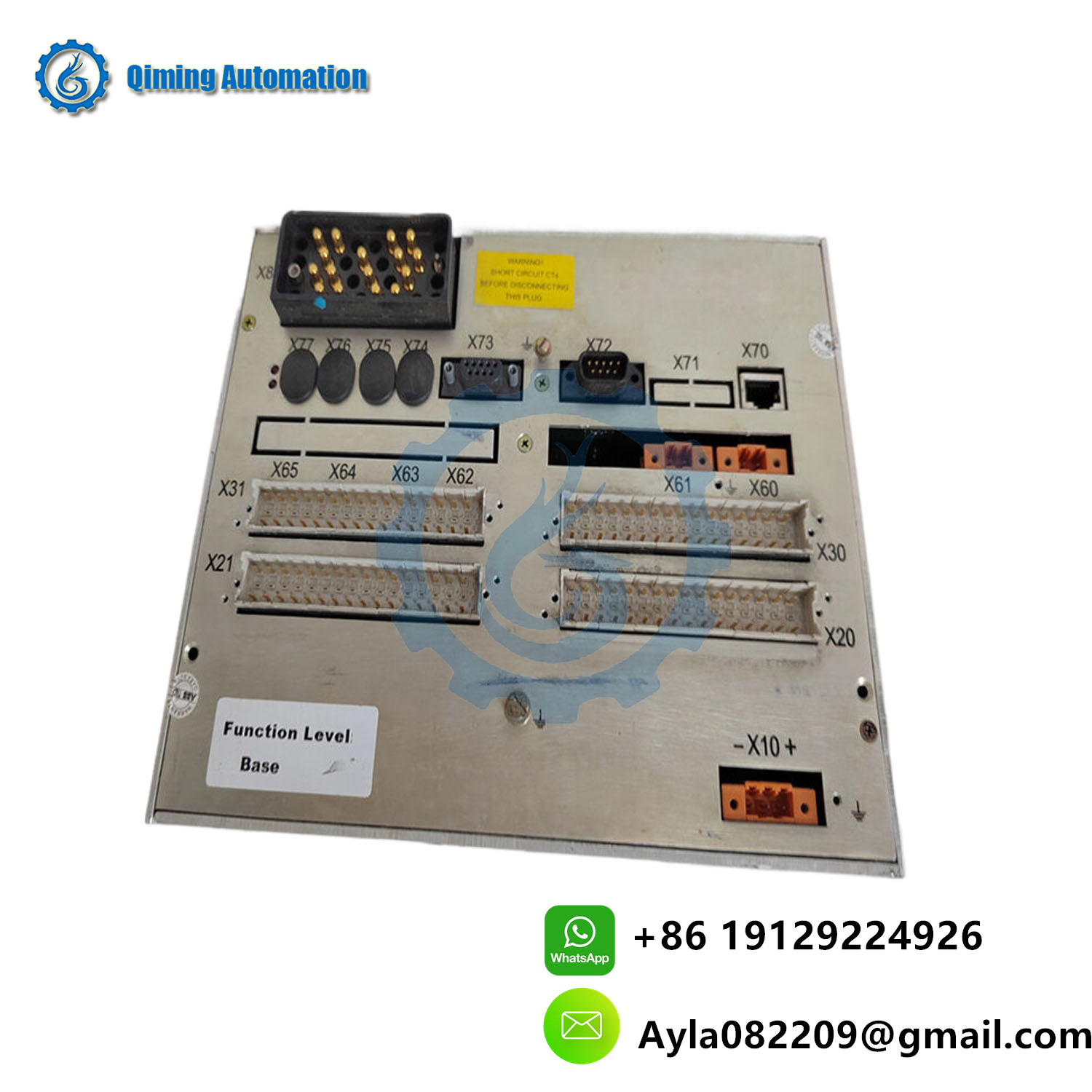

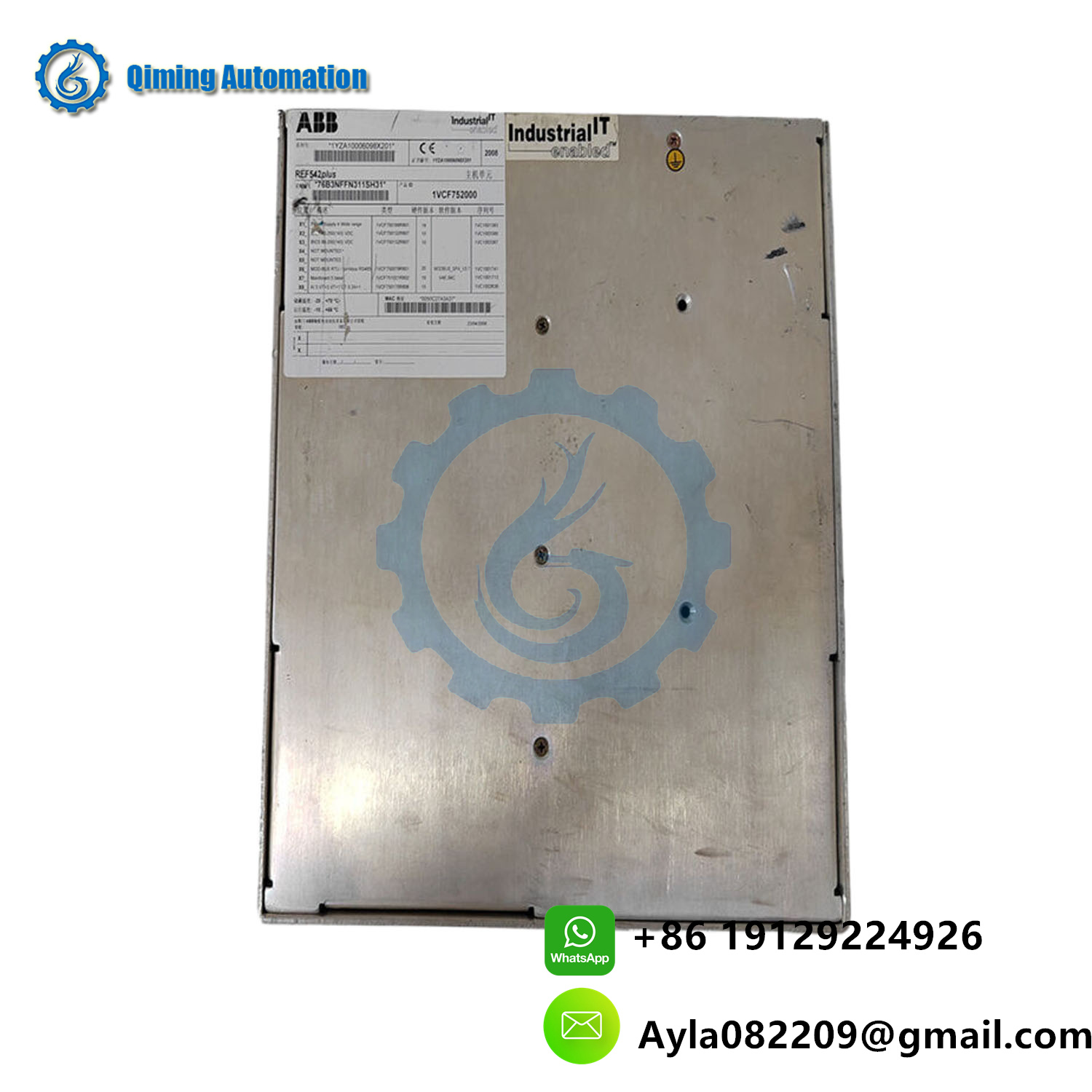

REF542PLUS 1VCF752000 ABB Feeder Protection and Control Relay

REF542PLUS 1VCF752000 (ABB Feeder Protection and Control Relay)

The REF542PLUS 1VCF752000 is a multifunctional protection and control relay from ABB, part of the Relion® product family, designed for medium-voltage (MV) and high-voltage (HV) power distribution systems. It combines advanced protection, automation, and communication capabilities to ensure reliable operation of electrical networks in utilities, industries, and infrastructure applications.

Key Features:

1. Comprehensive Protection Functions:
   • Overcurrent Protection: Defines multiple stages (instantaneous, time-delayed) for phase and earth faults.
   • Directional Power Protection: Detects reverse power flow in generators or grid-tied systems.
   • Motor Protection: Thermal overload, stall prevention, and under/overvoltage protection (configurable for motor applications).
   • Arc Flash Detection: Optional arc protection module to enhance personnel safety.
2. Automation and Control:
   • Programmable Logic (PLC): Customizable logic for automation sequences (e.g., load shedding, breaker control).
   • Remote Operation: Supports remote switching of circuit breakers and disconnectors via SCADA or ABB’s System 800xA.
   • Synchrocheck: Ensures safe synchronization of generators or grid connections.
3. Communication & Integration:
   • Protocol Support: IEC 61850, Modbus RTU/TCP, DNP3, and Profibus DP for seamless integration with substation automation systems.
   • Cybersecurity: Complies with IEC 62443 standards, offering role-based access control and encrypted communication.
   • ABB Ecosystem: Integrates with ABB Relion relays, MicroSCADA, and RTU500 series for unified grid management.
4. User Interface and Diagnostics:
   • LCD Display: Intuitive local interface for configuration, real-time measurements, and event logs.
   • LED Indicators: Visual status alerts for faults, communication, and power supply.
   • Disturbance Recorder: Captures waveform data during faults for post-event analysis.
5. Robust Design:
   • Harsh Environment Ready: Operates in temperatures from -25°C to +70°C and withstands high humidity/vibration.
   • Compact and Modular: DIN-rail or panel-mounted design for flexible installation in switchgear panels.

Technical Specifications:

• Rated Voltage: 24–250 V DC or 100–240 V AC (configurable).
• Current Inputs: Up to 1 A or 5 A (CT secondary ratings).
• Communication Ports: Ethernet, RS-485, and fiber-optic interfaces.
• Certifications: IEC 60255, UL 508, CE, and IEC 61850 Ed.2 (for substation interoperability).
• Ingress Protection: IP20 (standard) or higher with optional enclosures.

Applications:

• Utility Substations: Feeder protection, transformer monitoring, and grid automation.
• Industrial Plants: Motor control centers (MCCs), process automation, and critical load protection.
• Renewable Energy: Protection of solar farms, wind turbines, and grid-connected inverters.
• Infrastructure: Railway traction systems, airports, and data centers requiring high reliability.

Advantages:

• Versatility: Combines protection, control, and metering in a single device, reducing panel space and complexity.
• Cybersecurity: Protects against cyber threats in modern digital substations.
• Energy Efficiency: Optimizes grid stability and reduces downtime through predictive diagnostics.

Why Choose REF542PLUS 1VCF752000?

• ABB Reliability: Built on ABB’s legacy of innovation in power systems and grid automation.
• Future-Proof Design: Firmware updates and modular I/O expansion adapt to evolving network requirements.
• Global Support: Access to ABB’s technical services for configuration, commissioning, and lifecycle management.

Summary:
The REF542PLUS 1VCF752000 is a state-of-the-art protection and control relay engineered for modern power distribution networks. Its blend of advanced protection algorithms, seamless communication, and rugged design makes it ideal for utilities and industries seeking to enhance grid reliability, operational efficiency, and safety.

For application-specific configurations or detailed technical guidelines, consult ABB’s REF542PLUS product manual or contact their power systems division. Let me know if you need further details!
