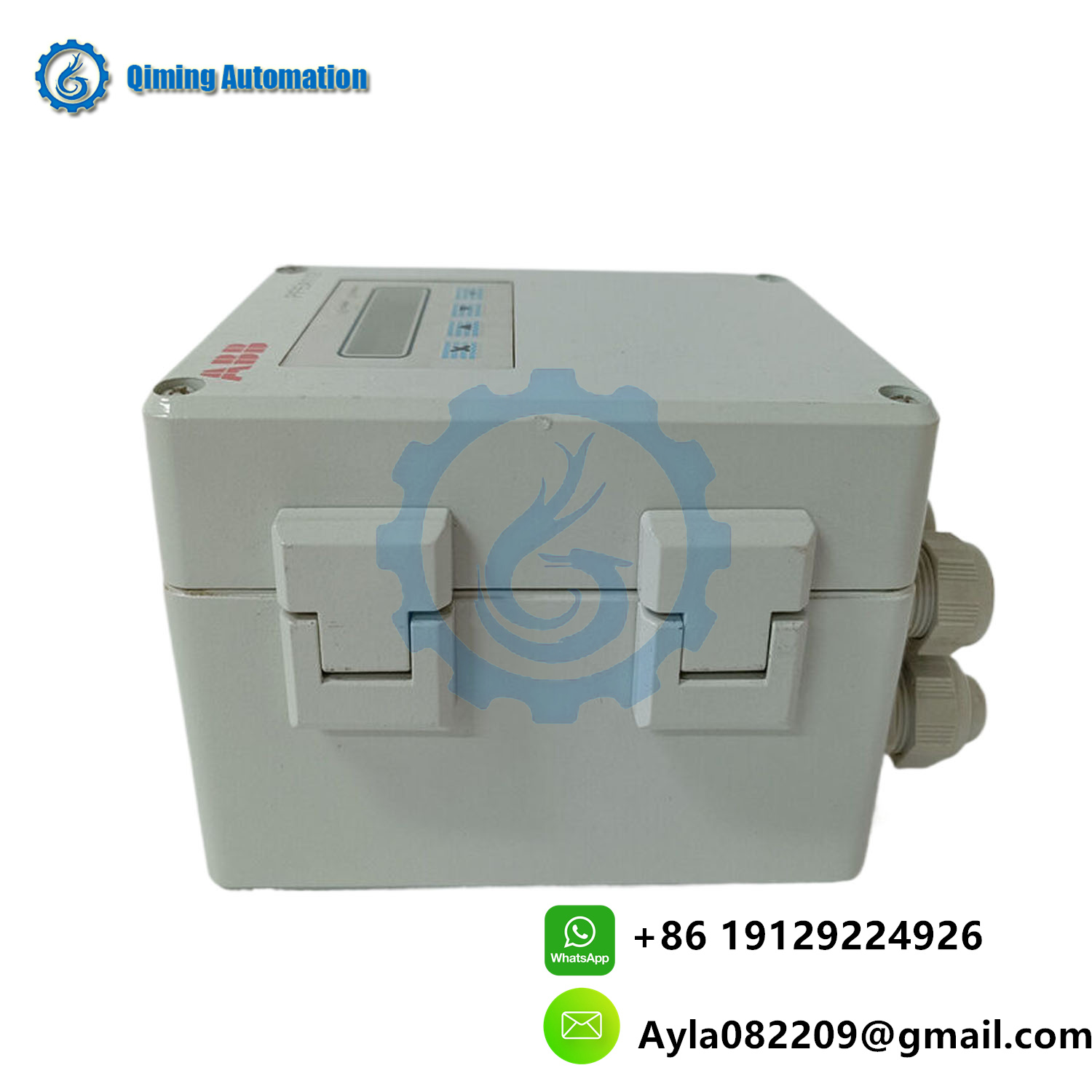

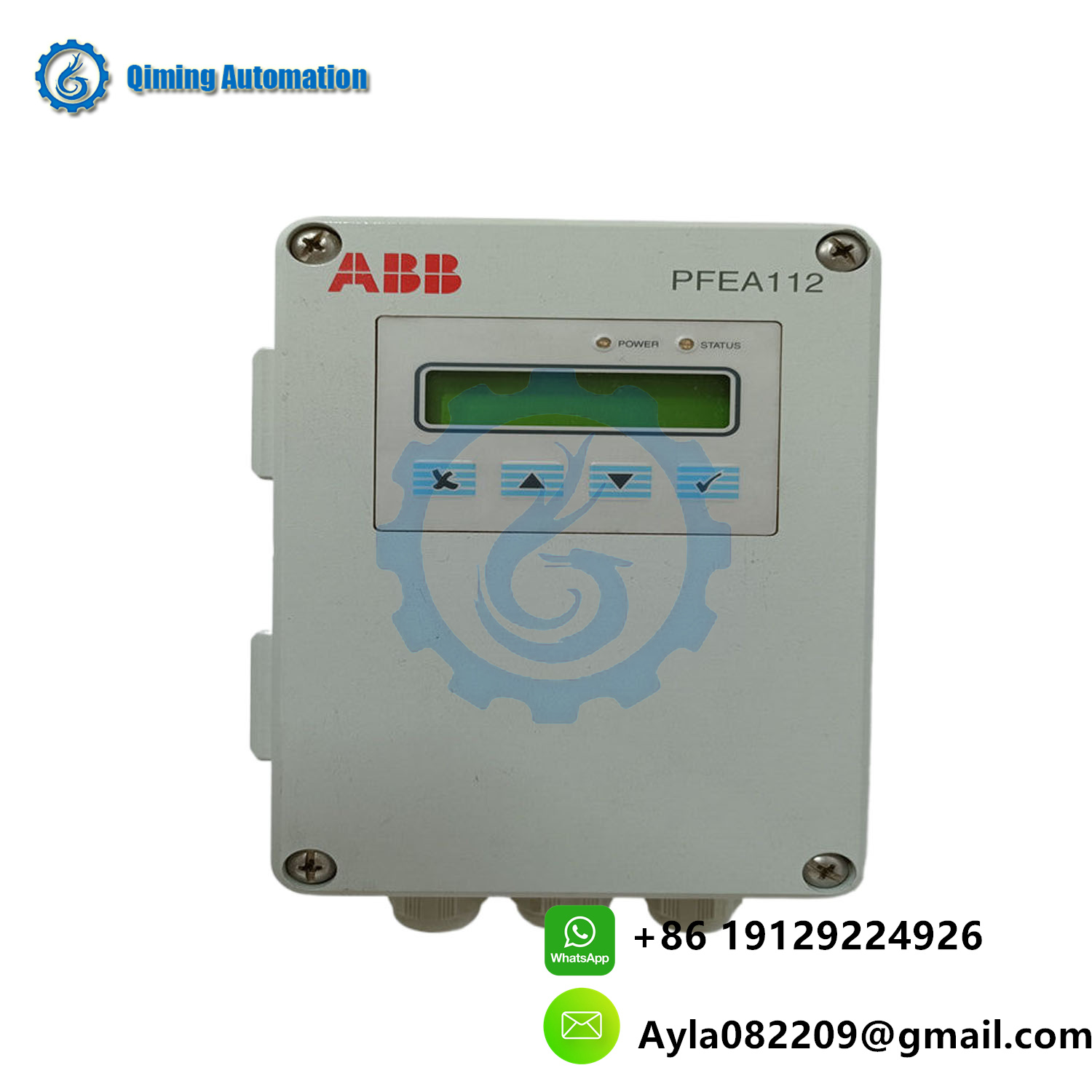

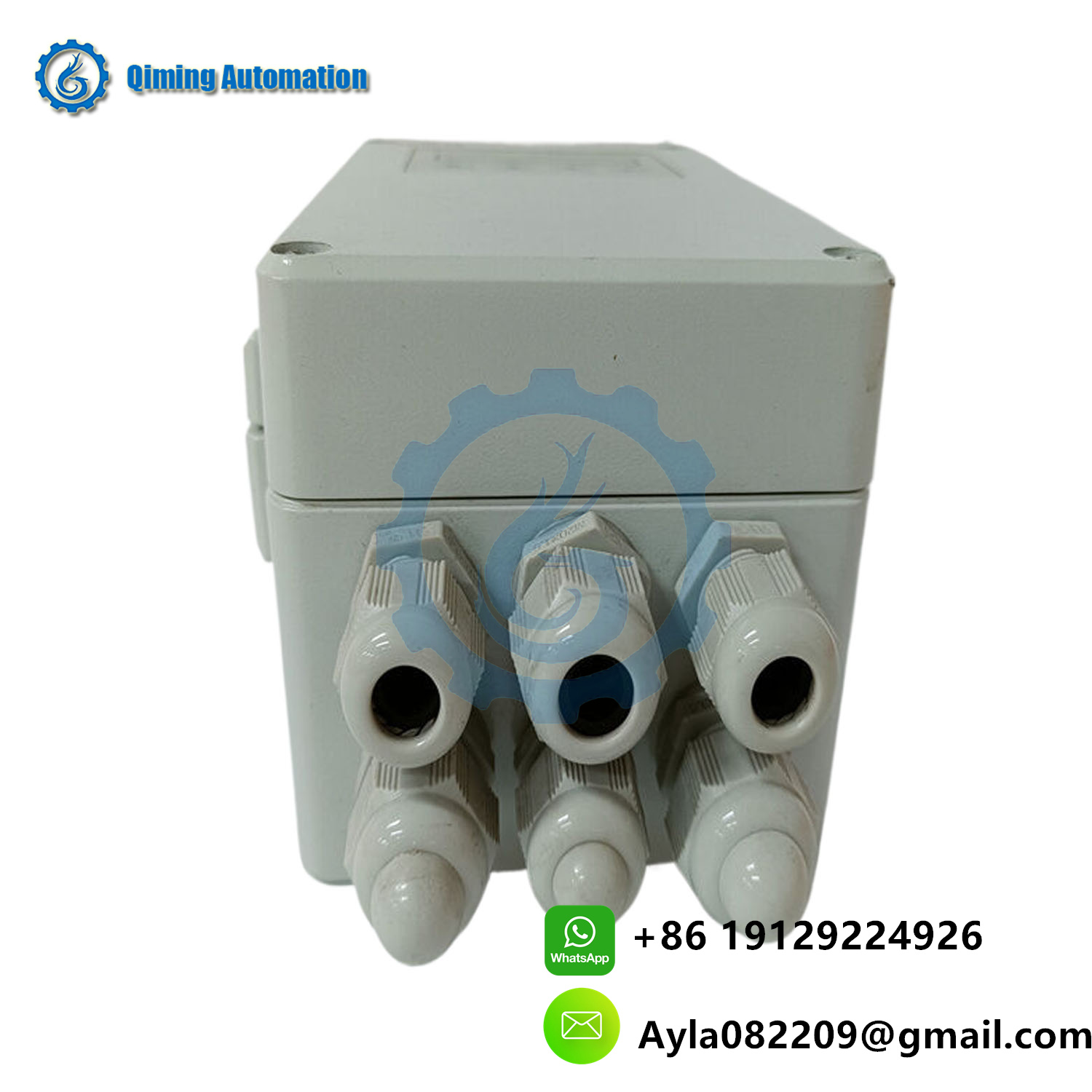

PFEA112-65 3BSE030369R0065 ABB Fieldbus communication module

The PFEA112-65 3BSE030369R0065 is a high-performance fieldbus communication module manufactured by ABB, a global leader in industrial automation and digital technologies. This module is part of ABB’s S800 I/O family, designed to enable seamless integration of field devices (e.g., sensors, actuators, and valves) into advanced control systems via fieldbus protocols. It plays a critical role in modern industrial automation by ensuring reliable data exchange between distributed devices and central control systems, such as PLCs or DCS.

Key Features

1. Fieldbus Communication Support
   • Supports PROFIBUS DP (Decentralized Periphery) or other fieldbus protocols (depending on configuration), enabling real-time communication between controllers and field devices.
   • Facilitates high-speed data transfer with deterministic performance for industrial automation.
2. Modular and Scalable Design
   • Part of ABB’s S800 I/O series, allowing flexible integration into existing S800 I/O bases (e.g., 3BSE008514R1).
   • Hot-swappable design minimizes downtime during maintenance or upgrades.
3. Robust Performance
   • Built for harsh industrial environments with resistance to electromagnetic interference (EMI), temperature fluctuations, and vibrations.
   • Wide operating temperature range (-25°C to +70°C / -13°F to +158°F).
4. Diagnostics and Monitoring
   • Integrated diagnostics via status LEDs for real-time monitoring of module health, communication errors, and signal integrity.
   • Supports remote diagnostics through ABB’s engineering tools.
5. Galvanic Isolation
   • Provides electrical isolation between field devices and control systems to prevent ground loops and voltage surges.
6. Configuration Flexibility
   • Configurable via ABB’s Control Builder or Compact Control Builder software for protocol settings, addressing, and data mapping.

Technical Specifications

• Communication Protocol: PROFIBUS DP (default; verify variant-specific protocol).
• Data Transfer Rate: Up to 12 Mbps (PROFIBUS DP).
• Power Supply: 24 V DC (via S800 I/O base).
• Isolation Voltage: 1500 V AC (field-to-system isolation).
• Certifications: Complies with CE, UL, and IEC standards for industrial safety and EMC.
• Connectors: PROFIBUS 9-pin D-Sub or M12 connectors (depending on model).

Applications

The PFEA112-65 module is widely used in industries requiring robust and real-time fieldbus communication, including:

• Process Automation: Integration of valves, flow meters, and pressure transmitters in chemical or oil & gas plants.
• Manufacturing: Connecting sensors and actuators in automotive or machinery production lines.
• Power Generation: Monitoring and control of turbines, pumps, and auxiliary systems.
• Water/Wastewater: Data exchange in SCADA systems for pump control and filtration processes.

Compatibility

• Controllers: Compatible with ABB’s AC 800M, AC 800PEC, and third-party PLCs supporting PROFIBUS DP.
• Systems: Integrates with ABB’s 800xA or Symphony Plus DCS platforms.
• I/O Bases: Mounts on S800 I/O bases (e.g., 3BSE008514R1).

Installation & Configuration

1. Mounting: Slide into an S800 I/O base unit and secure with locking mechanism.
2. Addressing: Set PROFIBUS node addresses via DIP switches or software configuration.
3. Wiring: Connect fieldbus cables to designated terminals or connectors.
4. Software Setup: Use ABB’s engineering tools to map I/O data and configure protocol parameters.

Ordering Information

• Part Number: PFEA112-65 3BSE030369R0065
• Manufacturer: ABB
• Series: S800 I/O (Fieldbus Communication Module)

Advantages

• High Reliability: Ensures stable communication in mission-critical applications.
• Interoperability: Works seamlessly with PROFIBUS DP-compliant devices from multiple vendors.
• Reduced Wiring: Simplifies infrastructure by replacing point-to-point wiring with a bus topology.
• Future-Proof: Supports integration into Industry 4.0 and IIoT-enabled systems.
