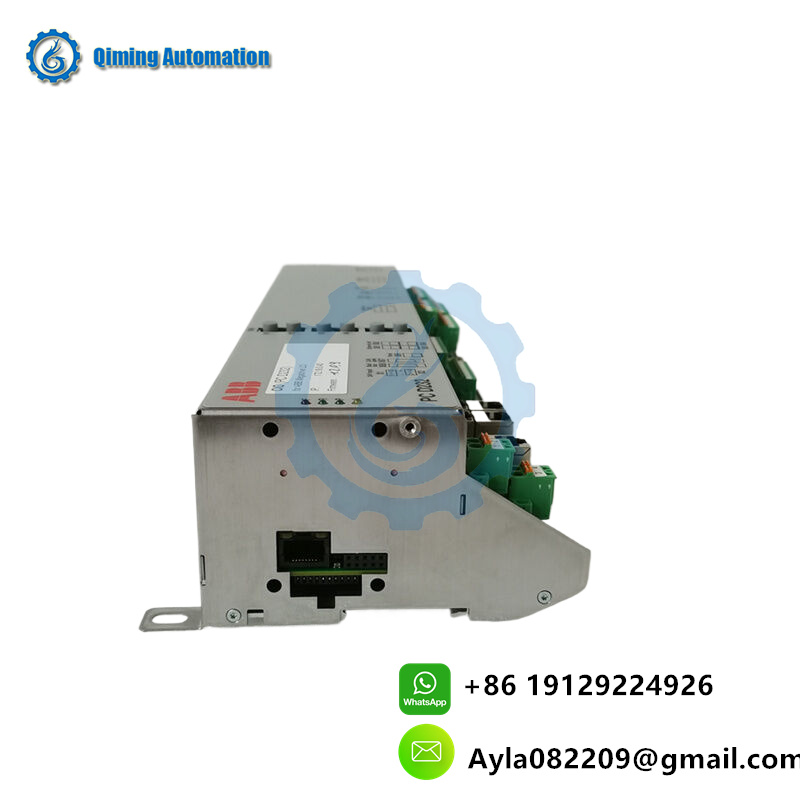

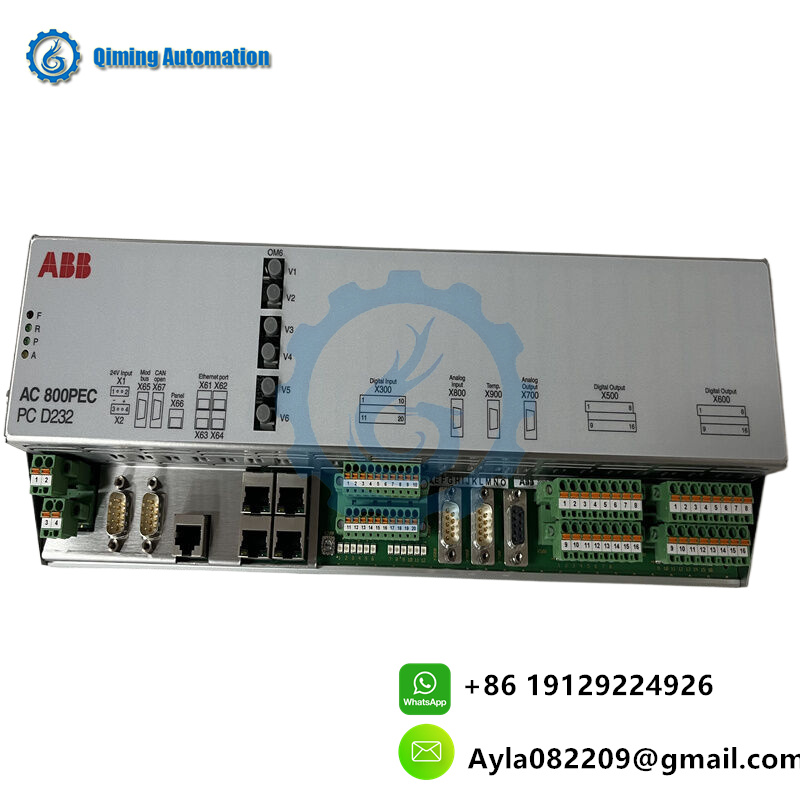

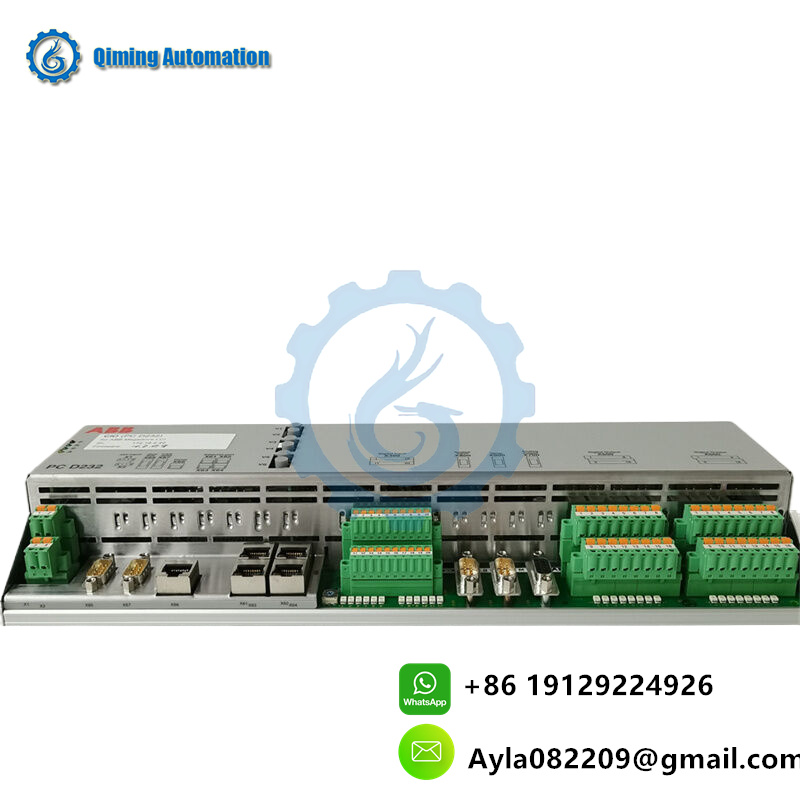

PCD232A 3BHE022293R0101 ABB Digital feeder protection relay

Here’s a detailed technical and functional overview of the ABB PCD232A (3BHE022293R0101), a feeder protection and control relay designed for medium-voltage electrical networks. This device is part of ABB’s Relion® 630 series, optimized for safeguarding power distribution systems in utilities, industries, and renewable energy applications.

ABB PCD232A (3BHE022293R0101): Technical Parameters

1. General Specifications

• Device Type: Digital Feeder Protection Relay.
• Rated Voltage:
  • System Voltage: Up to 36 kV (medium-voltage applications).
  • Auxiliary Supply: 24–250 V DC or 48–265 V AC (wide-range input).
• Current Inputs:
  • Rated Current (Iₙ): 1 A or 5 A (configurable for CT compatibility).
  • Measurement Range: 0.05–50 × Iₙ (adjustable).
• Frequency: 40–70 Hz (supports global grid standards).
• Power Consumption: < 15 W (energy-efficient operation).

2. Protection Functions

• Overcurrent Protection:
  • Definite/Inverse Time (DTL/IDMT) curves for phase and earth faults (compliant with IEC 60255).
  • Directional Overcurrent: For selective tripping in ring or meshed networks.
• Earth Fault Protection:
  • Sensitive directional/non-directional earth fault detection (high-resistance grounding support).
• Motor Protection:
  • Optional thermal overload, locked rotor, and start/stall protection.
• Arc Flash Detection:
  • Optional integration with arc sensors for rapid fault clearing (< 1 ms).
• Harmonic Monitoring:
  • Tracks up to 15th harmonic for power quality analysis.

3. Control & Communication

• Communication Protocols:
  • IEC 61850 (Edition 2) for substation automation.
  • Modbus RTU/TCP, DNP3, and IEC 60870-5-103/104 for SCADA integration.
  • GOOSE Messaging: For fast peer-to-peer communication in protection schemes.
• I/O Interfaces:
  • Digital Inputs: 12× (status signals, breaker control).
  • Digital Outputs: 8× (relays for trip, alarm, or automation commands).
  • Analog Outputs: 2× 4–20 mA (e.g., current/voltage monitoring).

4. Environmental & Mechanical

• Operating Temperature: -40°C to +70°C (-40°F to +158°F).
• Humidity: 5–95% RH (non-condensing).
• Enclosure Rating: IP40 (front panel), IP20 (terminal section).
• Mounting: Panel-mounted or DIN rail (optional).
• Certifications: Complies with IEC 60255, IEEE C37.90, UL 508, and CE.

Functional Capabilities

1. Advanced Feeder Protection
   • Combines overcurrent, earth fault, and directional protection for radial or looped networks.
   • Customizable logic (PLC-like functionality) for adaptive protection schemes.
2. Fault Recording & Analysis
   • Disturbance Recorder: Captures waveforms, events, and alarms for post-fault analysis.
   • Event Logging: Stores > 500 events with timestamps and fault details.
3. Cybersecurity Features
   • Role-based access control (RBAC) and IEC 62351 compliance for secure communication.
   • Password protection and audit trails to prevent unauthorized changes.
4. Human-Machine Interface (HMI)
   • Graphical LCD Display: 5.7-inch color touchscreen for real-time data visualization.
   • Local Control: Manual breaker operation and parameter adjustments.
5. Self-Diagnostics & Health Monitoring
   • Continuous monitoring of hardware status, CT/VT health, and communication links.

Typical Applications

• Utility Substations: Protection of distribution feeders, transformers, and busbars.
• Industrial Plants: Motor feeder protection, process line safeguarding.
• Renewable Energy: Grid connection protection for solar/wind farms.
• Mining & Oil/Gas: Robust operation in harsh, remote environments.

Key Advantages

• Modularity: Expandable with optional I/O or communication modules (e.g., fiber-optic ports).
• Interoperability: Seamless integration with ABB’s System 800xA, MicroSCADA, or third-party systems.
• Rapid Fault Clearing: < 20 ms operating time for critical faults.
• Future-Ready: Firmware upgradable to support evolving grid standards.
