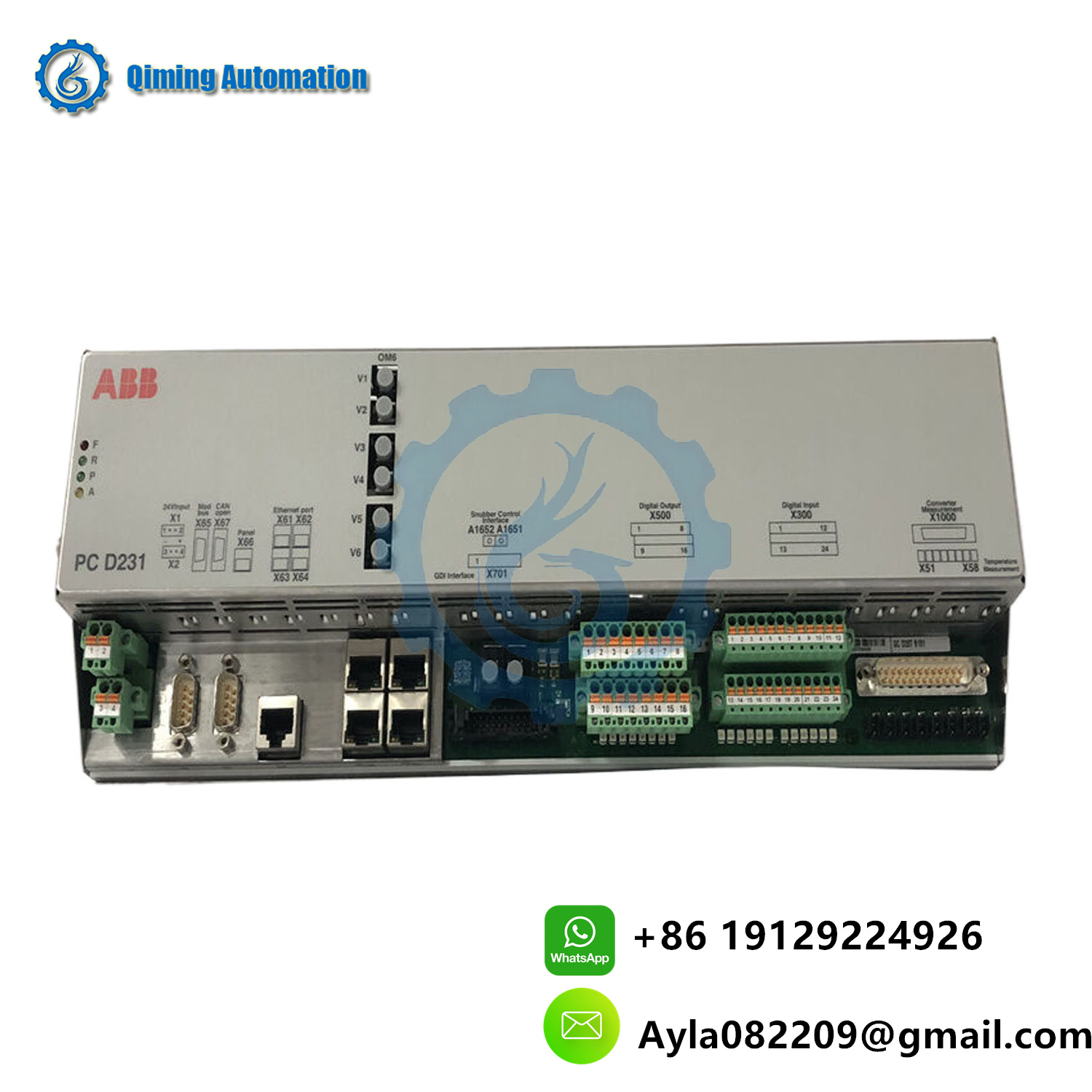

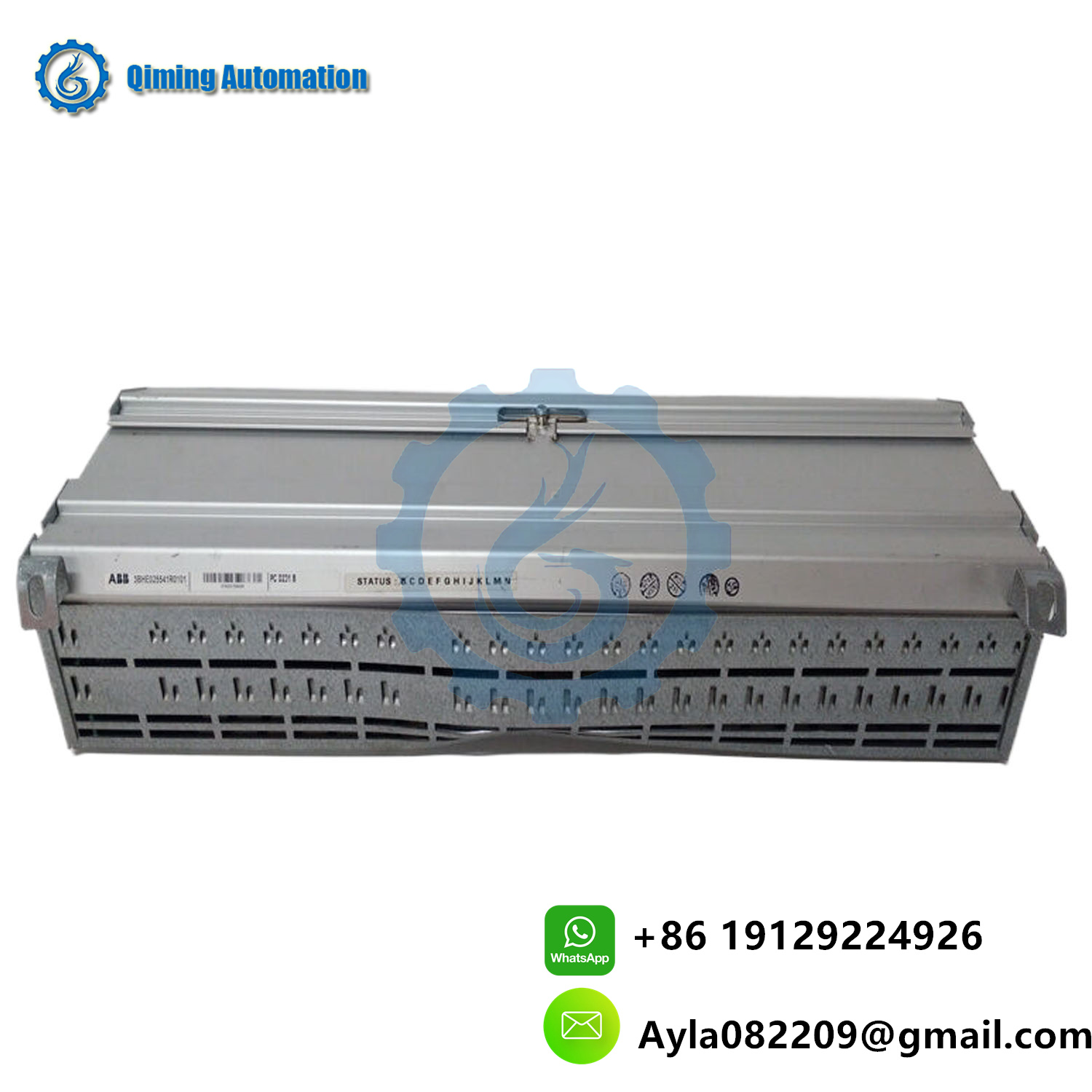

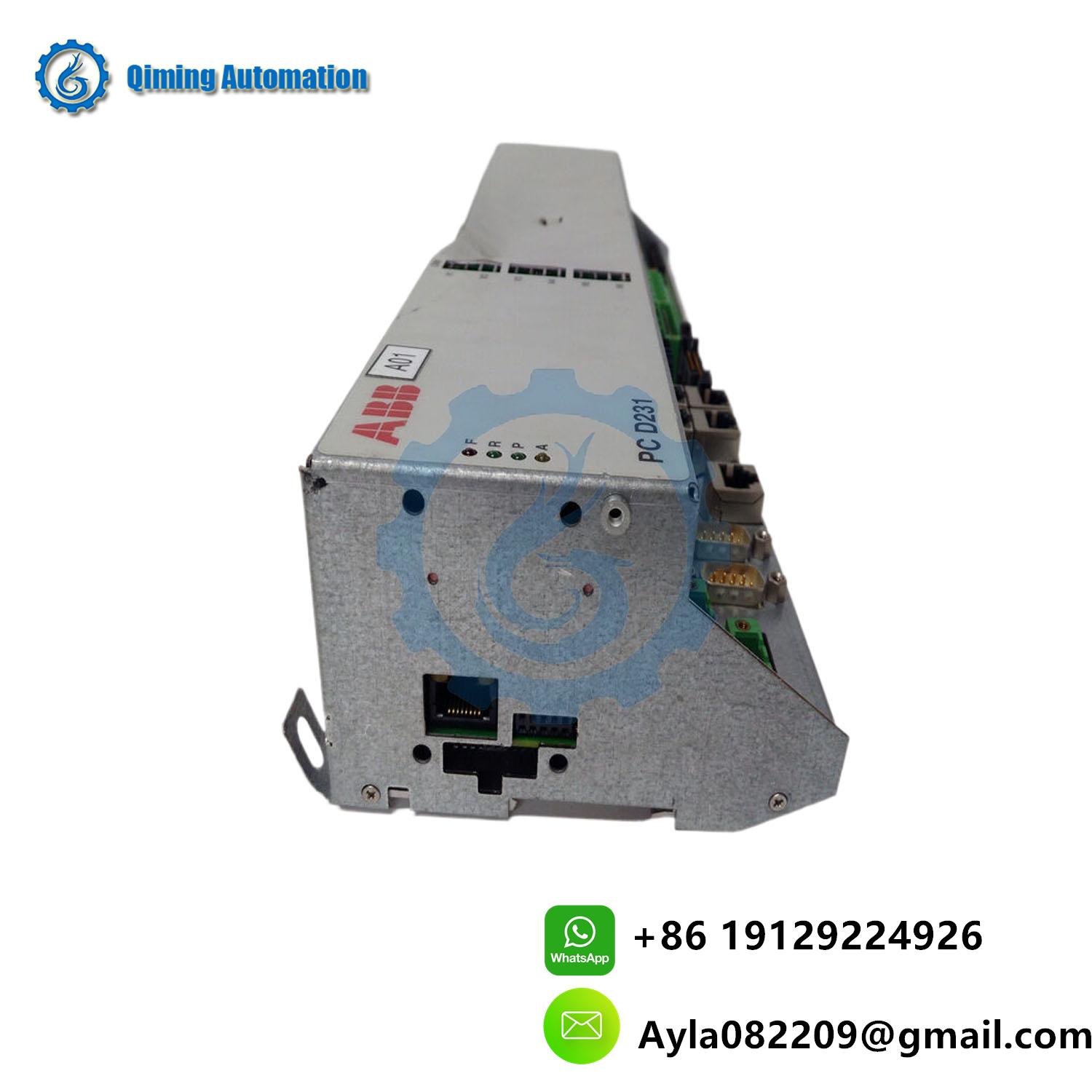

PCD231B 3HHE025541R0101 ABB Control relay

Here’s a detailed technical and functional overview of the ABB PCD231B 3HHE025541R0101, a specialized protection and control relay designed for medium-voltage power systems. This device is part of ABB’s Relion® product family, tailored for industrial and utility applications requiring robust grid protection and automation capabilities.

1. Primary Functionality & System Integration

The ABB PCD231B 3HHE025541R0101 serves as a multifunctional protection relay for electrical networks, focusing on safeguarding equipment and ensuring grid stability. Its core functions include:

• Feeder Protection: Detects and isolates faults in distribution lines (overcurrent, short-circuit, earth faults).
• Motor Protection: Monitors thermal overload, phase imbalance, and locked rotor conditions.
• Grid Automation: Supports auto-reclosing, load shedding, and synchronization with SCADA/DMS systems.
• Power Quality Monitoring: Tracks harmonics, voltage sags/swells, and frequency deviations.

Typical Integration Systems:

• Industrial Power Distribution: Protects motors, transformers, and switchgear in manufacturing plants.
• Renewable Energy Systems: Ensures safe grid interconnection for solar/wind farms.
• Utility Substations: Acts as a backup protection relay for transmission lines and busbars.

2. Technical Parameters

Electrical Specifications

• Input Voltage:
  • Rated Voltage: 100–240V AC/DC (wide-range auxiliary supply).
  • Frequency: 50/60 Hz (±10%).
• Current Inputs:
  • Primary Current: Configurable for 1A or 5A CT secondary inputs.
  • Dynamic Range: Up to 40x rated current for fault detection.

Protection Functions

Communication & Interfaces

• Protocols: IEC 61850 (Ed.2), Modbus RTU/TCP, DNP3.0, and IEC 60870-5-104.
• Ports:
  • 2x Ethernet ports (RJ45) for high-speed data exchange.
  • 1x RS-485 serial port for legacy device integration.
  • USB port for local configuration.

Environmental & Mechanical

• Operating Temperature: -25°C to +70°C.
• Humidity: Up to 95% (non-condensing).
• Certifications: IEC 60255, UL 508, CE, and IEEE C37.90 (EMC immunity).
• Enclosure: IP40 protection (front panel), 1/4 DIN size (96×96 mm).

3. Advanced Features

• Disturbance Recording: Stores 100+ fault events with oscillography (128 samples/cycle).
• Logic Customization: Programmable logic via ABB’s PCM600 software for custom automation sequences.
• Cybersecurity: Role-based access control, HTTPS/SSH encryption, and secure firmware updates.
• HMI Interface: 4-line LCD display with multilingual menus for real-time diagnostics.

4. Application Example

In a manufacturing plant, the ABB PCD231B 3HHE025541R0101 might be deployed to:

• Protect critical motors from thermal stress using customized I²t curves.
• Trigger auto-reclosing of circuit breakers after transient faults.
• Send real-time data to a central SCADA system via IEC 61850 for energy management.

Summary

The ABB PCD231B 3HHE025541R0101 combines precision protection, grid automation, and cybersecurity in a compact design. Its adaptability to industrial and utility environments makes it a cornerstone for modern power systems. For exact settings and compliance details, consult the ABB PCD231B Technical Manual or contact ABB support.
