PCD230A101 3BHE022291R0101 ABB Control relay

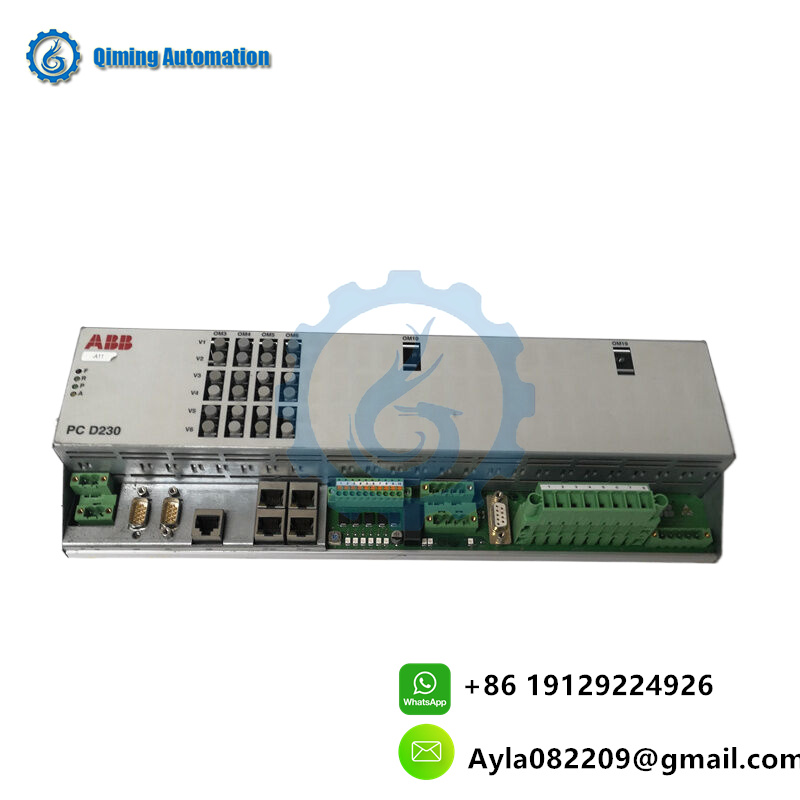

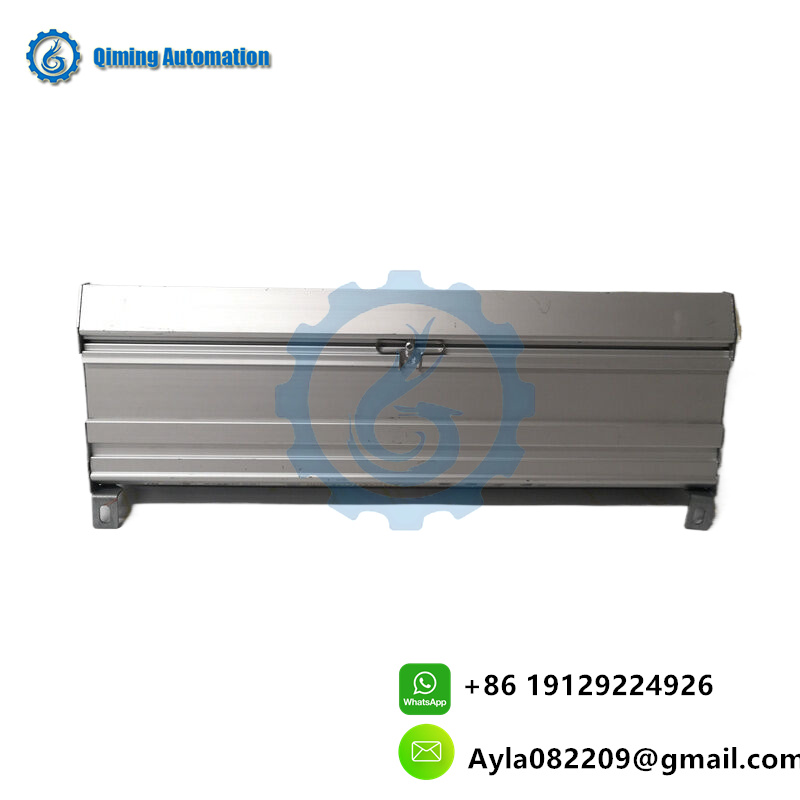

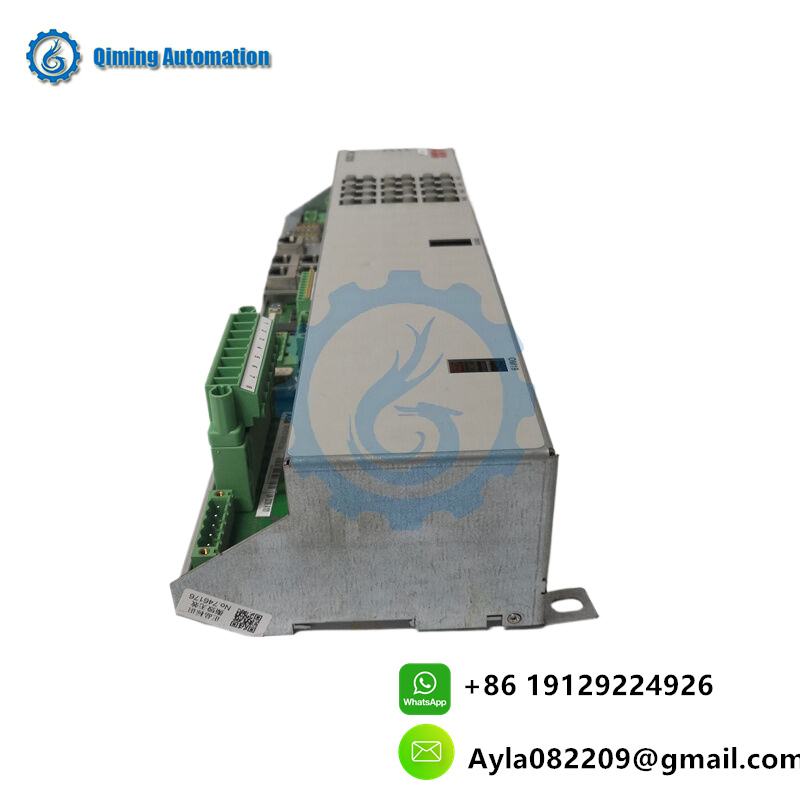

ABB PCD230A101 (3BHE022291R0101) Overview

The PCD230A101 (part number 3BHE022291R0101) is a protection and control relay designed by ABB for power distribution and industrial automation systems. Part of ABB’s Relion® product family, it is engineered to provide advanced protection, monitoring, and control for electrical networks, motors, and generators. This device ensures operational reliability in utilities, manufacturing plants, and renewable energy systems.

Key Technical Parameters

1. Input Ratings:
   • Voltage Input: 100–240 V AC/DC (auxiliary supply).
   • Current Input: 1 A or 5 A (configurable via hardware/software).
   • Frequency: 50/60 Hz (±10%).
2. Protection Functions:
   • Overcurrent Protection: Definite-time (DT) and inverse-time (IDMT) curves for phase and earth faults.
   • Earth Fault Protection: Directional/non-directional detection for grounded and ungrounded systems.
   • Motor Protection: Thermal overload, locked rotor, and unbalanced load protection.
   • Voltage Protection: Under/overvoltage, under/overfrequency, and phase sequence monitoring.
   • Arc Flash Detection: Optional rapid fault detection for personnel safety.
3. Control & Automation:
   • Programmable logic (PLC-like functionality) for custom control sequences.
   • Auto-reclosing for circuit breakers to restore power after transient faults.
4. Communication Interfaces:
   • IEC 61850 (Ed. 2) for substation automation and digital communication.
   • Modbus RTU/TCP for SCADA and PLC integration.
   • DNP3 for utility-grade telemetry.
   • Ethernet (TCP/IP) for remote access and diagnostics.
5. Environmental Specifications:
   • Operating Temperature: -40°C to +70°C (-40°F to +158°F).
   • Humidity: Up to 95% (non-condensing).
   • Certifications: IEC 60255, UL, CE, and IEEE C37.90 standards.
6. Mechanical Design:
   • Compact, DIN rail-mountable or panel-mounted enclosure.
   • IP40 protection for indoor use (higher IP ratings available for harsh environments).
   • Front-facing HMI with LCD display and navigation keys.
7. Diagnostics & Monitoring:
   • Real-time measurement of current, voltage, power, energy, and harmonics.
   • Event recording (up to 10,000 time-stamped events).
   • Fault waveform capture for post-event analysis.

Primary Functions

1. Network Protection:
   • Safeguards transformers, feeders, and busbars against short circuits, overloads, and earth faults.
   • Configurable protection curves (ANSI/IEEE or IEC standards).
2. Motor Management:
   • Monitors motor thermal capacity and provides start/stop control.
   • Protects against phase loss, stall conditions, and mechanical jams.
3. Grid Integration:
   • Supports renewable energy systems (e.g., solar/wind farms) with grid code compliance.
   • Voltage/frequency ride-through capabilities.
4. Automation & Logic:
   • Customizable logic blocks for load shedding, synchronization, and interlocking.
   • Integration with ABB’s System 800xA for centralized control.
5. Cybersecurity:
   • Role-based access control and encrypted communication protocols (IEC 62351).

Typical Applications

• Power Distribution: Protection of medium-voltage (MV) and low-voltage (LV) networks.
• Industrial Plants: Motor control centers (MCCs), compressors, and pumps.
• Renewable Energy: Solar inverters, wind turbine generators, and battery storage systems.
• Utilities: Substation automation, feeder management, and microgrid control.
• Oil & Gas: Critical infrastructure protection for offshore platforms and refineries.

Advantages

• Versatility: Combines protection, control, and measurement in a single device.
• Interoperability: Seamless integration with ABB Relion relays and third-party systems.
• Resilience: Operates reliably in extreme temperatures and electromagnetic interference (EMI) environments.
• User-Friendly: Intuitive configuration via PCM600 software or front-panel interface.
• Future-Ready: Supports digital substation protocols (IEC 61850) for Industry 4.0 readiness.
