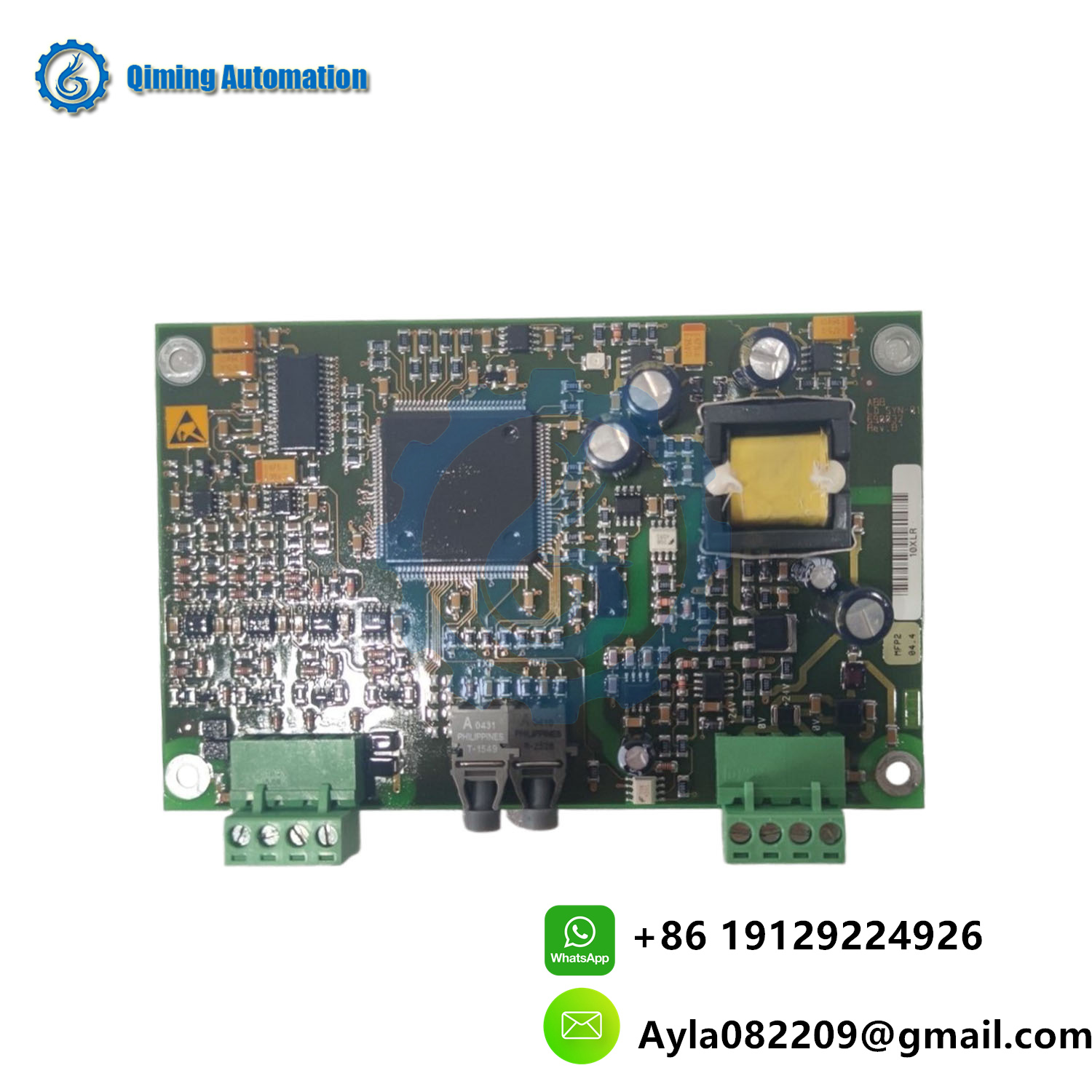

LDSYN-101 3BHE005555R0101 ABB High precision synchronization module

The LDSYN-101 3BHE005555R0101 is a high-precision synchronization module developed by ABB for integration into power generation and grid stability systems. Designed as part of ABB’s REG670 or Relion® 670 series protection and control relays, this module ensures precise synchronization of generators, motors, and grid connections in applications such as power plants, renewable energy farms, and industrial microgrids. It enables seamless phase-matching, frequency alignment, and voltage regulation, critical for safe and efficient grid integration.

Technical Parameters

1. Electrical Specifications:

• Input Voltage:
  • AC Voltage Inputs: 3-phase, 100–480V AC (50/60 Hz).
  • DC Auxiliary Supply: 24–250V DC or 110–230V AC.
• Frequency Range: 40–70 Hz (adjustable for grid/generator synchronization).
• Accuracy:
  • Phase Angle: ±0.1° resolution.
  • Frequency: ±0.001 Hz precision.
  • Voltage Matching: ±0.5% of nominal voltage.

2. Functional Interfaces:

• Binary Inputs/Outputs:
  • 8 programmable digital inputs (24–250V DC).
  • 6 relay outputs (5A, 250V AC/DC) for circuit breaker control.
• Communication Protocols:
  • IEC 61850 (GOOSE, MMS), Modbus RTU/TCP, DNP3.0.
  • Ethernet (100 Mbps) and RS-485 serial ports.

3. Environmental Resilience:

• Operating Temperature: -40°C to +85°C (derating above 70°C).
• Humidity: Up to 95% non-condensing.
• Shock/Vibration: 5g (IEC 60255-21-1).
• Protection Rating: IP40 (front panel), IP20 (terminal section).

4. Certifications & Compliance:

• Standards: IEC 60255, IEEE C37.90, UL 508.
• EMC: IEC 61000-4 (Level 4 surge immunity).
• Safety: CE, UL, and ATEX for hazardous environments.

Functional Capabilities

1. Synchronization Control:

• Auto-synchronization of generators to grid with dead bus and live bus modes.
• Slip frequency compensation and phase angle anticipation algorithms.

2. Protection & Monitoring:

• Vector Surge Protection: Detects grid instability and triggers islanding.
• Synchrocheck Function: Validates phase, voltage, and frequency before closing circuit breakers.
• Real-time waveform capture and event recording (COMTRADE format).

3. Advanced Diagnostics:

• Built-in self-testing for relay health and communication status.
• HMI interface with LCD display for parameter configuration and fault logs.

4. Redundancy & Scalability:

• Supports redundant communication paths and dual power supplies.
• Expandable with ABB’s Relion® series I/O modules.

Key Applications

• Power Generation: Synchronizing gas turbines, hydro generators, and solar inverters to the grid.
• Renewable Energy: Wind farm grid compliance and black start capabilities.
• Industrial Plants: Motor-generator set synchronization for steel mills or paper mills.
• Microgrids: Seamless transition between grid-connected and islanded modes.

Conclusion

The LDSYN-101 3BHE005555R0101 by ABB is a mission-critical solution for ensuring grid stability and equipment safety during synchronization processes. Its unmatched accuracy, robust communication protocols, and compliance with global standards make it indispensable for modern power systems, renewable integration, and industrial automation.
