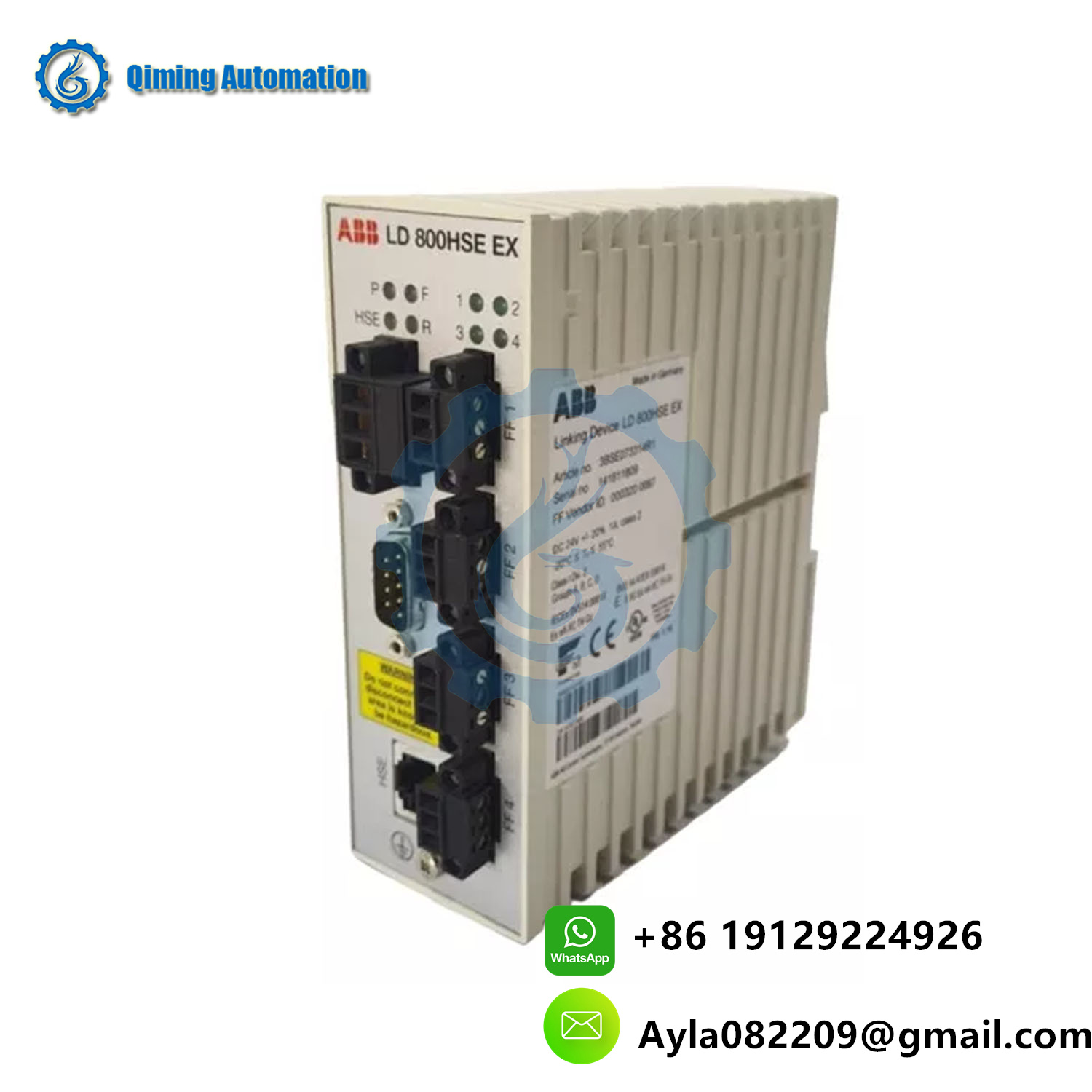

LD800HSEEX 3BSE073314R1 ABB High speed Ethernet (HSE) communication module

ABB LD800HSEEX (3BSE073314R1) Overview

The LD800HSEEX (part number 3BSE073314R1) is a High-Speed Ethernet (HSE) Communication Module designed for ABB’s AC 800M controller family. It enables high-performance industrial communication and integration within distributed control systems (DCS), process automation, and supervisory control networks. This module is critical for real-time data exchange and system scalability in industries requiring robust and reliable connectivity.

Key Technical Parameters

1. Communication Protocols:
   • HART over Ethernet: Supports HART-IP for integrating smart field devices.
   • Modbus TCP/IP: Seamless integration with PLCs, RTUs, and SCADA systems.
   • OPC UA/DA: Facilitates secure data exchange with enterprise-level systems.
   • Foundation Fieldbus HSE: Compliant with IEC 61158 standards for process automation.
2. Hardware Specifications:
   • Ports: Dual 10/100 Mbps Ethernet ports with auto-negotiation and redundancy support.
   • Power Supply: 24 V DC (typical industrial supply; range 18–32 V DC).
   • Isolation: Galvanic isolation for noise immunity and electrical protection.
3. Performance:
   • Data Transfer Rate: Up to 100 Mbps for real-time process data.
   • Latency: Low-latency communication (<1 ms for critical signals).
   • Cyclic Data Handling: Supports deterministic communication for time-sensitive applications.
4. Redundancy & Reliability:
   • HSR (High Availability Seamless Redundancy): Zero-recovery time during network failover.
   • PRP (Parallel Redundancy Protocol): Dual-network redundancy for mission-critical systems.
5. Environmental Ratings:
   • Operating Temperature: -25°C to +70°C (-13°F to +158°F).
   • Humidity: 5–95% (non-condensing).
   • Certifications: UL, CE, IECEx, and ATEX (for hazardous areas).
6. Mechanical Design:
   • Compact, modular design for DIN rail mounting.
   • Robust metal housing with IP20 protection (indoor use).
   • Hot-swappable configuration for maintenance without system downtime.

Primary Functions

1. Real-Time Industrial Communication:
   • Connects ABB AC 800M controllers with field devices (sensors, actuators), HMIs, and enterprise networks.
   • Enables deterministic data exchange for process control loops.
2. Integration with Fieldbus Networks:
   • Bridges Foundation Fieldbus H1 devices to HSE networks for unified control.
   • Supports legacy systems via protocol conversion (e.g., Profibus to HSE).
3. Cybersecurity:
   • Implements VLAN segmentation, firewall rules, and role-based access control.
   • Compliant with IEC 62443 standards for industrial network security.
4. Diagnostics & Monitoring:
   • Real-time network health monitoring (packet loss, latency, bandwidth usage).
   • Event logging and alarms for proactive maintenance.
5. Scalability:
   • Supports large-scale distributed control systems with thousands of I/O points.
   • Compatible with ABB’s System 800xA for centralized engineering and diagnostics.

Typical Applications

• Process Automation: Oil refineries, chemical plants, and pharmaceuticals.
• Power Generation: Turbine control, grid management, and substation automation.
• Manufacturing: Automotive production lines, robotics, and batch processing.
• Water/Wastewater Treatment: Networked control of pumps, valves, and sensors.
• Mining & Metals: Integration of remote equipment in harsh environments.

Advantages

• High Availability: Dual-port redundancy and PRP/HSR protocols ensure uninterrupted operation.
• Interoperability: Works with ABB and third-party devices via open standards.
• Future-Proof: Supports Industry 4.0 and IIoT (Industrial Internet of Things) architectures.
• Ease of Configuration: Managed via ABB’s Control Builder M engineering tool.
• Robustness: Built to withstand extreme temperatures, vibration, and EMI.
