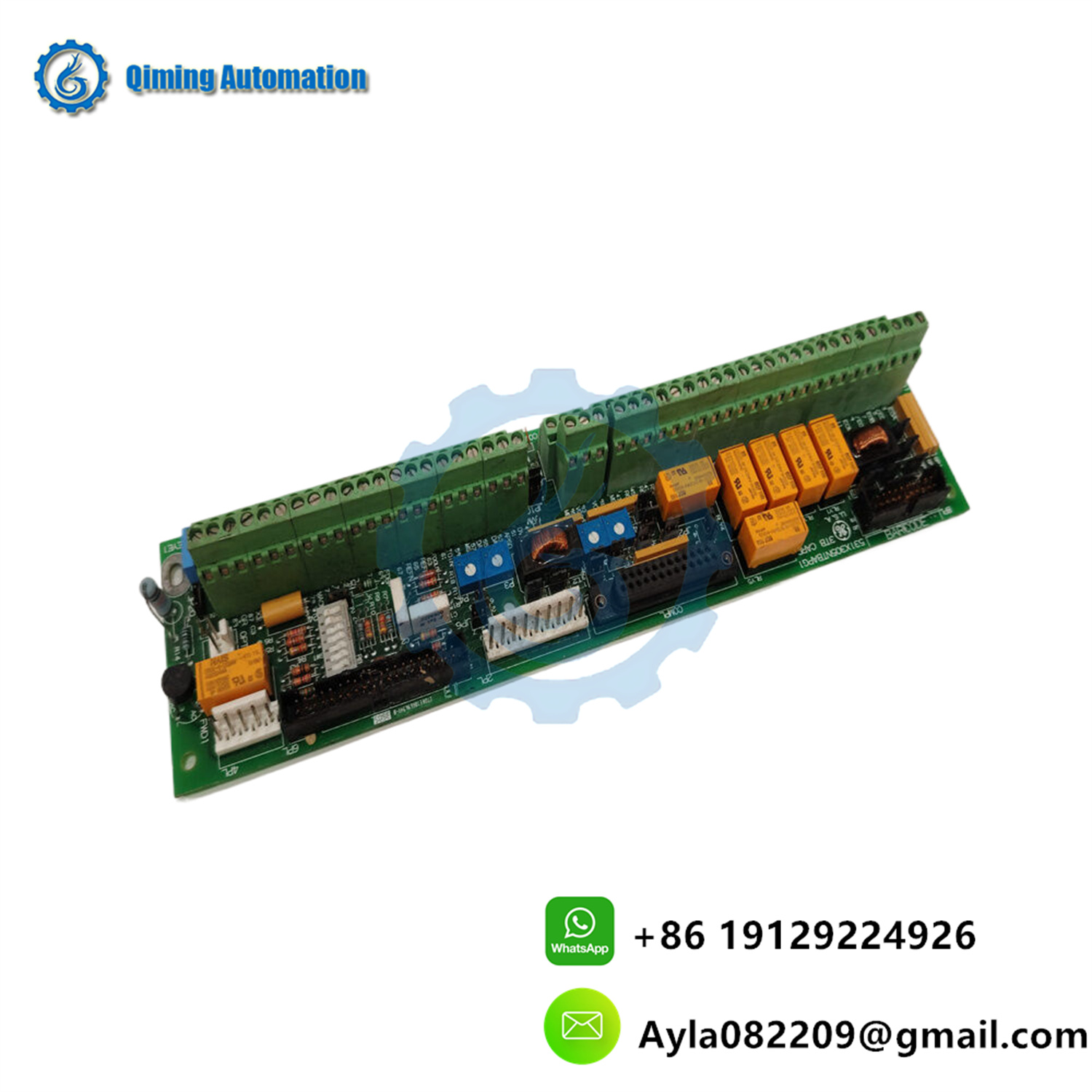

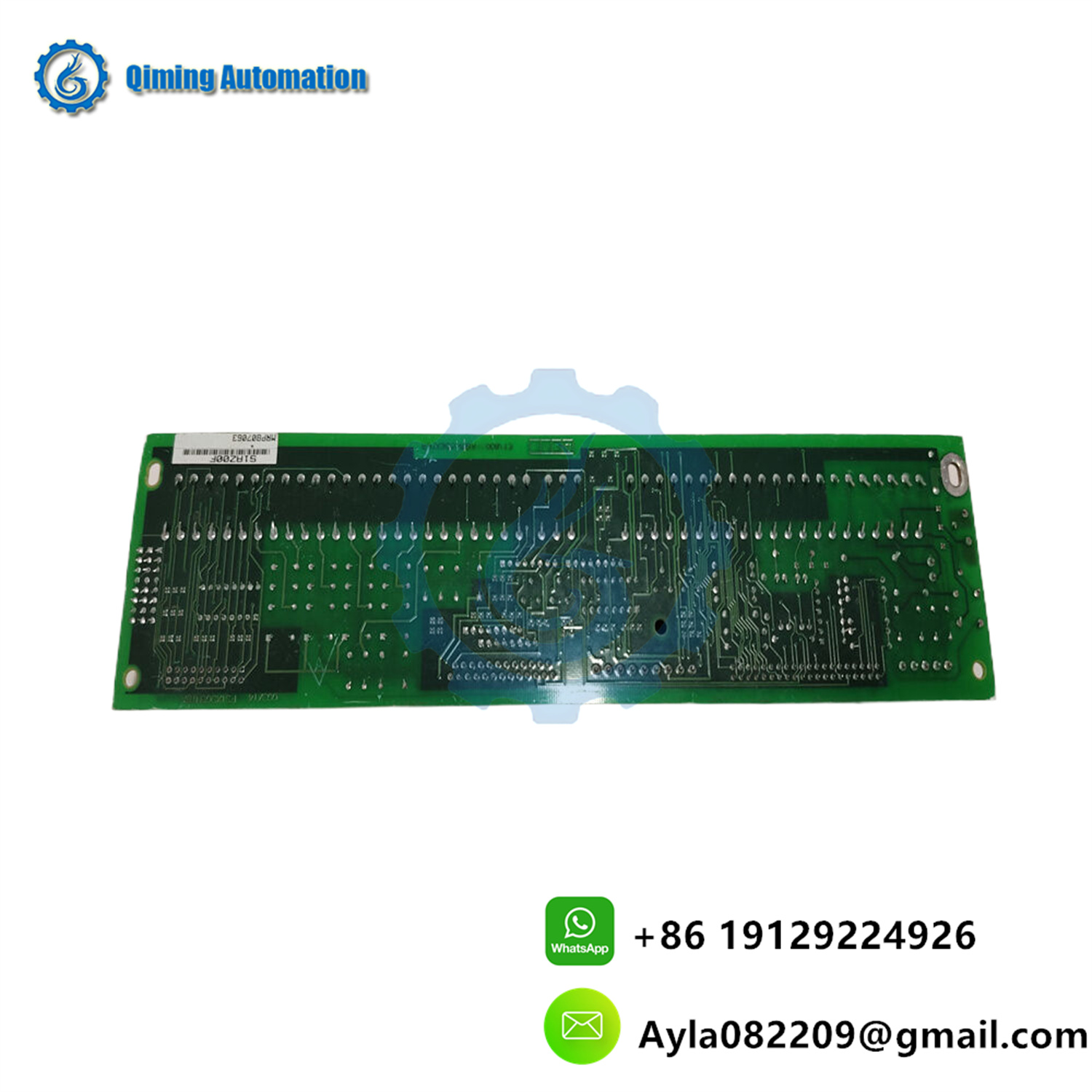

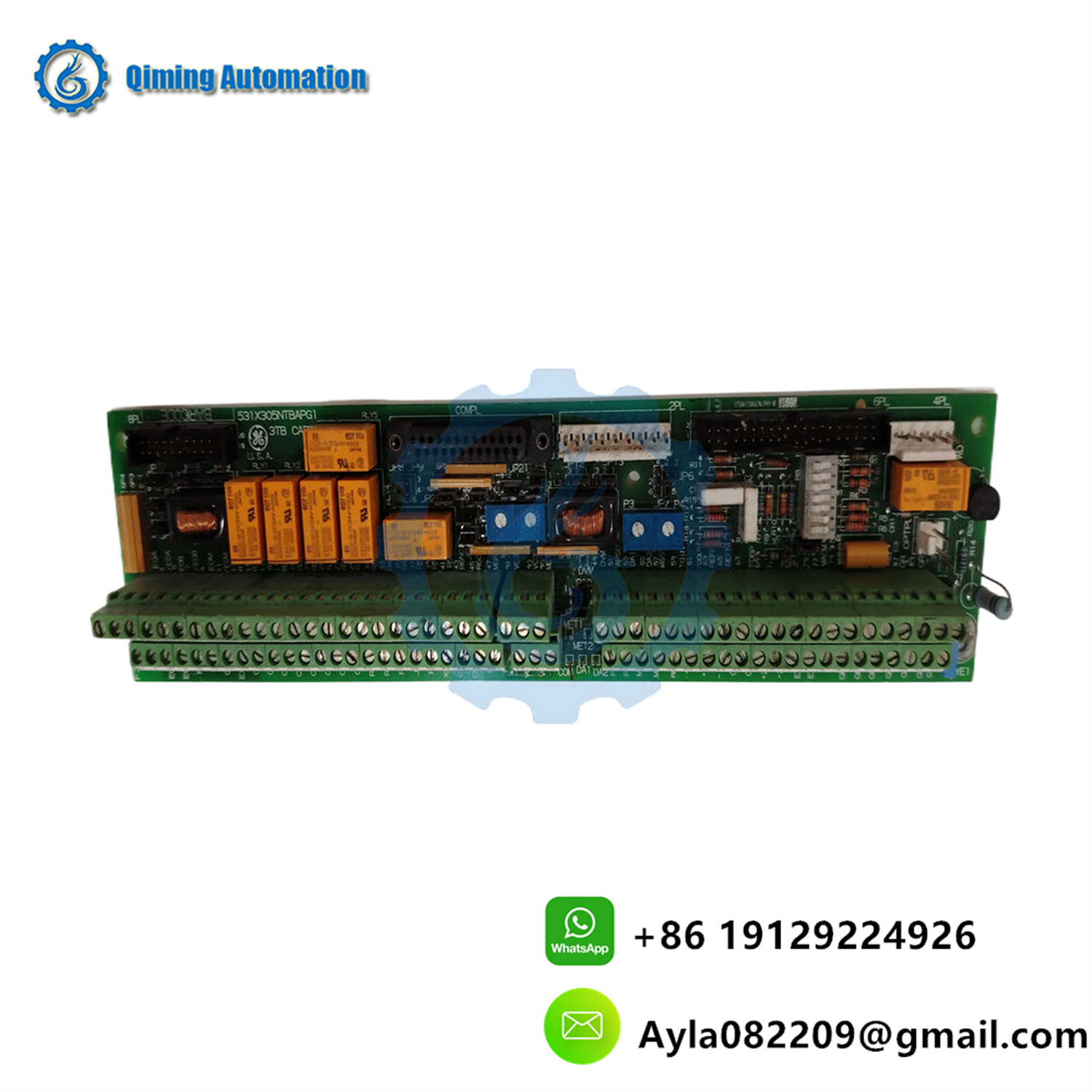

GE 531X305NTBAPG1 Drive Control Terminal Board
Core Performance & Applications
GE 531X305NTBAPG1 is a mission-critical interface component for industrial drive systems, engineered to handle signal routing, power distribution, and multi-device coordination. Its robust architecture ensures reliable operation in demanding environments including power plants, chemical processing, and automated production lines.
Technical Parameters
- Voltage Outputs: +5VDC (300mA), 15VDC (300mA)
- Power Channels: 24VDC (500mA), 120VAC (0.5A)
- Digital I/O: 12 universal inputs + dedicated RESET/CON ON
- Relay Outputs: 7 Type A/C relays (120VAC rated)
- Encoder Interface: Differential A-quad-B with ±5V/15V selectable
- Operating Temp: -20°C to +70°C
Industrial Applications
- ▸ Motor control centers in power generation
- ▸ Production line automation systems
- ▸ Petrochemical process monitoring
- ▸ Building management systems (BMS)
- ▸ Data acquisition networks
Qiming Automation Advantage
As certified partners for Bently Nevada, Honeywell, and ABB, Guangzhou Qiming Automation guarantees:
- ✓ 12-month performance warranty
- ✓ 24-hour global dispatch
- ✓ 100% OEM-approved components
- ✓ On-site technical support availability
Custom solutions available for non-standard requirements: Contact Engineering Team
