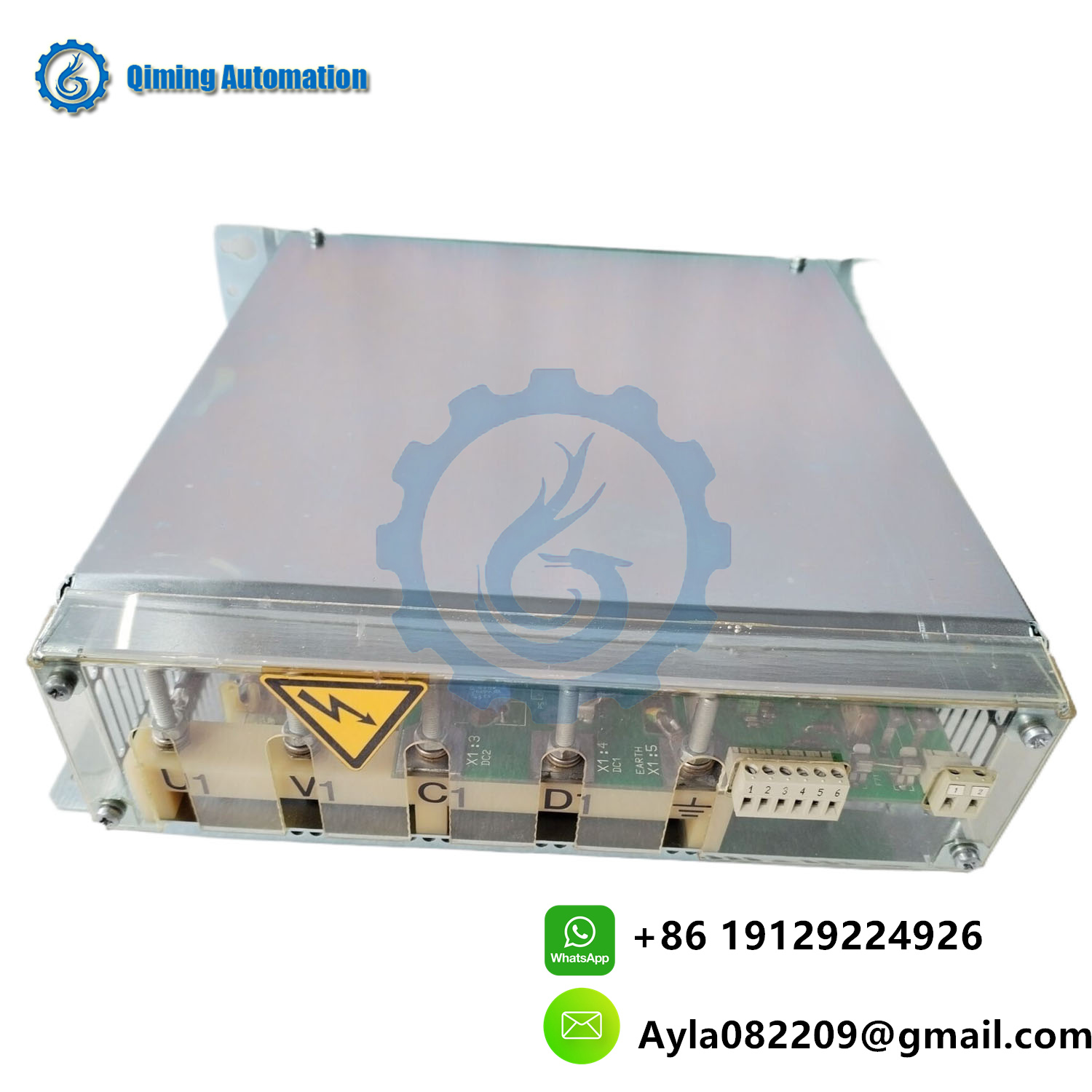

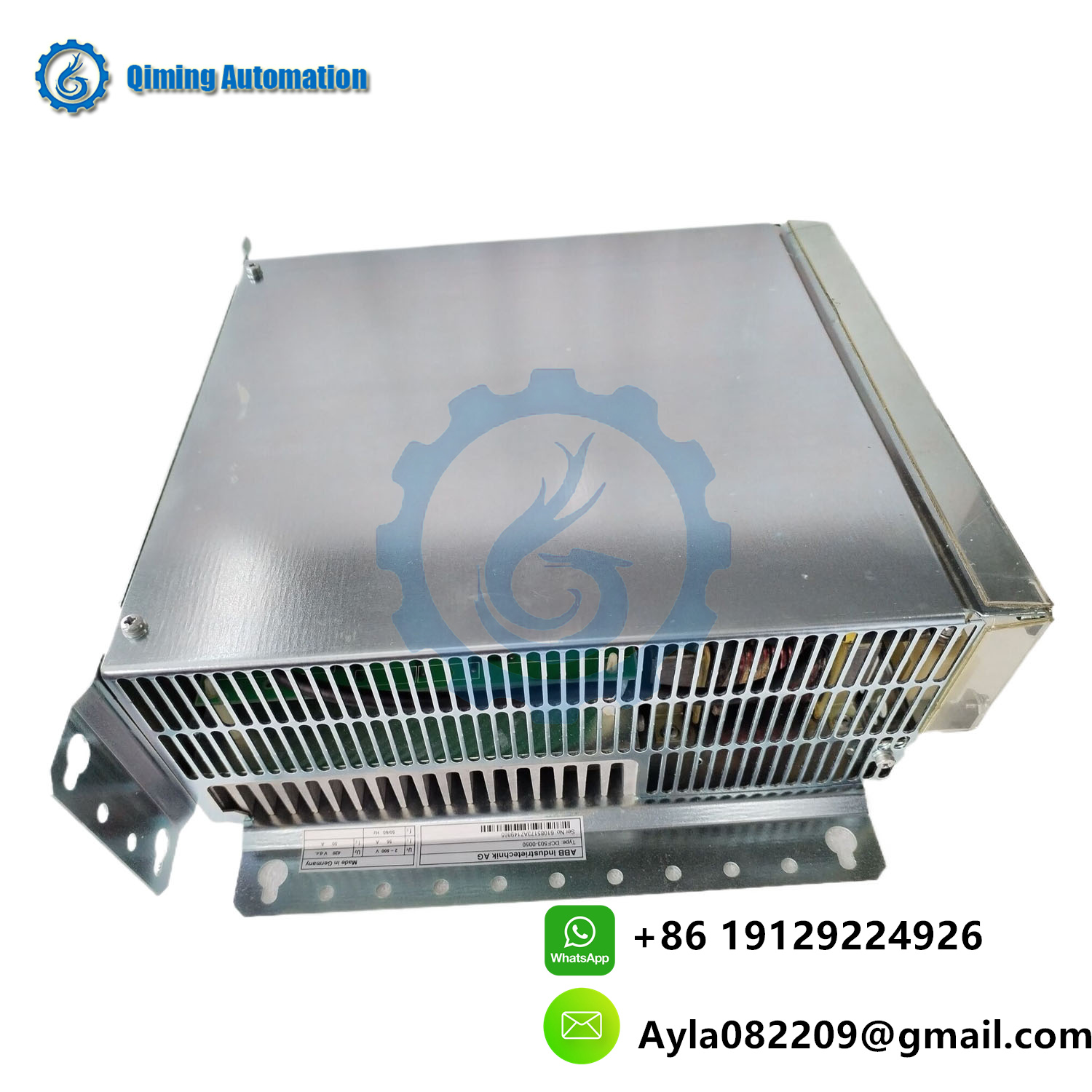

DCF503-0050 ABB Drive control module

The DCF503-0050 is a high-precision drive control module developed by ABB for integration into industrial motor control and automation systems. Designed as part of ABB’s ACS800 or similar drive series, this module is widely used in applications requiring precise speed and torque regulation, such as conveyor systems, pumps, fans, and heavy machinery. It ensures seamless communication with PLCs, DCS, and SCADA systems, enabling energy-efficient motor control and real-time performance optimization in demanding industrial environments.

Technical Parameters

1. Hardware Specifications:
   • Input Voltage: 3-phase AC 380–480V (±10%), 50/60 Hz.
   • Output Power: Up to 5.5 kW (7.5 HP) with dynamic torque control.
   • Current Rating: 12 A continuous, 18 A overload (for 60 seconds).
   • Control Interface:
     • Analog inputs (0–10V, 4–20mA) for speed/torque reference.
     • Digital I/O for start/stop, direction, and fault signals.
   • Communication Protocols:
     • Built-in Modbus RTU/TCP, PROFIBUS DP, and CANopen for system integration.
     • Optional Ethernet/IP or PROFINET via add-on modules.
   • Cooling: Forced-air cooling with thermal overload protection.
   • Environmental Tolerance:
     • Operating Temperature: -10°C to +50°C (derating above +40°C).
     • Humidity: 5–95% non-condensing.
     • Protection Rating: IP20 for cabinet-mounted installations.
2. Functional Capabilities:
   • Adaptive Motor Control: Sensorless vector control for precise speed (±0.1% accuracy) and torque regulation.
   • Energy Optimization: Auto-tuning and ECO mode to reduce power consumption during partial loads.
   • Safety Features: Safe Torque Off (STO) and Safe Stop (SS1) compliant with SIL 3/PLe safety standards.
   • Diagnostics: Real-time monitoring of motor temperature, current, voltage, and fault logs via HMI or software.
   • Customizable Profiles: Pre-programmed application macros (e.g., pump, fan, hoist) for rapid deployment.
   • Firmware Updates: Field-upgradable firmware via USB or network interfaces.
3. Certifications and Compliance:
   • CE, UL, and cULus listed for global compliance.
   • EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.
   • RoHS and REACH compliant for environmental safety.

Key Applications
The DCF503-0050 is ideal for industries requiring robust motor control, including:

• Manufacturing: Conveyor belt speed synchronization and CNC machine spindle control.
• Water & Wastewater: Pump control for pressure and flow regulation.
• HVAC Systems: Fan and compressor speed modulation for energy savings.
• Mining & Minerals: Crusher and conveyor motor management in harsh environments.

Conclusion
The DCF503-0050 by ABB combines advanced motor control algorithms, energy efficiency, and industrial-grade durability to deliver reliable performance in diverse automation scenarios. Its flexible communication options, safety compliance, and user-friendly configuration make it a cornerstone for modern drive systems, enhancing productivity and reducing operational costs across industries.
