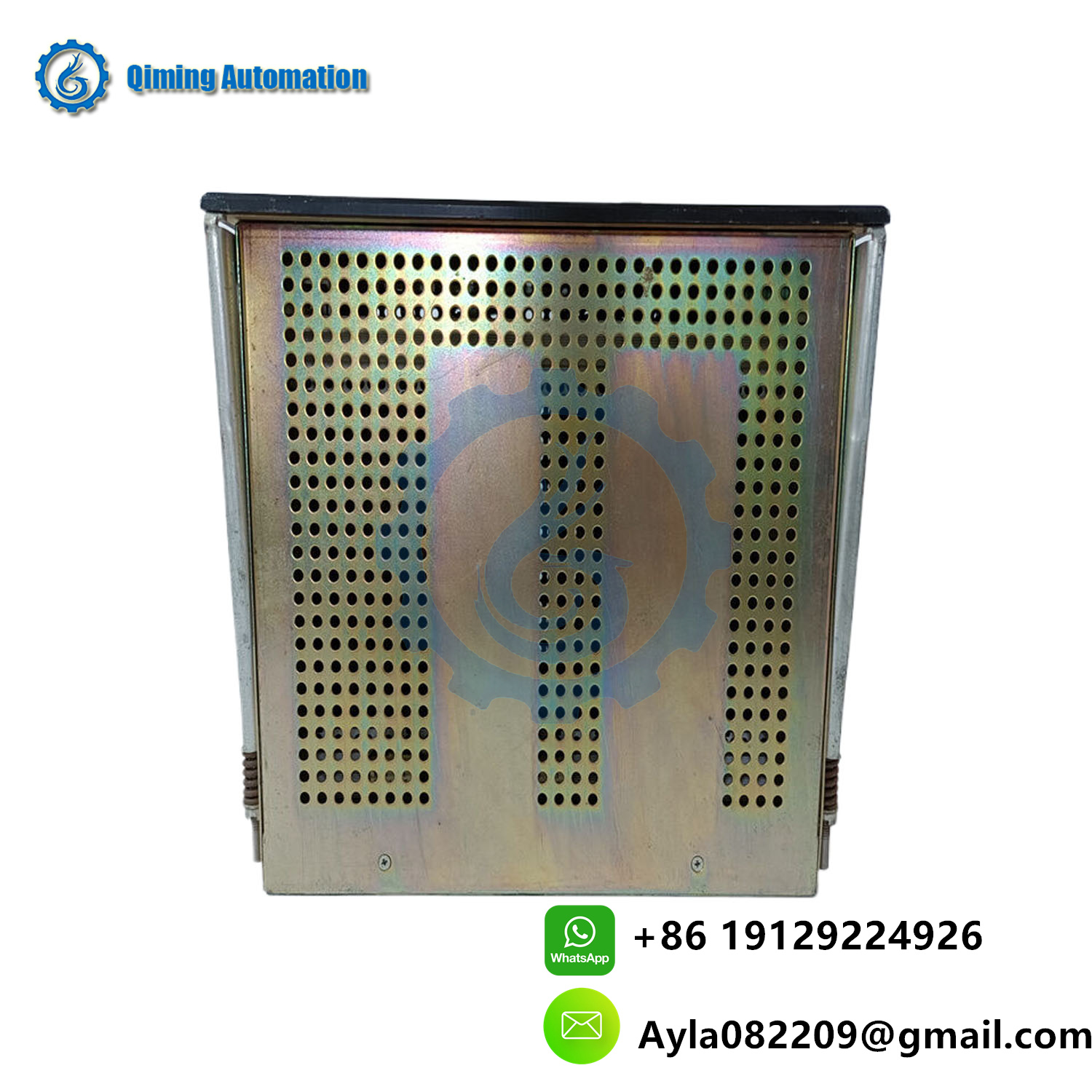

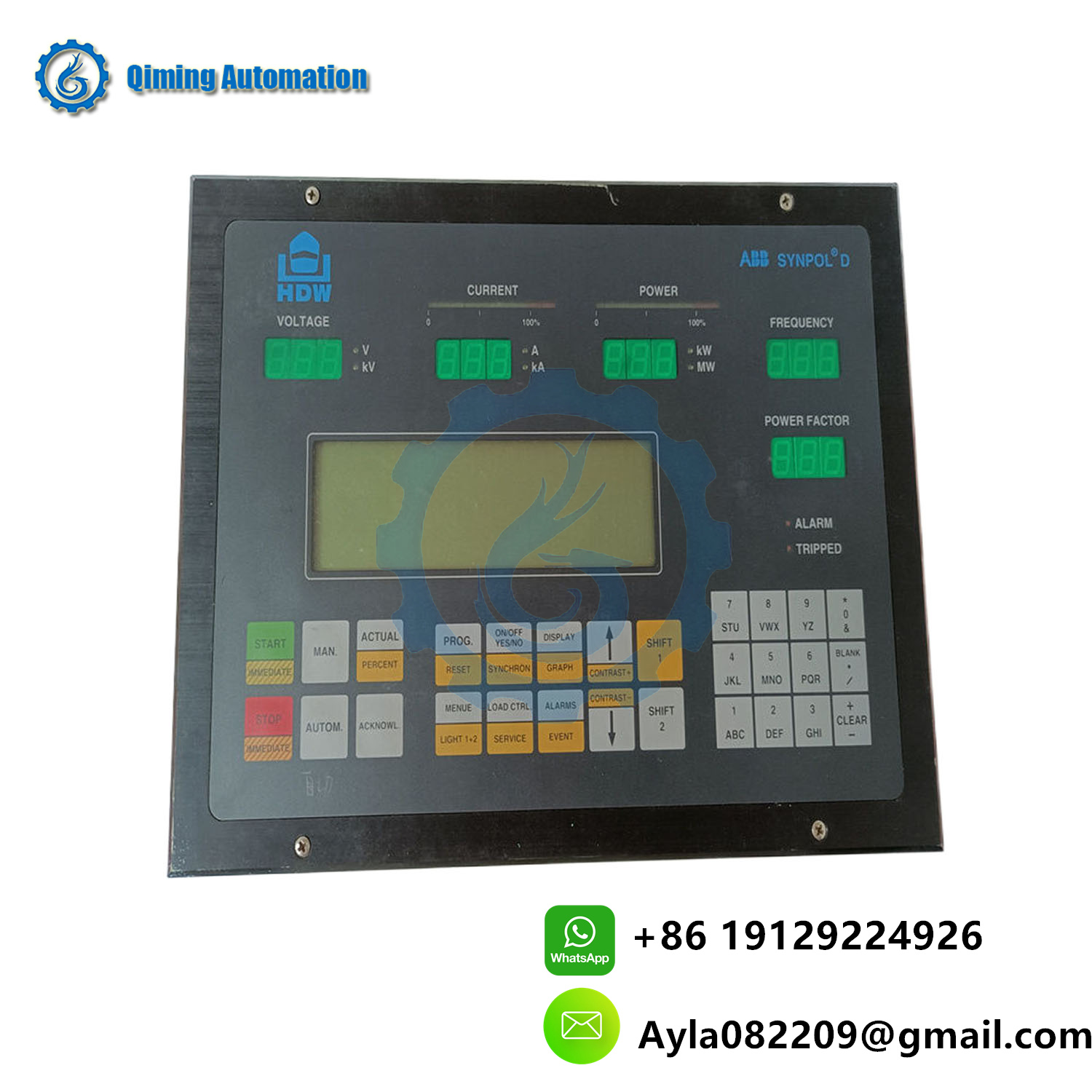

CMA120 Motor protection and control device ABB

ABB CMA120: Product Overview

The CMA120 is a modular motor protection and control device from ABB’s Compact Modular Assembly (CMA) series, designed for safeguarding low-voltage motors in industrial and commercial applications. This versatile unit integrates overload protection, short-circuit protection, and motor control functionalities into a compact, DIN rail-mounted package. It is widely used in HVAC systems, pumps, fans, and conveyor belts to ensure reliable motor operation, minimize downtime, and enhance energy efficiency.

Technical Parameters

1. Electrical Ratings:
   • Rated Current: 0.1–12 A (adjustable trip range).
   • Supply Voltage: 24 V DC or 100–240 V AC (±10%).
   • Short-Circuit Protection: Up to 100 kA breaking capacity (when paired with ABB circuit breakers).
   • Standards: IEC/EN 60947-4-1, UL 508.
2. Protection Features:
   • Thermal Overload Protection: Class 10/20 trip curves (selectable).
   • Phase Loss/Imbalance Detection: Prevents motor damage due to unbalanced currents.
   • Locked Rotor Protection: Trips on prolonged start-up stalling.
3. Control & Monitoring:
   • Start/Stop Control: Direct control via integrated relay outputs.
   • Status Indication: LED indicators for power, trip, and readiness.
   • Auxiliary Contacts: 1 NO + 1 NC for remote signaling.
4. Communication & Integration:
   • Optional Communication Modules: Supports Modbus RTU, PROFIBUS DP, or Ethernet/IP.
   • Compatibility: Integrates with ABB MNS® and System Pro M® switchgear.
5. Environmental Specifications:
   • Operating Temperature: -25°C to +60°C.
   • Ingress Protection: IP20 (enclosure), IP40 (front panel).

Key Functions

1. Motor Protection:
   • Adaptive Thermal Model: Mimics motor heating based on load and ambient conditions.
   • Ground Fault Monitoring: Optional module for residual current detection.
2. Control Flexibility:
   • Manual/Auto Reset: Configurable after trip events.
   • Local/Remote Operation: Compatible with PLCs or SCADA systems.
3. Diagnostics & Maintenance:
   • Trip History Storage: Records last 5 fault events with timestamps.
   • Test Mode: Simulates fault conditions for system validation.
4. Energy Efficiency:
   • Load Monitoring: Identifies underloaded conditions to optimize energy use.

System Applications

1. Industrial Automation:
   • Protects motors in assembly lines, packaging machines, and material handling systems.
   • Interfaces with ABB ACS drives for variable speed control.
2. Building Services:
   • Manages HVAC compressors, cooling tower fans, and water circulation pumps.
   • Integrates with building management systems (BMS) via BACnet or Modbus.
3. Water & Wastewater:
   • Safeguards submersible pumps and aeration blowers against overloads.
4. Renewable Energy:
   • Controls motors in biogas plants or solar tracking systems.

Configuration & Tools

• Software: Configured via ABB Drivesize or Automation Builder for parameter tuning and logic customization.
• Modular Design: Expandable with auxiliary contact blocks, communication modules, or voltage monitors.

Advantages

• Space-Saving: Compact design for crowded control panels.
• Easy Installation: Tool-free DIN rail mounting and plug-in terminals.
• Cost-Effective: Reduces need for external relays and protection devices.
