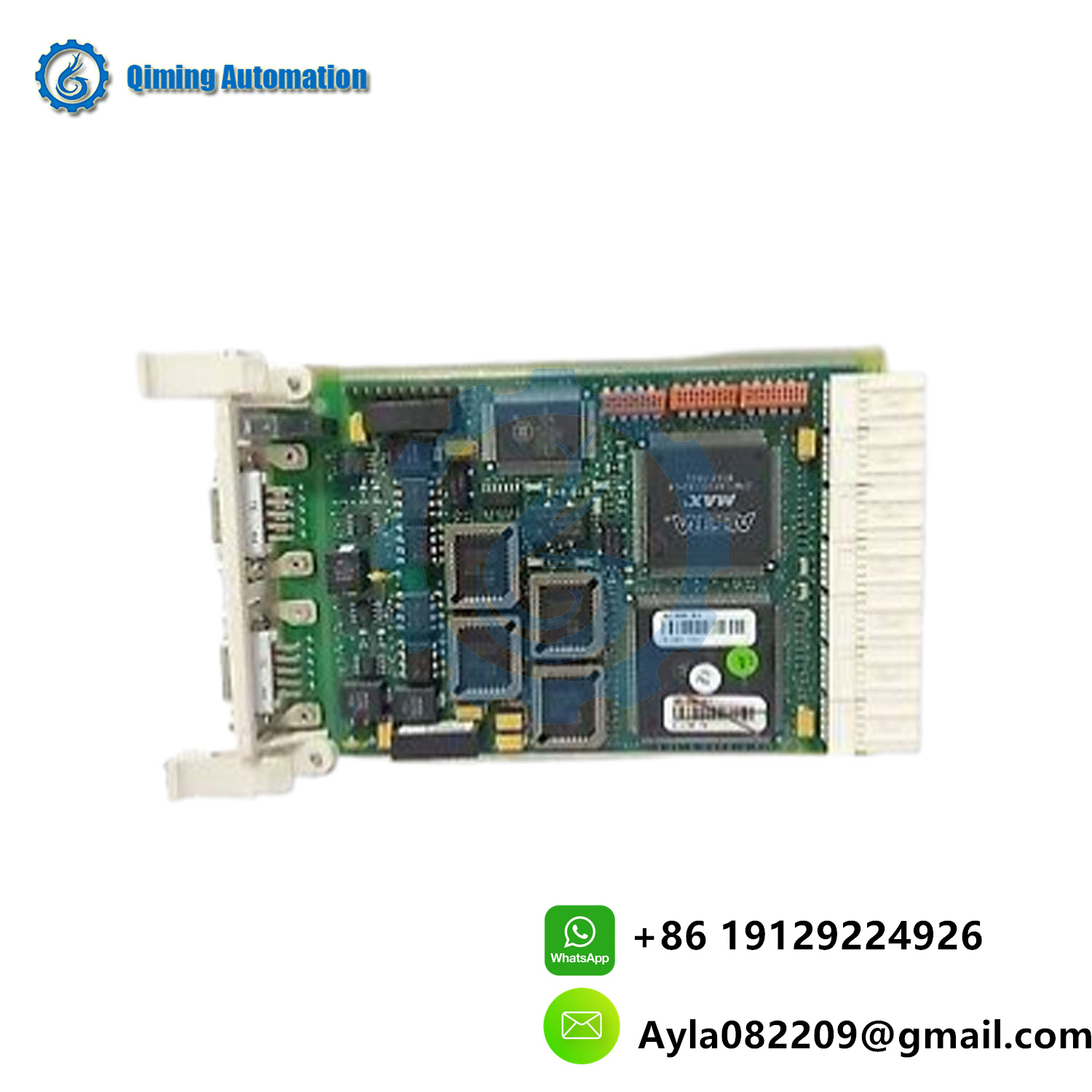

CI541V1 3BSE014666R1 ABB communication interface module

Here’s a detailed technical and functional overview of the ABB CI541V1 (3BSE014666R1), a communication interface module commonly used in industrial automation systems. This device is part of ABB’s AC 800M controller family or related automation platforms, designed to enable seamless communication between controllers and field devices.

ABB CI541V1 (3BSE014666R1): Technical Parameters

1. General Specifications

• Device Type: Communication Interface Module (for industrial controllers).
• Compatibility: Integrates with ABB AC 800M series controllers and S800 I/O systems.
• Power Supply:
  • Voltage: Typically 24 V DC (standard for industrial control systems).
  • Power Consumption: ~5 W (varies based on configuration).
• Operating Temperature: 0°C to +60°C (32°F to 140°F).
• Storage Temperature: -40°C to +85°C (-40°F to 185°F).
• Humidity: 5–95% RH (non-condensing).
• Certifications: Complies with CE, UL, and IEC 61131 standards.

2. Communication Features

• Supported Protocols:
  • Profibus DP (slave or master functionality).
  • Modbus RTU/TCP (depending on firmware and configuration).
  • Integration with ABB’s Industrial IT/800xA systems.
• Data Transfer Rates:
  • Profibus DP: Up to 12 Mbps.
  • Modbus: Configurable baud rates (e.g., 9.6 kbps to 115.2 kbps).
• Redundancy: Supports redundant communication paths for high availability.
• Addressing: Configurable node addresses via DIP switches or software.

3. Hardware Interfaces

• Connectors:
  • Profibus DP: 9-pin D-Sub connector (RS485).
  • Power Terminal: Screw terminals for 24 V DC input.
• LED Indicators:
  • Status LEDs for power, communication activity, and fault alerts.
• Mounting: Designed for DIN rail installation in control cabinets.

4. Configuration & Diagnostics

• Configuration Tools:
  • Configured via ABB’s Control Builder M or Automation Builder software.
  • Predefined function blocks for protocol setup and data mapping.
• Diagnostics:
  • Real-time monitoring of communication health (e.g., packet loss, signal integrity).
  • Event logging for troubleshooting connectivity issues.

Functional Capabilities

1. Protocol Conversion
   • Acts as a gateway between ABB controllers (e.g., AC 800M) and Profibus DP or Modbus field devices (sensors, drives, I/O modules).
   • Enables data exchange for process variables, alarms, and control commands.
2. Scalable Integration
   • Supports integration with third-party devices (e.g., Siemens, Schneider) via Profibus or Modbus.
   • Facilitates expansion of automation networks by adding remote I/O stations.
3. High Reliability
   • Redundant Communication: Optional redundancy configurations to minimize downtime in critical processes.
   • Error Detection: Built-in CRC checks and timeout monitoring for data integrity.
4. Real-Time Data Exchange
   • Synchronizes data between the controller and field devices with minimal latency.
   • Enables precise control loops for applications like process control and motion systems.
5. Flexible Addressing
   • Supports dynamic addressing for up to 125 nodes on a Profibus DP network.

Typical Applications

• Process Automation: Integration of PLCs, drives, and sensors in chemical, oil & gas, or water treatment plants.
• Manufacturing Systems: Communication between ABB controllers and robotic arms, conveyor systems, or CNC machines.
• Energy Management: Data acquisition from smart meters or grid equipment via Modbus.
• Building Automation: HVAC control and monitoring in large facilities.

Key Advantages

• Interoperability: Bridges ABB and third-party systems, reducing vendor lock-in.
• Robust Design: Built for harsh industrial environments with high EMI resistance.
• Ease of Use: Simplified configuration via ABB’s engineering tools.
• Future-Proof: Firmware-upgradable to support evolving communication standards.
