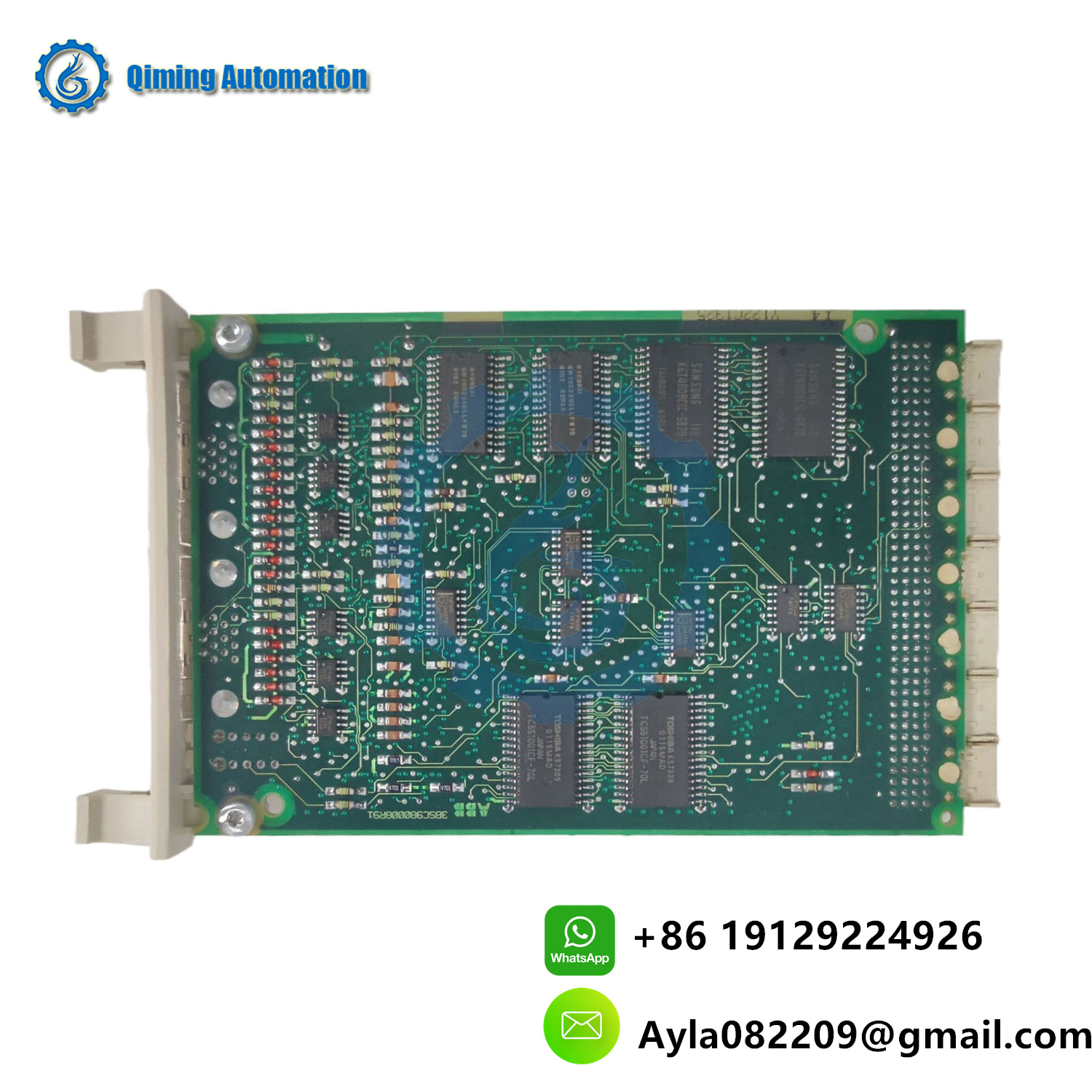

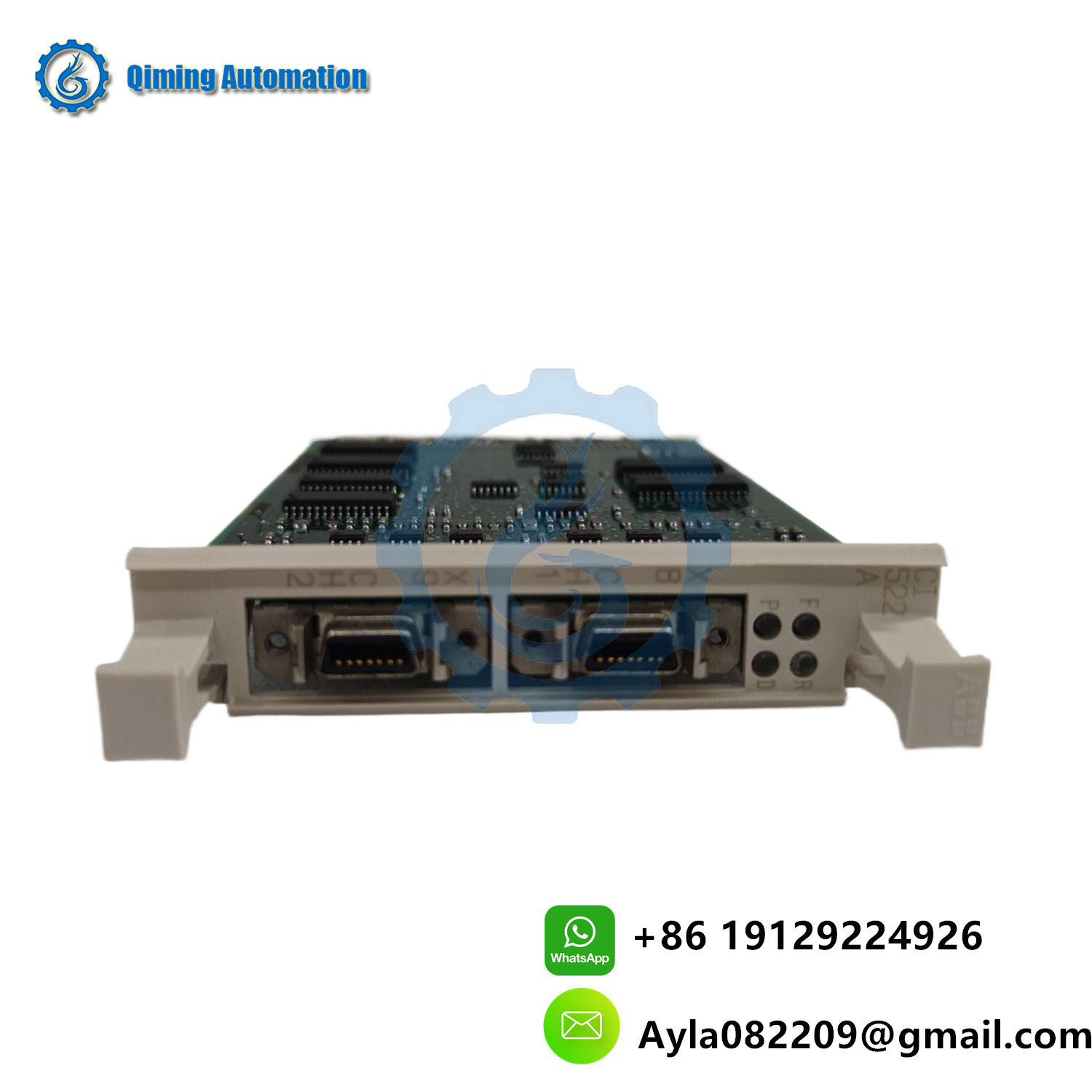

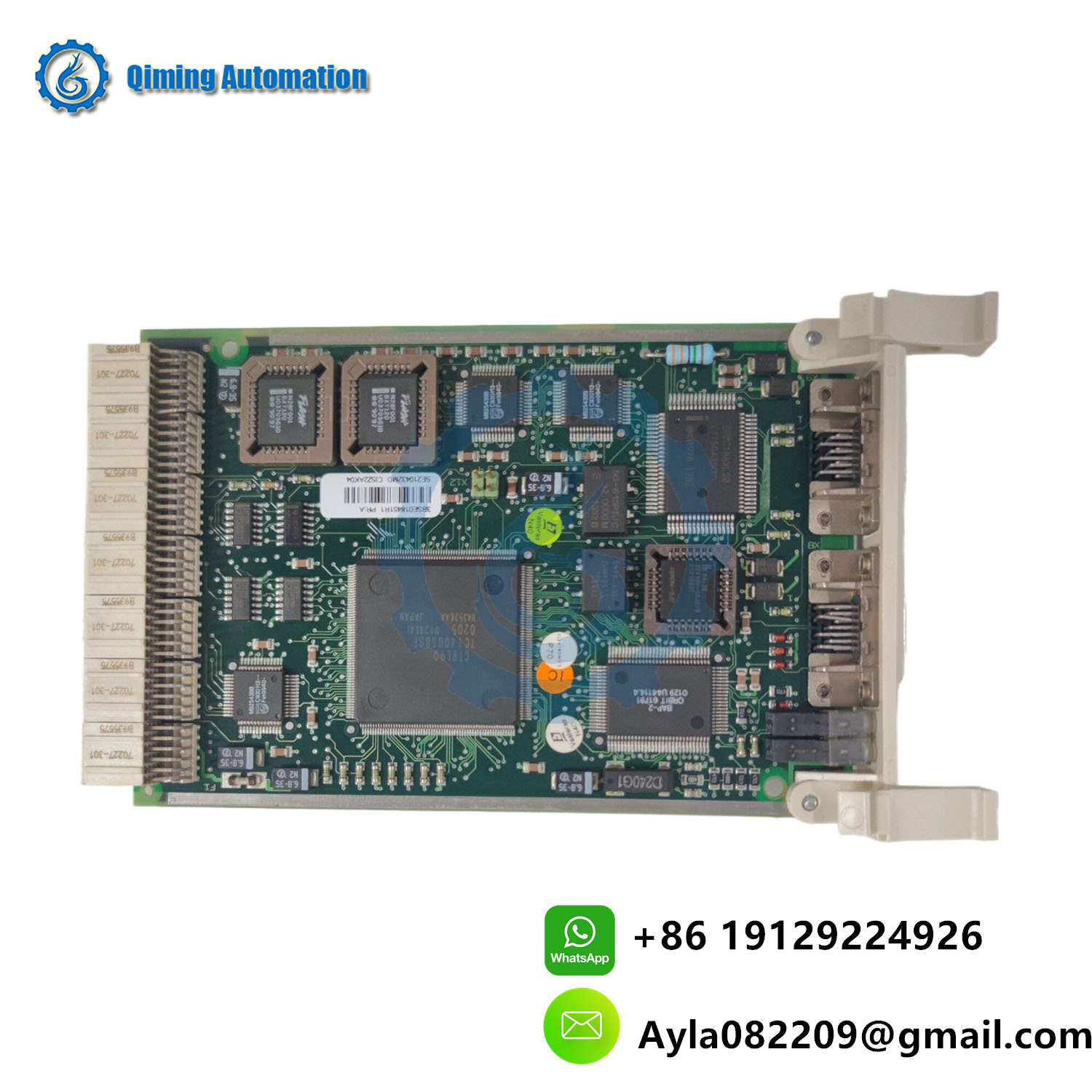

CI522AK04 3BSE018451R1 ABB communication interface module

The CI522AK04 3BSE018451R1 is a high-performance industrial automation module developed by ABB, designed for seamless integration into advanced control systems such as System 800xA or AC 800M platforms. This module serves as a critical interface for signal processing, data acquisition, and communication in demanding industrial environments, ensuring reliability and precision across industries like power generation, oil and gas, and manufacturing.

Key Features

1. Core Functionality
   • Acts as a versatile I/O (Input/Output) module or signal conditioner, bridging field devices (sensors, actuators) with centralized control systems.
   • Supports analog and digital signal processing for flexible integration into diverse automation architectures.
   • Equipped with galvanic isolation to protect against electrical noise and ensure signal integrity.
2. Technical Specifications
   • Input/Output (I/O) Channels:
     • Analog Inputs: Configurable for voltage (0-10V) or current (4-20mA) signals.
     • Digital I/O: 24V DC logic for discrete signal handling (e.g., switches, relays).
   • Communication Protocols:
     • Compatible with Profibus DP, Modbus TCP/IP, and Ethernet/IP for interoperability with PLCs, SCADA, and third-party systems.
     • Supports real-time data exchange via ABB’s proprietary communication stacks for System 800xA integration.
   • Operating Voltage: 24V DC (±10%) with surge protection and reverse polarity safeguards.
   • Environmental Robustness:
     • Operating Temperature: -25°C to +70°C.
     • Resistance to vibration (up to 5g), humidity (5–95% non-condensing), and EMI/RFI interference.
3. Applications
   • Power Plants: Turbine control, grid stability monitoring, and substation automation.
   • Oil and Gas: Pipeline pressure monitoring, safety shutdown systems, and offshore platform control.
   • Manufacturing: Robotic assembly lines, process automation, and quality assurance systems.
   • Water Treatment: Flow regulation, pump control, and chemical dosing management.
4. Design and Integration
   • Modular Design: Compact, DIN-rail mountable form factor for easy installation in control cabinets or ABB’s S800 I/O racks.
   • Hot-Swappable: Enables maintenance or replacement without system downtime.
   • Redundancy Support: Optional redundant configurations for mission-critical applications requiring fail-safe operation.
   • Diagnostic LEDs: Visual indicators for power, communication status, and fault detection.
5. Compatibility
   • Fully integrated with ABB’s System 800xA and AC 800M controllers for centralized control and diagnostics.
   • Configurable via ABB engineering tools such as Control Builder M or Automation Builder, streamlining setup and firmware updates.
   • Compatible with third-party devices through open industrial protocols.

Ordering Information

• Model Number: CI522AK04 3BSE018451R1
• Revision Code: “R1” denotes the first hardware/software revision, ensuring traceability for replacements or upgrades.

Why Choose This Module?

• ABB’s Industrial Expertise: Built to withstand harsh conditions while maintaining precision and reliability.
• Scalability: Integrates seamlessly into existing ABB ecosystems, supporting future expansions or retrofits.
• Global Support: Access to ABB’s technical documentation, firmware updates, and worldwide service network.
• Compliance: Meets international standards for industrial safety and electromagnetic compatibility (EMC).

Note for Users

• Installation: Follow ABB’s guidelines for wiring, grounding, and environmental conditions to ensure optimal performance.
• Lifecycle Status: Verify the module’s availability (active/legacy) with ABB, as newer equivalents (e.g., CI532 or CI871K01) may be recommended for modern systems.
• Documentation: Refer to the ABB Product Manual (3BSE018451R1) for detailed schematics, configuration parameters, and safety instructions.
