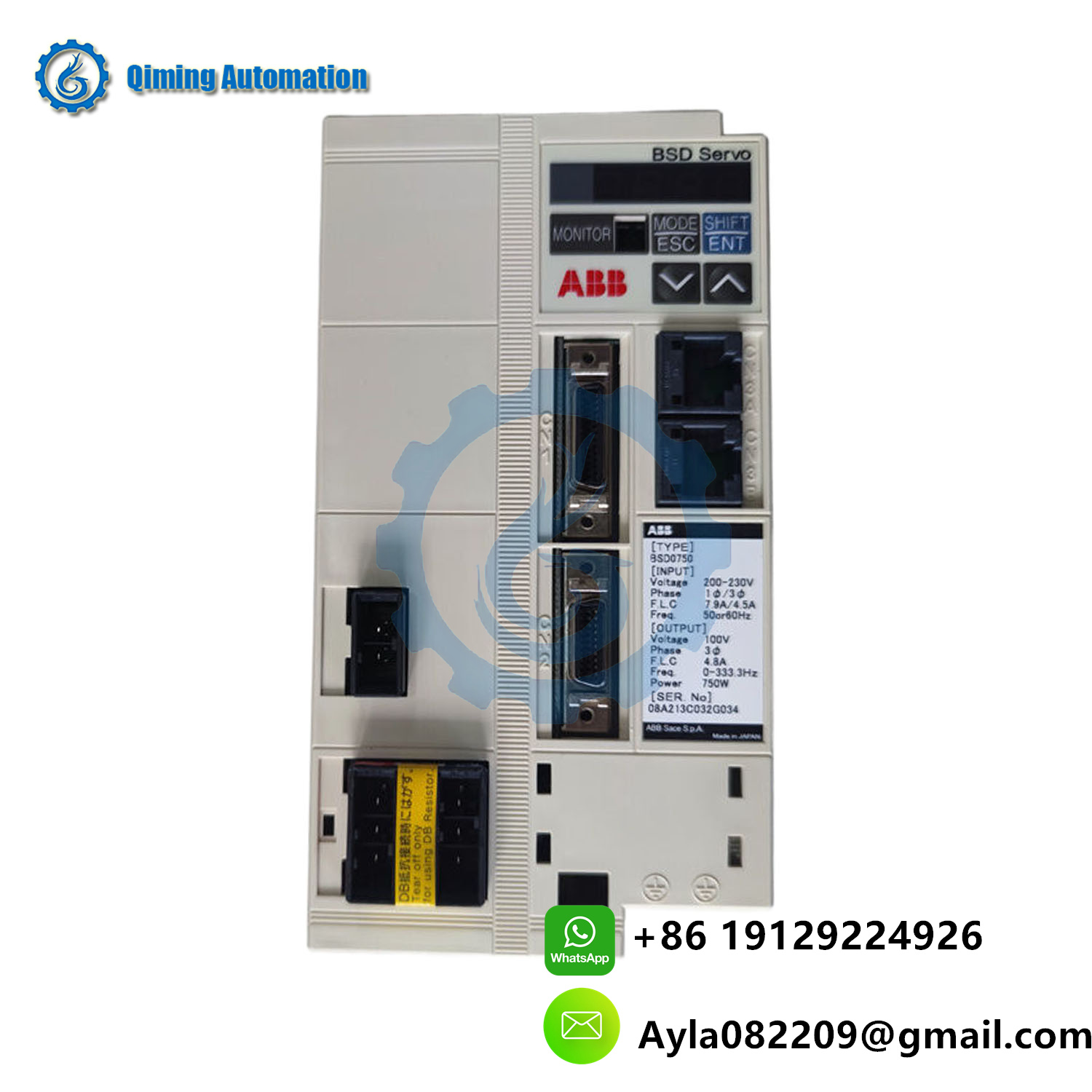

The BSD0750 is a soft starter or motor control device manufactured by ABB, a global leader in power and automation technologies. Designed to manage the smooth starting and stopping of electric motors, this device helps reduce mechanical stress, minimize inrush currents, and enhance the longevity of motors and connected machinery. While specific technical details for the BSD0750 variant may vary, it is typically part of ABB’s soft starter portfolio, such as the PSR or ACH500 series, tailored for industrial and commercial applications.
Key Features
- Motor Protection
- Limits inrush current during motor startup, preventing grid instability and protecting motor windings.
- Offers overload, phase imbalance, and under/overvoltage protection.
- Adjustable Start/Stop Profiles
- Configurable ramp-up and ramp-down times for torque control, enabling smooth acceleration and deceleration.
- Reduces mechanical shock in applications like pumps, conveyors, or compressors.
- Compact and Robust Design
- Built for industrial environments with resistance to temperature fluctuations (-25°C to +60°C), humidity, and vibrations.
- Space-saving design for easy integration into control panels or motor control centers (MCCs).
- User-Friendly Interface
- Includes intuitive control knobs, LED indicators, or digital displays (depending on model) for parameter adjustments and diagnostics.
- May support communication protocols like Modbus RTU for integration with PLCs or SCADA systems.
- Energy Efficiency
- Optimizes energy consumption by reducing mechanical wear and electrical stress during motor operation.
Technical Specifications (Typical)
- Rated Power: Suitable for motors up to 7.5 kW (10 HP) (exact rating depends on voltage and model variant).
- Voltage Range: 208–480 V AC, 3-phase.
- Current Rating: Up to 30 A (adjustable based on motor load).
- Enclosure Rating: IP20 (standard) or IP54 for dust/water protection.
- Control Method: Voltage ramp, current limit, or torque control.
Applications
The BSD0750 is ideal for industries requiring controlled motor startup and protection, such as:
- Water/Wastewater: Pump control to prevent water hammer.
- HVAC: Fan and compressor management.
- Manufacturing: Conveyor belts, mixers, and crushers.
- Mining & Construction: Hoists and ventilation systems.
Compatibility
- Works with 3-phase induction motors across various industries.
- Compatible with ABB’s ACS series variable speed drives (VSDs) for hybrid control systems.
- Integrates with ABB’s Automation Builder or third-party PLCs via communication modules.
Installation & Configuration
- Mounting: DIN rail or panel-mounted.
- Wiring: Connect motor, power supply, and control signals as per the wiring diagram.
- Parameter Setup: Adjust startup time, current limit, and protection thresholds via dip switches or interface.
- Testing: Validate performance using manual or automatic start modes.
Ordering Information
- Part Number: BSD0750
- Manufacturer: ABB
- Series: Likely part of ABB’s soft starter family (e.g., PSR).
Advantages
- Extended Equipment Life: Reduces wear on motors, belts, and gears.
- Cost Savings: Lowers energy consumption and maintenance costs.
- Versatility: Suitable for diverse motor-driven applications.
