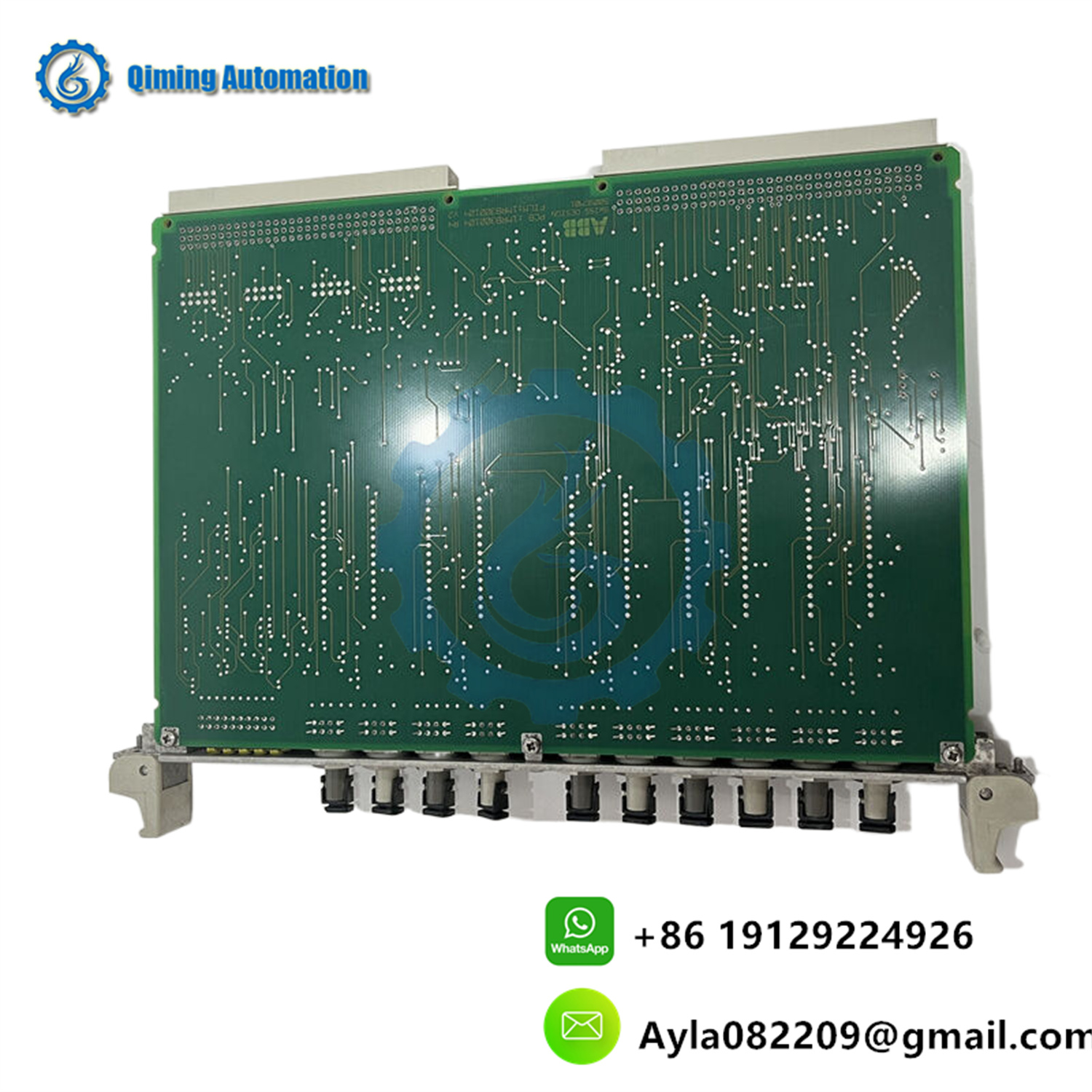

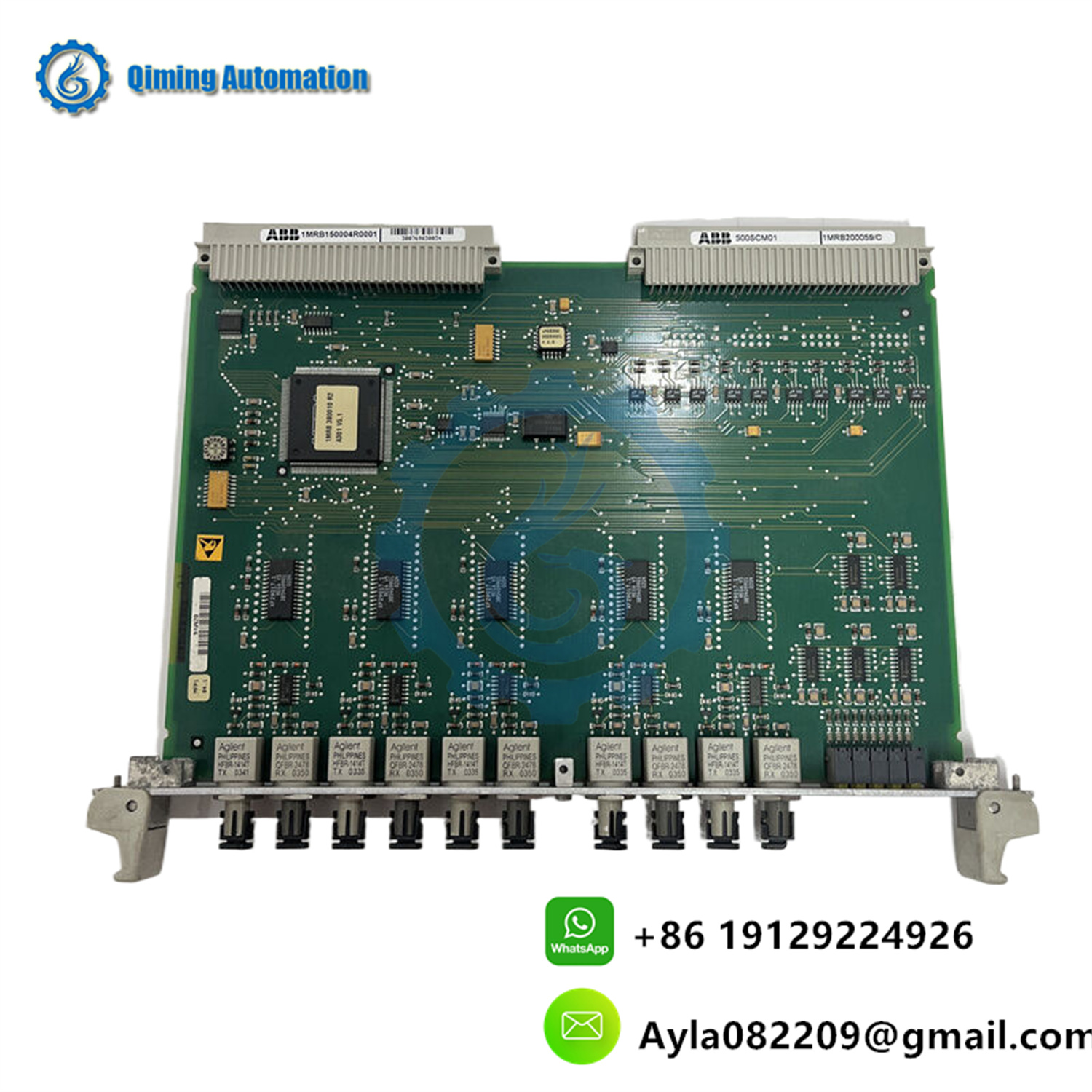

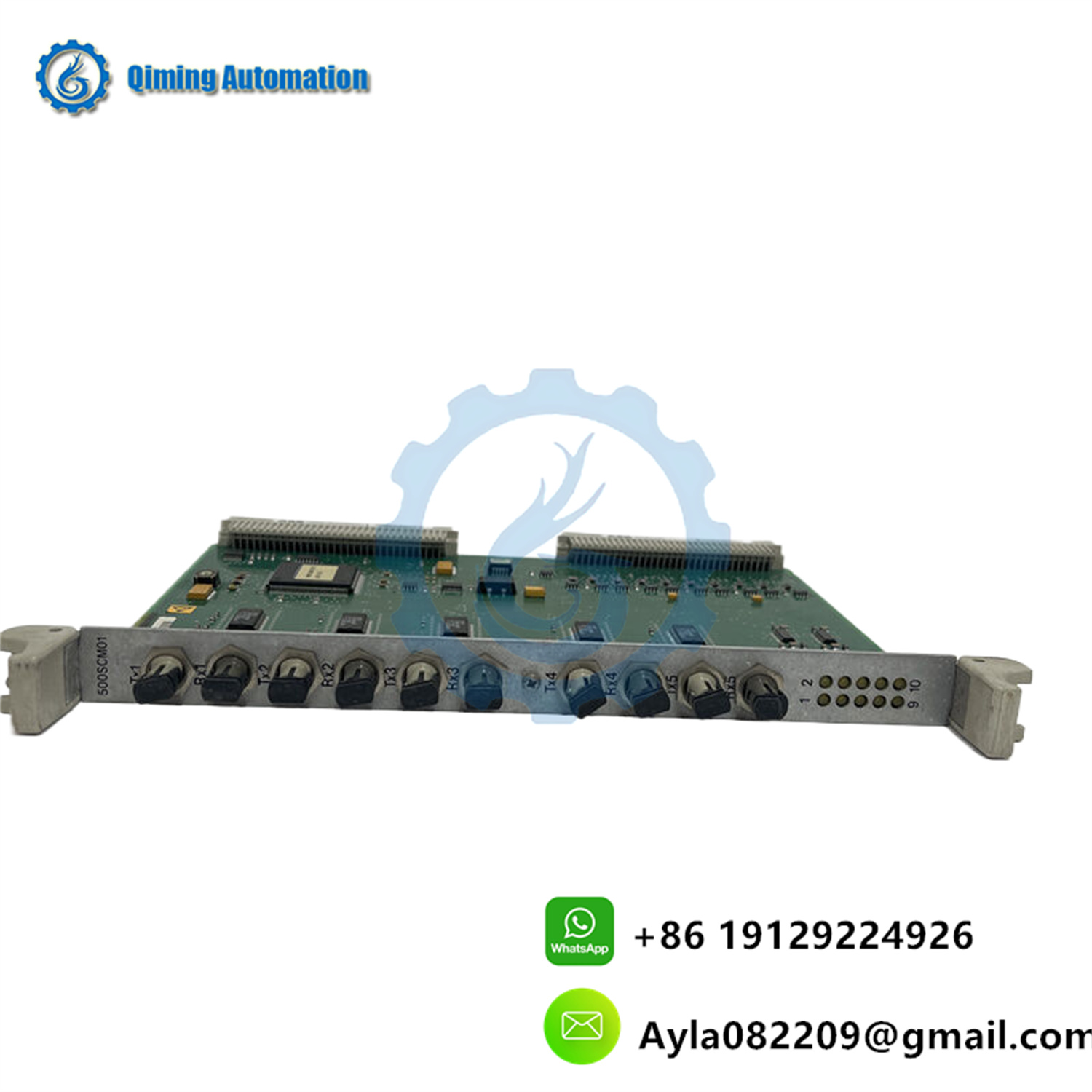

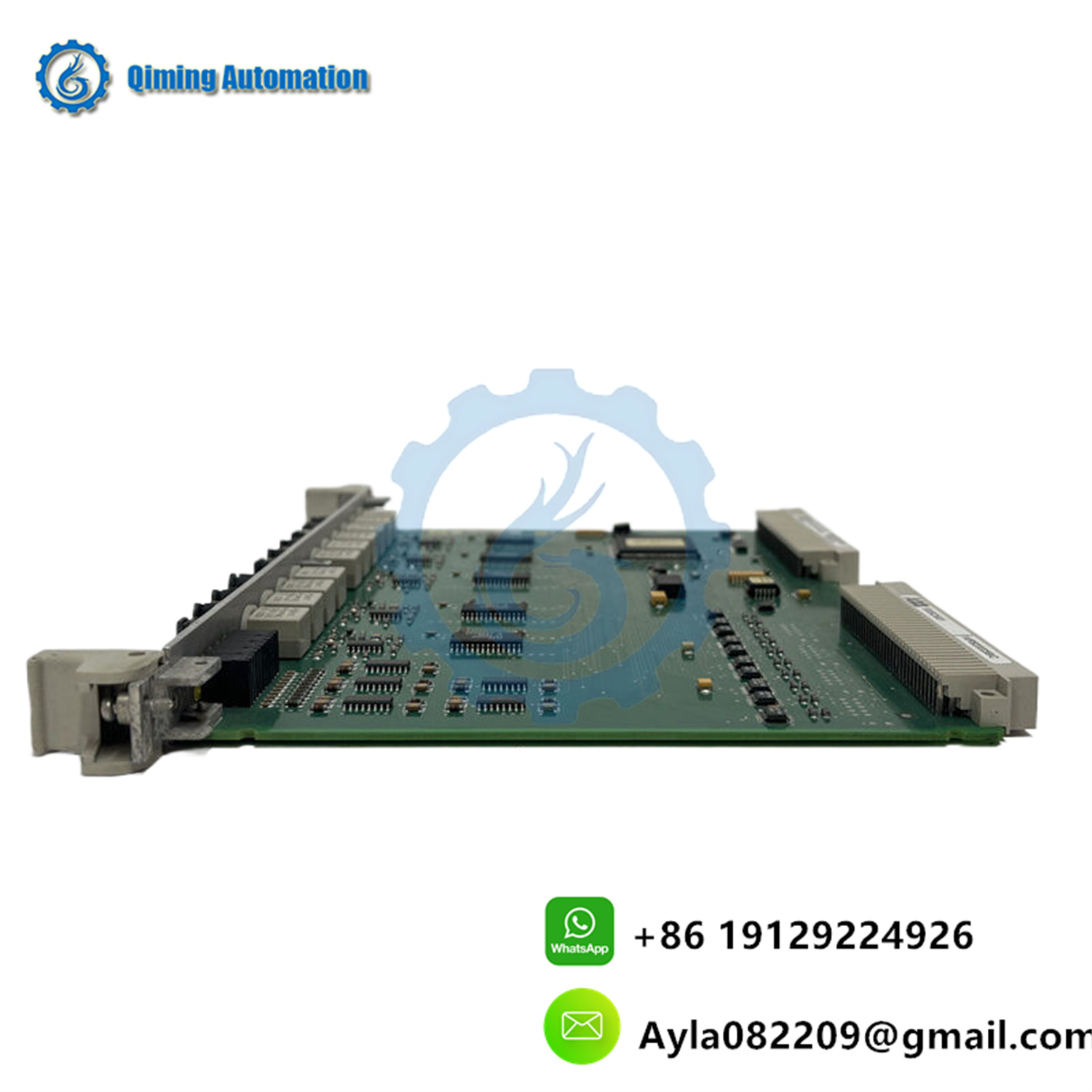

ABB Relion ® 500 series signal conditioning module 500SCM01

ABB 500SCM01: Product Overview

The 500SCM01 is a Signal Conditioning Module from ABB’s Relion® 500 series, designed to process and manage analog and digital signals in substation automation and industrial control systems. This module acts as an interface between field devices (e.g., sensors, transducers) and protection relays or control units, ensuring accurate signal conversion, isolation, and noise filtering. It is widely used in power transmission networks, smart grids, and industrial automation to enhance signal integrity, simplify system integration, and comply with standards like IEC 61850 and IEEE 1613.

Technical Parameters

1. Electrical Specifications:
   • Power Supply: 24–250 V DC or 100–240 V AC (±15%).
   • Input Channels:
     • Analog Inputs: 8 channels, configurable for 4–20 mA, 0–10 V DC, or ±10 V DC.
     • Digital Inputs: 16 opto-isolated inputs (24–250 V DC, dry/wet contact).
   • Output Channels:
     • Analog Outputs: 4 channels, 4–20 mA or 0–10 V DC.
     • Digital Outputs: 8 relay contacts (5 A, 250 V AC).
   • Isolation: 2.5 kV AC between field and system sides.
2. Communication & Protocols:
   • Integration: Supports IEC 61850 (GOOSE/MMS), IEC 60870-5-103/104, Modbus RTU/TCP.
   • Ports: 2x Ethernet (RJ45), 1x RS485, optional fiber-optic (ST/LC).
3. Environmental Ratings:
   • Operating Temperature: -40°C to +85°C.
   • Humidity: 5–95% (non-condensing).
   • Certifications: IEC 60255, UL 508, CE, IEEE 1613 (EMC).
4. Mechanical Design:
   • Mounting: DIN rail or panel-mounted.
   • Dimensions: 150 x 100 x 75 mm (compact for high-density installations).

Key Functions

1. Signal Conditioning:
   • Converts and scales analog signals (e.g., temperature, pressure) for compatibility with control systems.
   • Provides galvanic isolation to eliminate ground loops and electromagnetic interference (EMI).
2. Noise Filtering & Linearization:
   • Filters high-frequency noise from sensor signals using low-pass filters.
   • Linearizes non-linear signals (e.g., thermocouples) via software algorithms.
3. Diagnostics & Monitoring:
   • Channel Health Monitoring: Detects open circuits, short circuits, and signal drift.
   • Self-Testing: Verifies module functionality during startup and operation.
4. Programmable Logic:
   • Embedded logic for custom signal processing (e.g., averaging, threshold alarms).
5. Redundancy & Hot-Swapping:
   • Supports redundant configurations for critical applications.
   • Modules can be replaced without system shutdown.

System Applications

1. Substation Automation:
   • Interfaces with current transformers (CTs), voltage transformers (VTs), and circuit breakers for real-time monitoring.
   • Integrates with ABB Relion® relays (e.g., 500PSM, 500TNS) via IEC 61850 GOOSE.
2. Industrial Control Systems:
   • Processes signals from pressure transmitters, flow meters, and motor sensors in chemical plants or water treatment facilities.
   • Connects to PLCs (e.g., ABB AC 800M) for automated process control.
3. Renewable Energy:
   • Manages sensor data in wind turbine pitch systems or solar farm inverters.
   • Ensures compliance with grid codes through precise signal conditioning.
4. Smart Grids:
   • Facilitates dynamic load management by converting analog grid data for SCADA systems.

Configuration & Tools

• Software: Configured via ABB PCM600 or Automation Builder for parameterization, signal mapping, and logic design.
• Cybersecurity: Implements TLS encryption and role-based access control (RBAC) for secure communication.

Advantages

• High Accuracy: 16-bit ADC/DAC resolution for precise signal conversion.
• Robustness: Designed for harsh environments (vibration, temperature extremes).
• Scalability: Modular expansion with additional I/O or communication modules.
