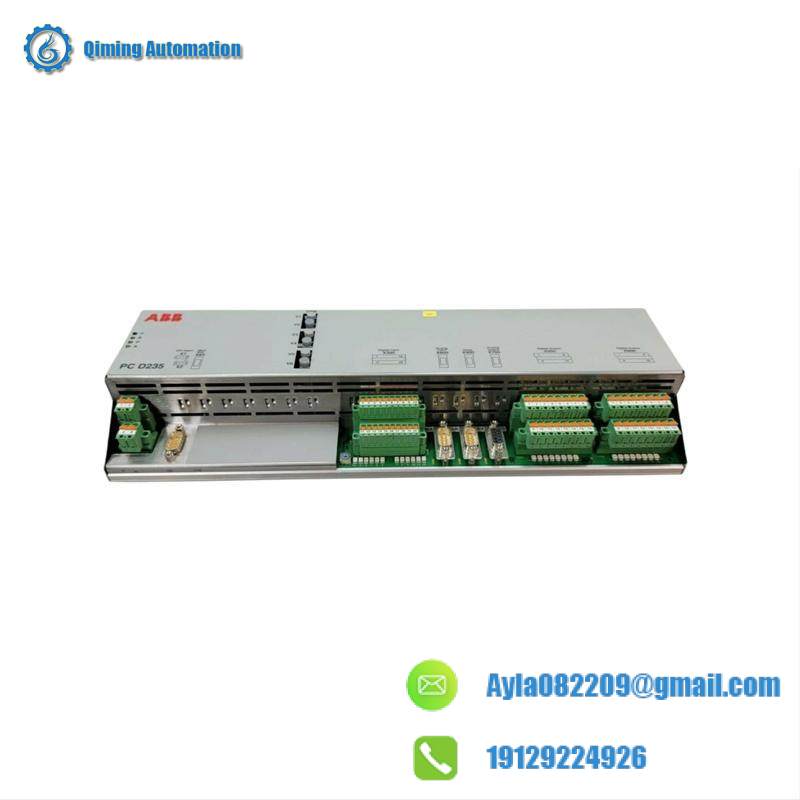

ABB PCD235B101 3BHE032025R0101

Guangzhou Qiming Automation Technology Co., Ltd.

As an authorized partner of ABB, Bently Nevada, Honeywell, and other industry leaders, we specialize in supplying premium industrial automation solutions with technical expertise and guaranteed authenticity.

Product Overview

The ABB PCD235B101 3BHE032025R0101 is a high-performance motor protection relay designed for industrial automation systems. With 8-channel input flexibility and HART communication capability, it ensures precise monitoring and diagnostics for motors up to 63A.

Technical Specifications

• ► Voltage Rating: 1000V AC
• ► Frequency Range: 45-65Hz
• ► Motor Current: 0.24-63A
• ► Tripping Levels: 5/10/20/30/40 (EN/IEC 60947-4-1)
• ► Input Types: 0-20mA/4-20mA/0-5V/1-5V DC
• ► Isolation: 8 channels group isolated
• ► Resolution: 12-bit ADC

Typical Applications

• ► Pump motor protection systems
• ► Compressor monitoring installations
• ► Conveyor belt motor control
• ► HVAC system protection
• ► Industrial fan monitoring
• ► Process automation networks
