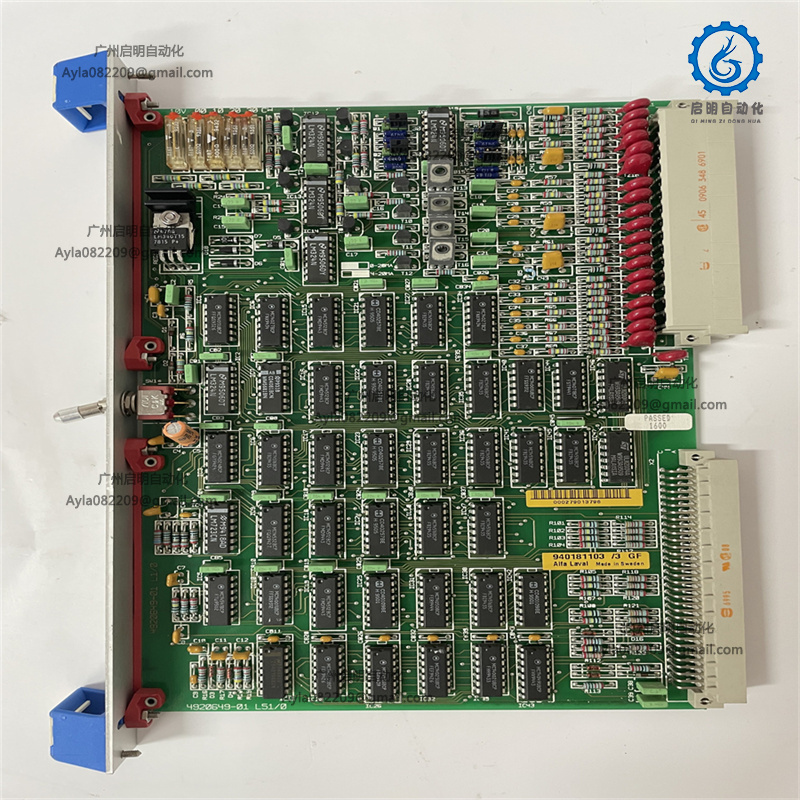

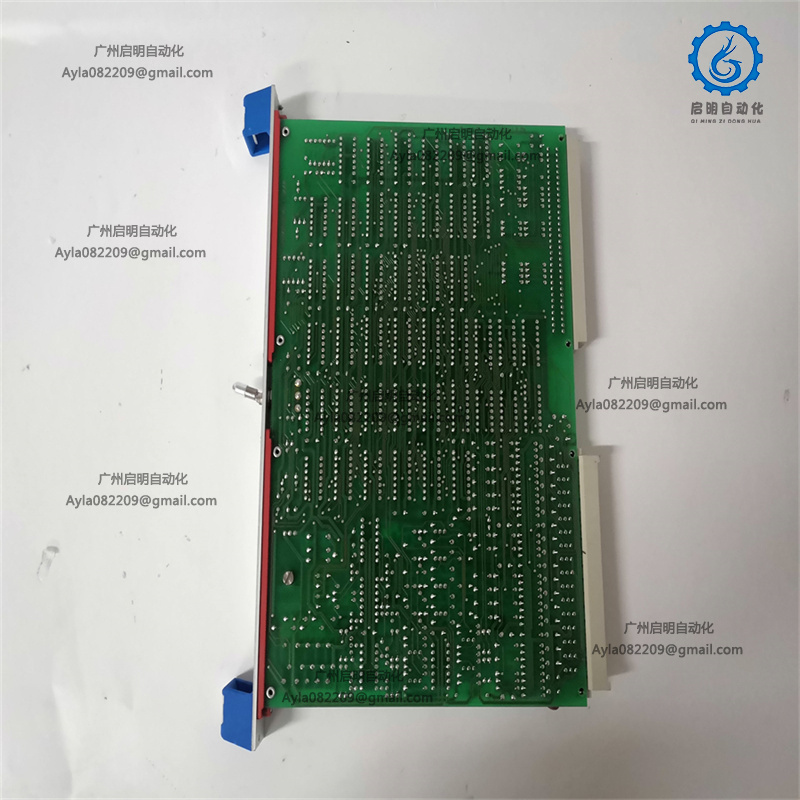

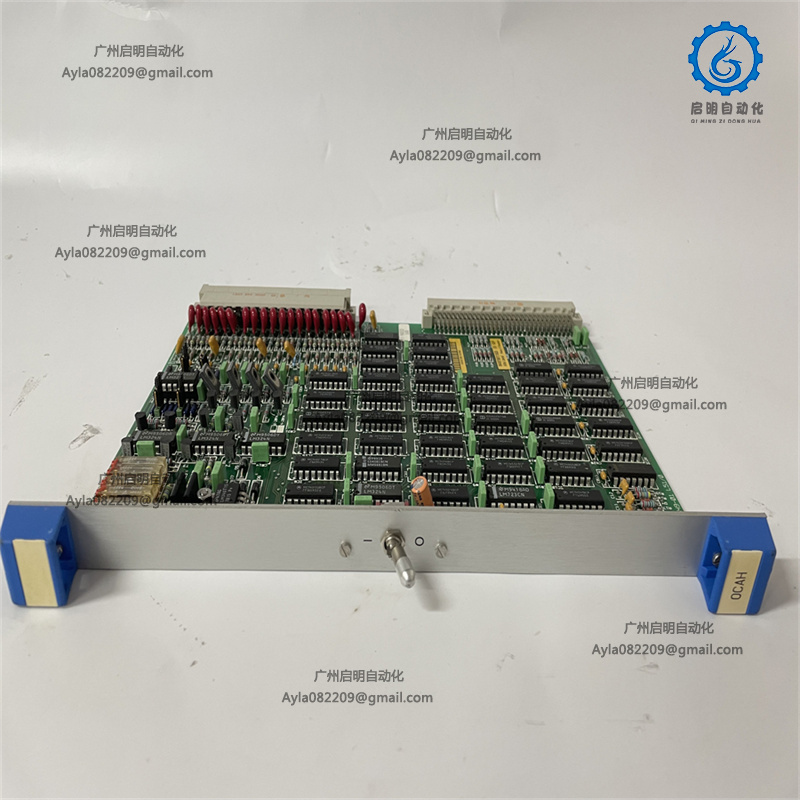

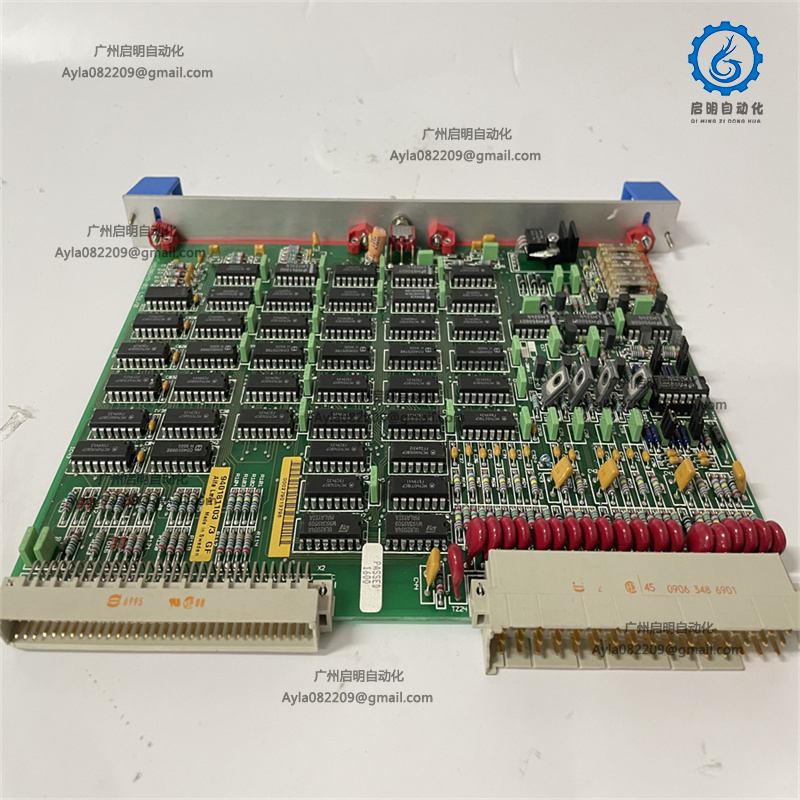

ABB OCAH 940181103 ANALOG INPUT TERMINAL BOARD

◆ Product Overview

The ABB OCAH 940181103 Analog Input Terminal Board is a critical component for precise signal acquisition in industrial automation systems. Designed for seamless integration with ABB’s excitation systems, it ensures high-accuracy voltage/current signal processing with galvanic isolation. This board supports real-time monitoring and control in power generation applications.

◆ Technical Parameters

• Input Channels: 8 differential/16 single-ended
• Signal Type: 4-20mA/0-10V/±10V
• Accuracy: ±0.1% FSD
• Resolution: 16-bit ADC
• Isolation Voltage: 1500V AC
• Operating Temp: -25°C to +70°C
• Power Supply: 24VDC ±10%
• Communication: RS-485 Modbus RTU
• Dimensions: 120mm × 80mm × 25mm

◆ Applications

• Generator excitation systems
• Power plant control systems
• Industrial process automation
• Turbine control units
• HVDC transmission systems
