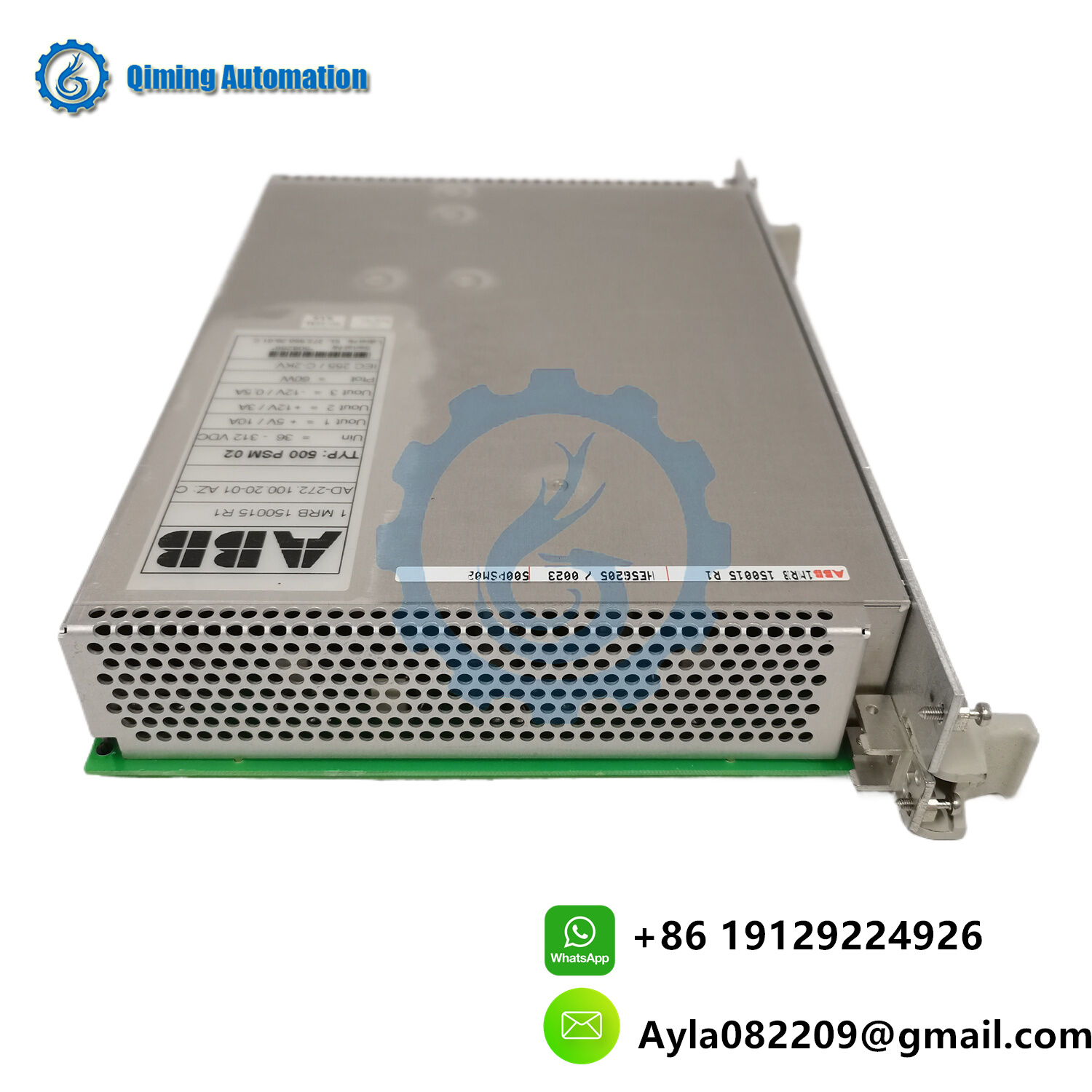

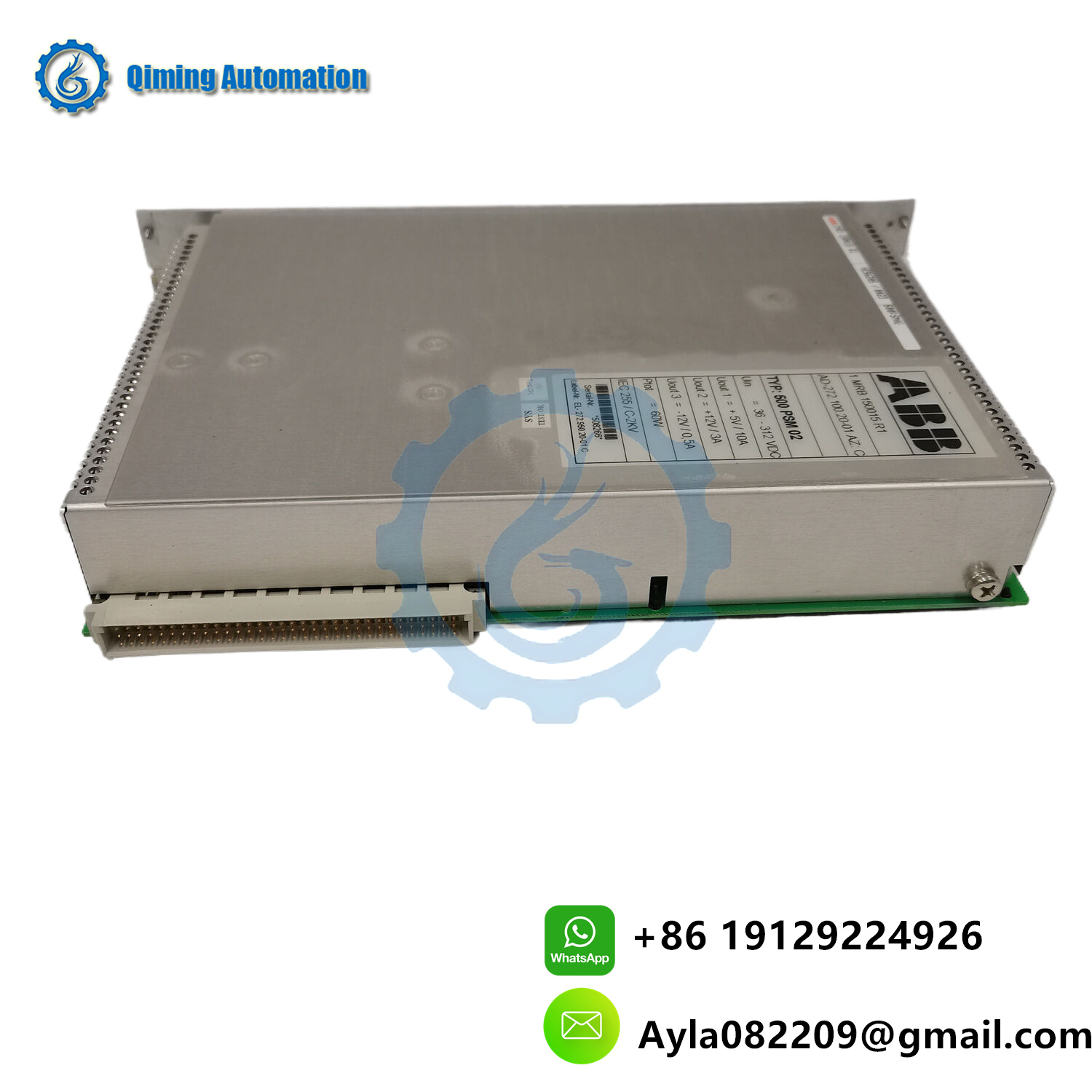

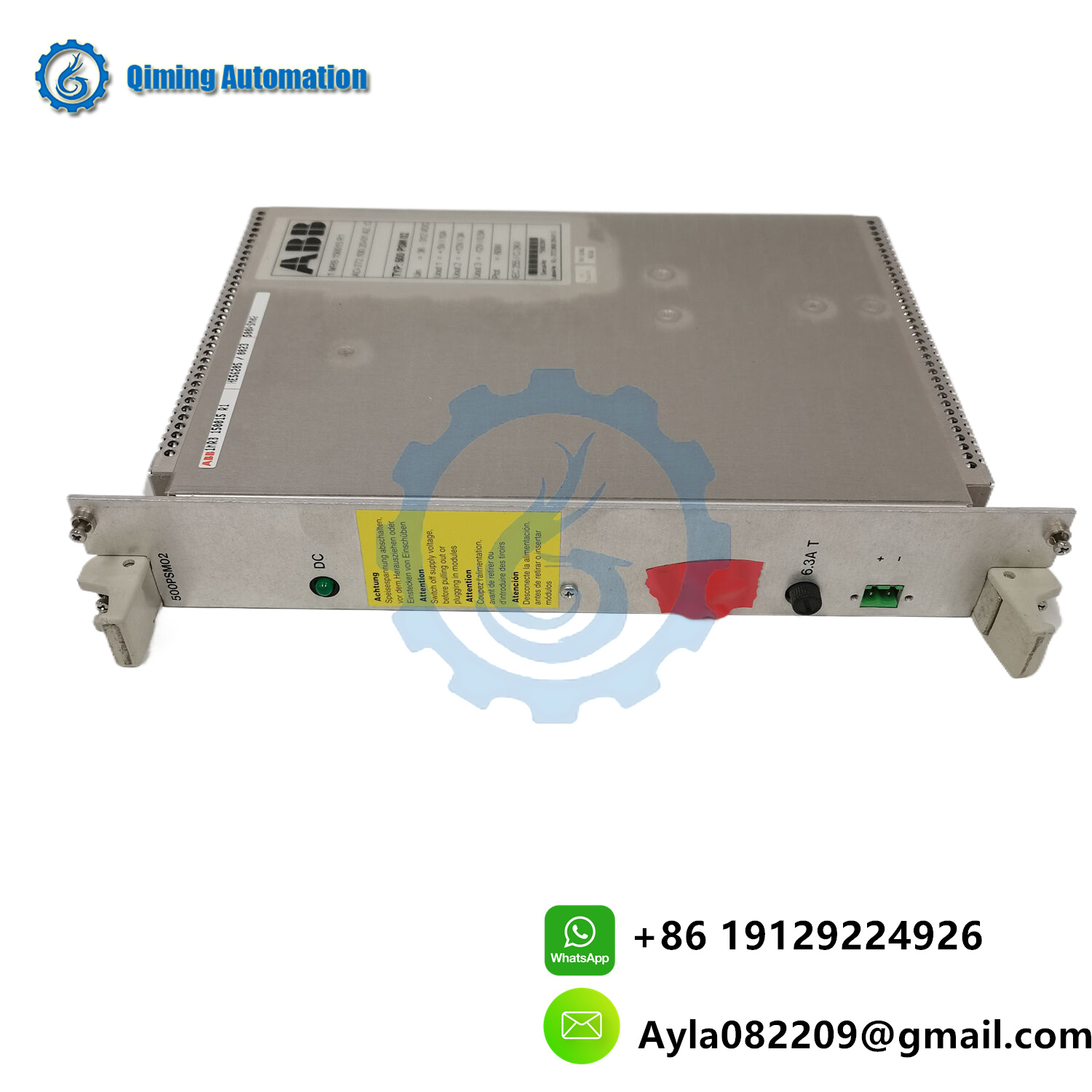

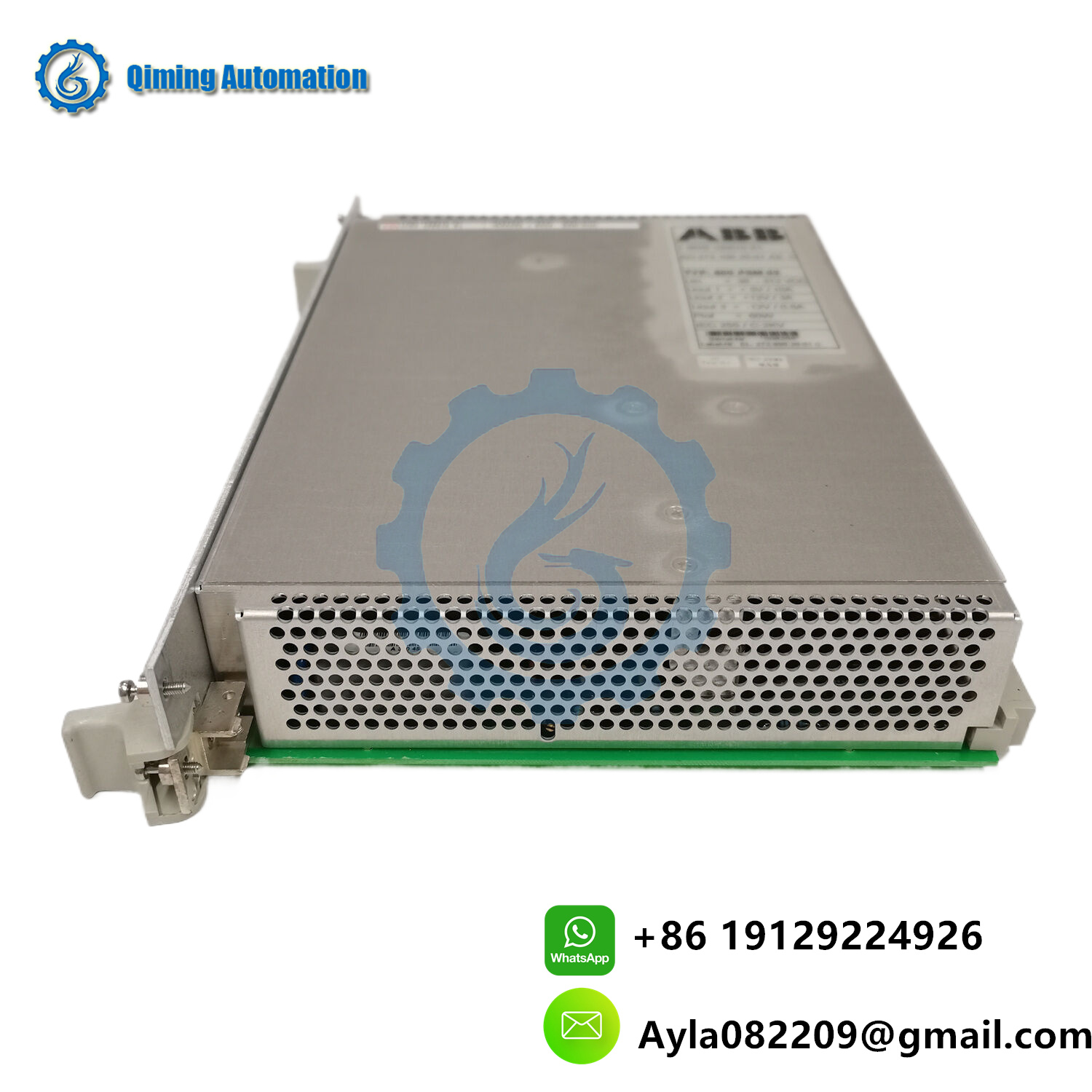

ABB Distance protection relay -500PSM02 Original stock in stock

ABB 500PSM02: Product Overview

The 500PSM02 is a distance protection relay from ABB’s REL 500 series, designed to safeguard high-voltage transmission lines and substations against phase-to-phase and ground faults. This relay provides adaptive zone-based protection, fault location, and grid automation capabilities, ensuring rapid fault isolation and minimal disruption to power networks. It is widely deployed in transmission systems, industrial grids, and renewable energy plants to enhance grid reliability and comply with international standards like IEC 61850 and IEEE C37.90.

Technical Parameters

1. Electrical Ratings:
   • Rated Voltage: 72.5–550 kV (system-dependent configuration).
   • Current Inputs: 1 A or 5 A AC (configurable).
   • Frequency: 50/60 Hz (±5% tolerance).
   • Auxiliary Supply: 48–250 V DC or 100–240 V AC/DC.
2. Protection Functions:
   • Distance Protection: Four-zone quadrilateral/mho characteristics with load encroachment blocking.
   • Directional Overcurrent: Backup protection for phase and ground faults (DT/IDMT curves).
   • Power Swing Detection: Prevents maloperation during grid oscillations.
3. Communication & Integration:
   • Protocols: IEC 61850 (GOOSE/SV), IEC 60870-5-103/104, DNP3.
   • Ports: Dual Ethernet (RJ45), fiber-optic (ST/LC), and RS485.
   • Cybersecurity: HTTPS, SSH, and role-based access control (RBAC).
4. Environmental Compliance:
   • Operating Temperature: -25°C to +70°C.
   • Humidity: Up to 95% (non-condensing).
   • Certifications: IEC 60255, UL 508, CE.

Key Functions

1. Adaptive Distance Protection:
   • Adjusts protection zones dynamically based on real-time grid conditions.
   • Supports teleprotection schemes (e.g., PUTT, POTT) for high-speed fault clearance.
2. Fault Analysis & Location:
   • Fault Recorder: Stores 64+ disturbance records in COMTRADE format.
   • Fault Location: Accuracy within ±2% of line length.
3. Automation & Control:
   • Auto-Reclosing: Configurable single- or three-phase reclosing sequences.
   • Synchrocheck: Voltage, frequency, and phase angle synchronization for grid reconnection.
4. Monitoring & Diagnostics:
   • Real-Time Measurements: Displays voltage, current, power, and impedance.
   • Self-Testing: Continuous hardware/software integrity checks.

System Applications

1. Transmission Networks:
   • Protects EHV lines (110–550 kV) with adaptive zone settings.
   • Integrates with ABB Relion® 500 series for substation automation.
2. Renewable Integration:
   • Ensures fault ride-through compliance for wind/solar farms.
   • Supports grid synchronization in hybrid power systems.
3. Industrial Power Systems:
   • Backs up transformer and busbar protection in steel mills or data centers.
   • Coordinates with feeder relays via IEC 61850 GOOSE messaging.
4. Microgrids:
   • Enables islanding detection and seamless grid resynchronization.

Configuration & Tools

• Software: Configured via ABB PCM600 for logic customization, setting adjustments, and firmware updates.
• Interoperability: Compatible with ABB System 800xA and third-party SCADA systems.

Advantages

• High Speed: Trips within 1–2 cycles for critical fault isolation.
• Scalability: Modular design for future upgrades (e.g., PMU integration).
• Robustness: Designed for harsh substation environments (IEEE 1613 compliance).
