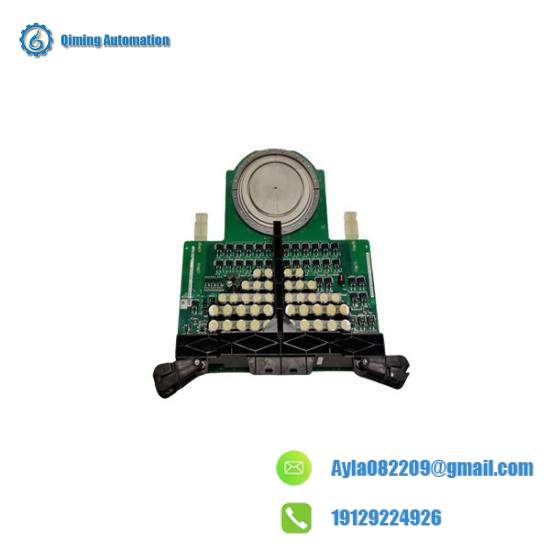

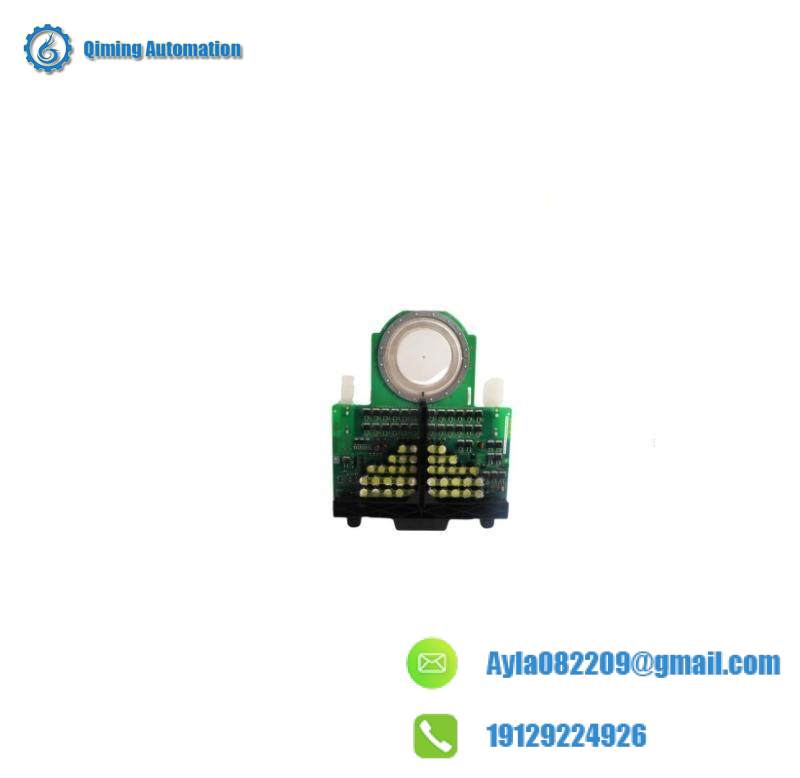

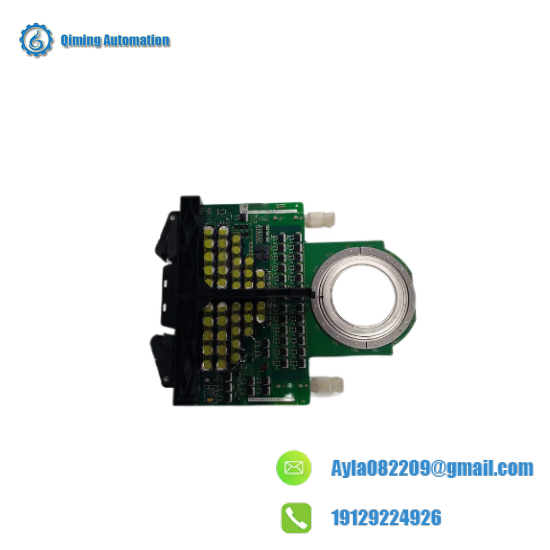

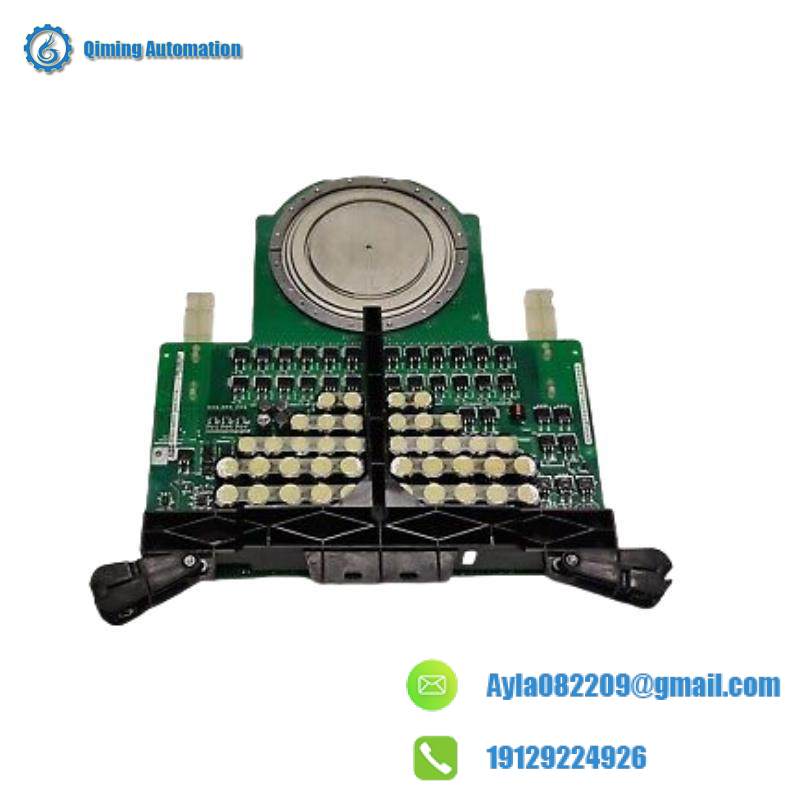

ABB 5SHX2645L0004 3BHB003154R0101 IGBT Module for Industrial Control Systems

Product Performance and Application

The ABB 5SHX2645L0004 3BHB003154R0101 IGBT Module delivers high-precision power conversion for demanding industrial control systems. Engineered with advanced IGBT technology, it features superior efficiency (up to 20 kHz frequency range), reduced energy losses, and optimized thermal management with a 150°C maximum junction temperature. Its robust 600V/300A rating ensures reliable operation in harsh environments including motor drives, power supplies, and heavy machinery applications.

Technical Specifications

Model: 5SHX2645L0004 3BHB003154R0101 Voltage Rating: 600V DC Current Rating: 300A Frequency Range: Up to 20 kHz Max Junction Temp: 150°C Dimensions: 165 × 100 × 30 mm Certifications: CE, UL, RoHS Cooling System: Advanced thermal management

Application Areas

This industrial-grade module is ideal for:

• Motor control systems
• High-frequency power supplies
• Industrial automation drives
• Renewable energy converters
• Manufacturing equipment

Our Services and Support

Guangzhou Qiming Automation Technology Co., Ltd. is an authorized partner of ABB, Bentley Nevada, and Honeywell. We guarantee:

• ✅ 100% genuine products with quality certification
• 🚚 24-hour shipping from fully stocked warehouse
• 🛡️ 1-year comprehensive warranty
• 🔧 Expert pre-sales consultation & technical support
• Can’t find your model? Contact us via WhatsApp for immediate assistance
