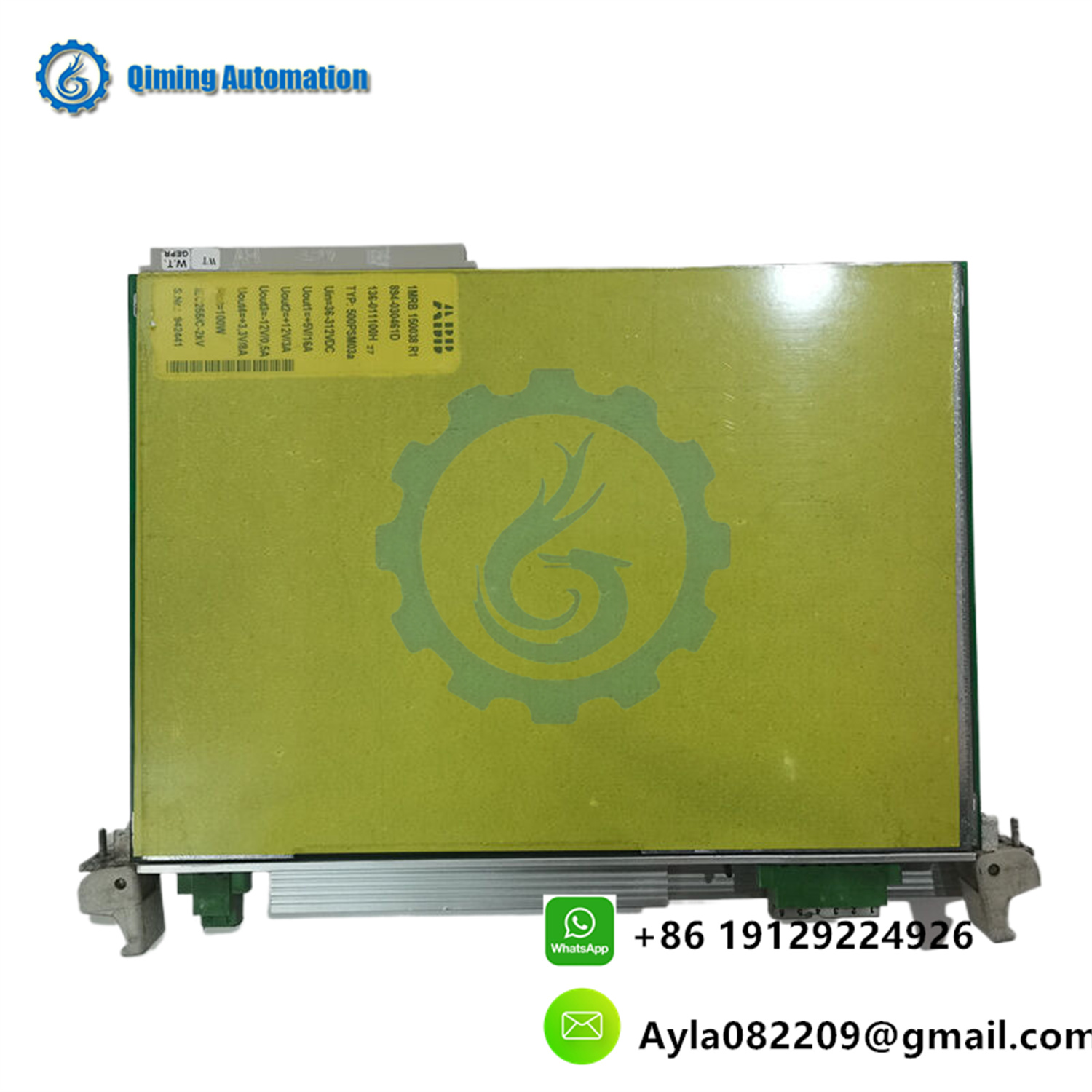

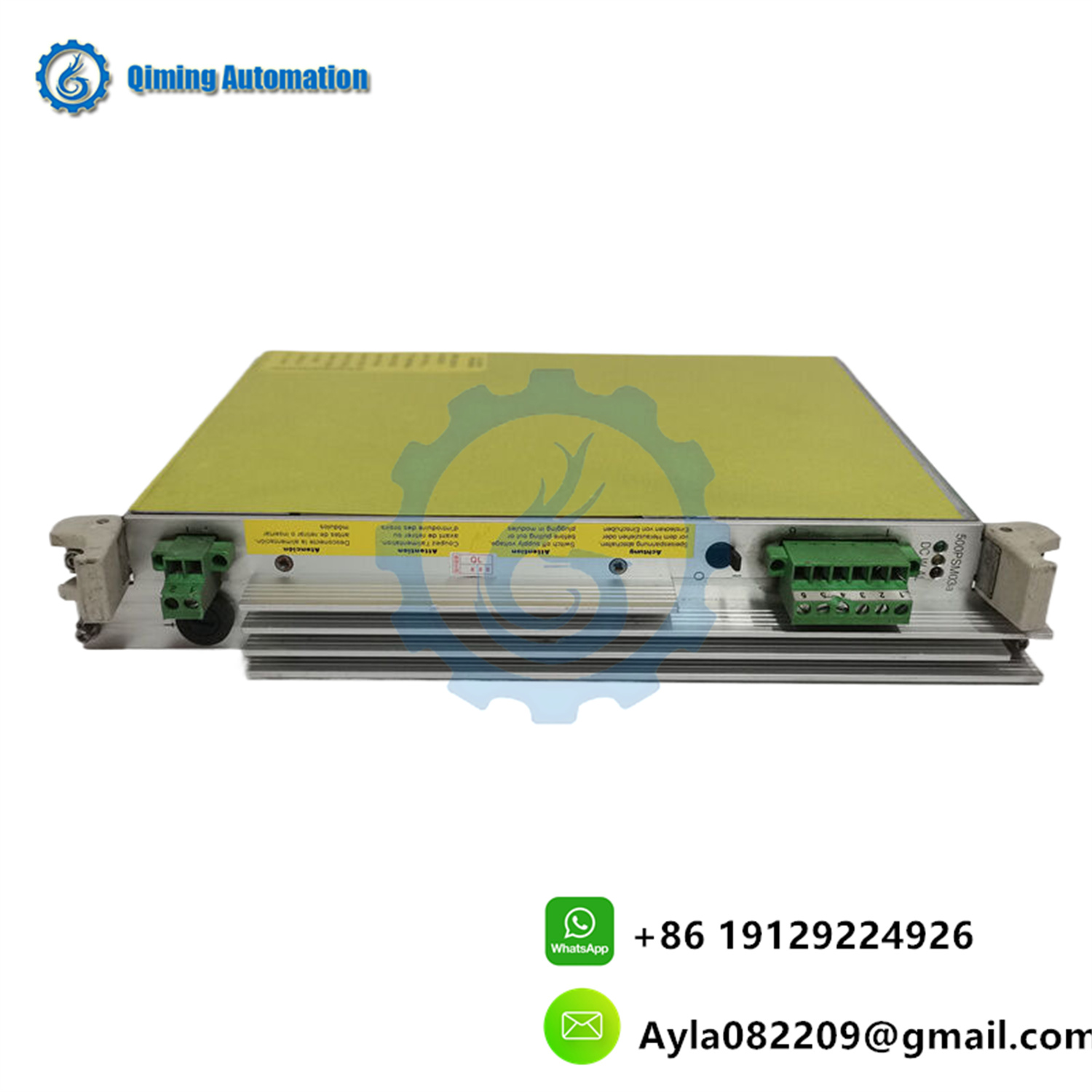

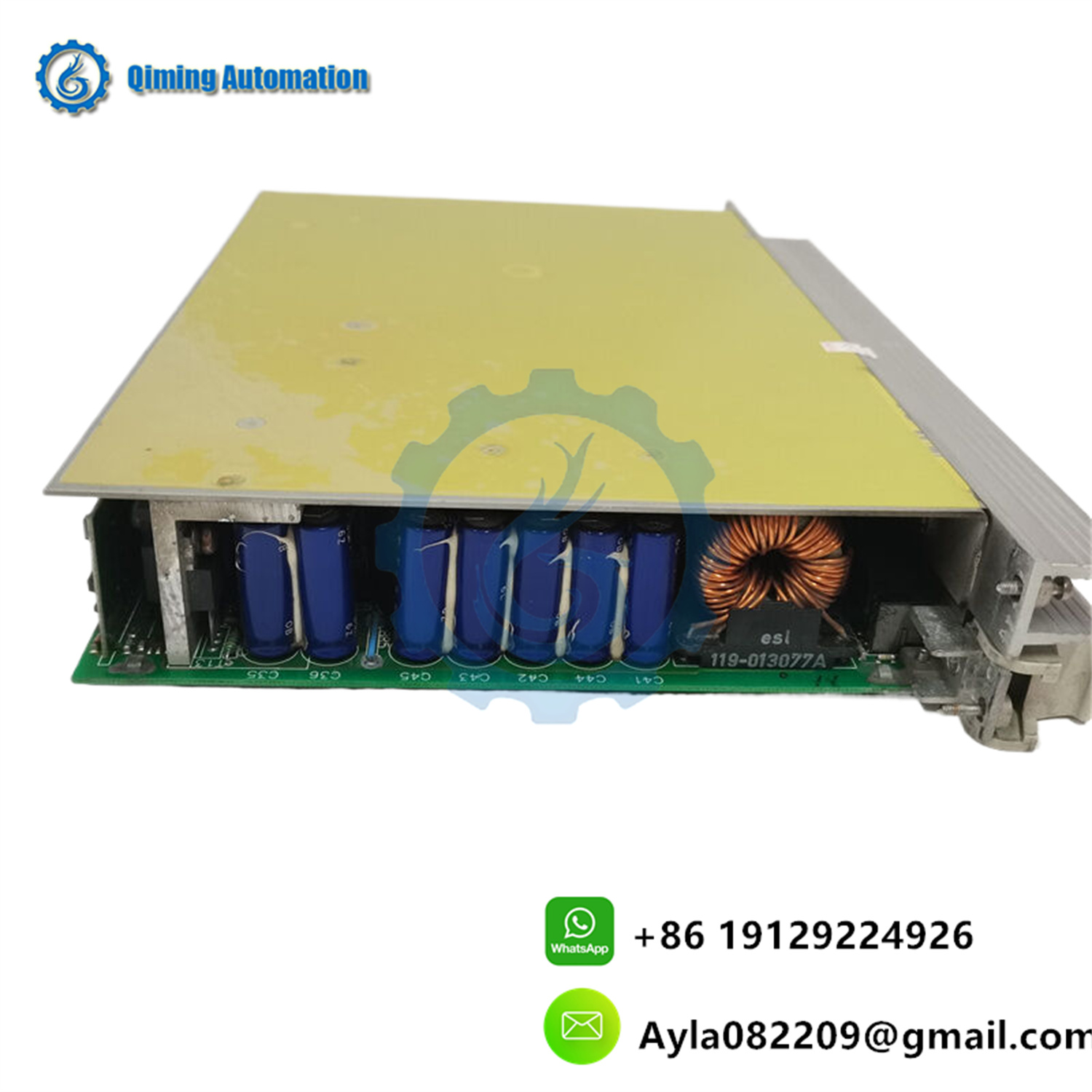

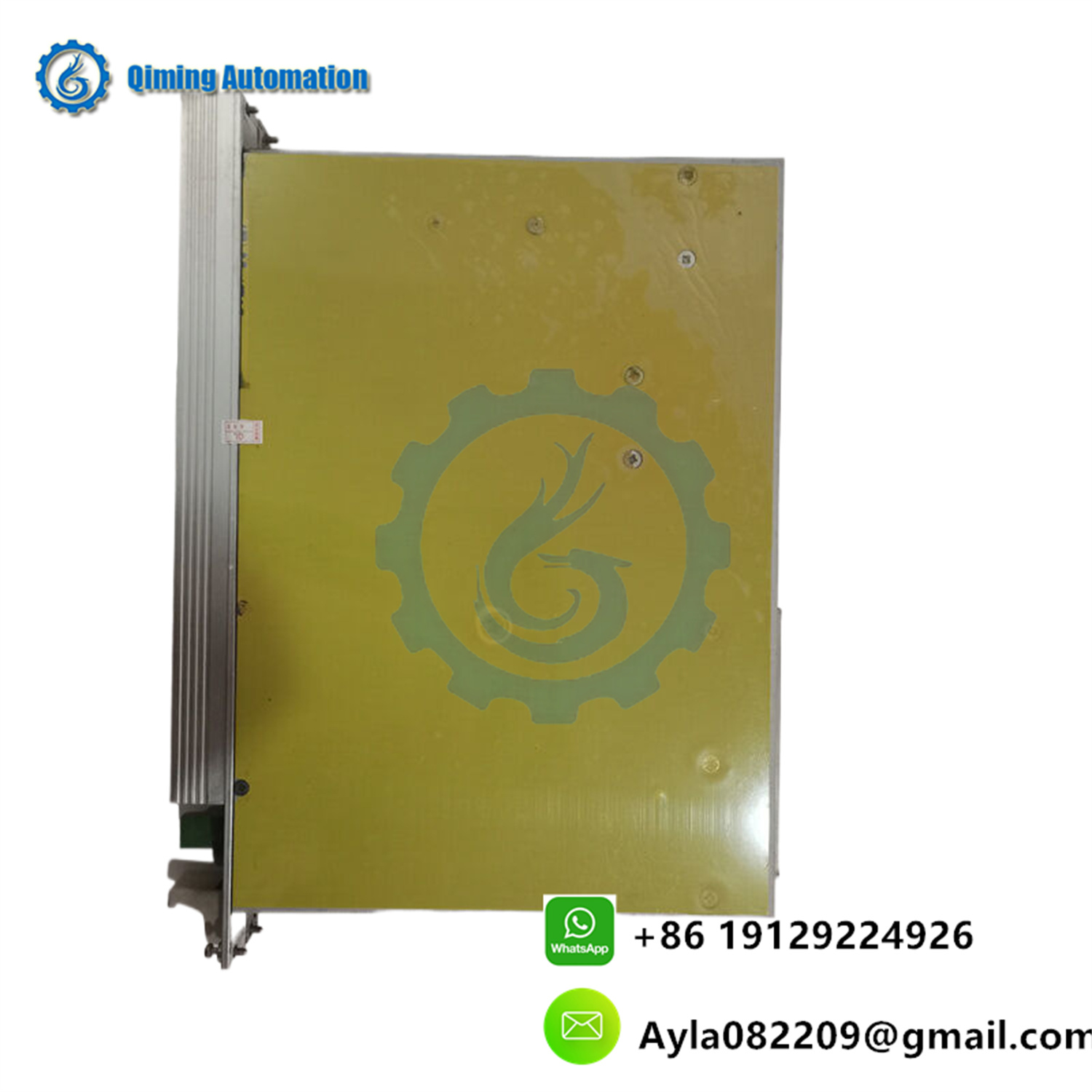

ABB 500PSM03 Line distance protection relay

ABB 500PSM03: Product Overview

The 500PSM03 is a line distance protection relay from ABB’s REL 500 series, designed for high-voltage transmission and distribution networks. This advanced relay provides distance protection, fault detection, and automation control for overhead lines and cables, ensuring grid stability and minimizing outage times. It is widely used in substations, renewable energy plants, and industrial power systems to safeguard against phase-to-phase and phase-to-ground faults, while supporting compliance with stringent grid codes.

Technical Parameters

1. Electrical Ratings:
   • Rated Voltage: 110–500 kV (system-dependent configuration).
   • Current Inputs: 1 A or 5 A AC (configurable).
   • Frequency: 50/60 Hz (±5% tolerance).
   • Auxiliary Supply: 48–250 V DC or 100–240 V AC/DC.
2. Protection Functions:
   • Distance Protection: Multi-zone (Z1-Z4) with quadrilateral or mho characteristics.
   • Overcurrent Protection: Definite Time (DT) and Inverse Time (IDMT) for backup coordination.
   • Earth Fault Detection: Sensitive directional/non-directional grounding protection.
3. Communication & Integration:
   • Protocols: IEC 61850 (GOOSE/SV), IEC 60870-5-103/104, DNP3.
   • Ports: Dual Ethernet (RJ45), fiber-optic (ST), and RS485 serial ports.
   • Cybersecurity: Supports HTTPS, SSH, and role-based access control (RBAC).
4. Environmental Specifications:
   • Operating Temperature: -25°C to +70°C.
   • Humidity: Up to 95% (non-condensing).
   • Certifications: IEC 60255, IEEE C37.90 (EMC), UL 508.

Key Functions

1. Advanced Fault Detection:
   • Teleprotection Schemes: Permissive/Blocking schemes for high-speed fault clearance.
   • Power Swing Blocking: Prevents relay misoperation during system oscillations.
2. Automation & Control:
   • Automatic Reclosing: Configurable single- or three-phase reclosing sequences.
   • Synchrocheck: Voltage, frequency, and phase angle synchronization for grid reconnection.
3. Monitoring & Diagnostics:
   • Real-Time Measurements: Displays voltage, current, power, and impedance phasors.
   • Disturbance Recorder: Stores 64+ fault records in COMTRADE format.
   • Self-Testing: Continuous monitoring of hardware and software integrity.
4. Custom Logic:
   • Programmable Logic (CFC): Enables user-defined automation sequences via ABB’s PCM600 software.

System Applications

1. Transmission Networks:
   • Protects EHV lines (220–500 kV) with adaptive distance protection settings.
   • Integrates with ABB Relion® 500 series for unified substation automation.
2. Renewable Energy Integration:
   • Safeguards grid connections for wind and solar farms against dynamic fault conditions.
   • Supports low-inertia grid requirements with fast fault detection.
3. Industrial Power Systems:
   • Backs up transformer and busbar protection in steel mills or mining facilities.
   • Coordinates with overcurrent relays for selective tripping.
4. Microgrids & Smart Grids:
   • Enables islanding detection and seamless grid re-synchronization.

Configuration & Tools

• Software: Configured via ABB PCM600 for setting adjustments, logic customization, and firmware updates.
• Interoperability: Compatible with third-party SCADA systems via IEC 61850 or DNP3.

Advantages

• High Speed: Operates within 1–2 cycles for critical fault clearance.
• Adaptability: Adjustable protection curves for diverse grid topologies.
• Cybersecurity: Complies with IEC 62351 for secure communication.
