Product Overview

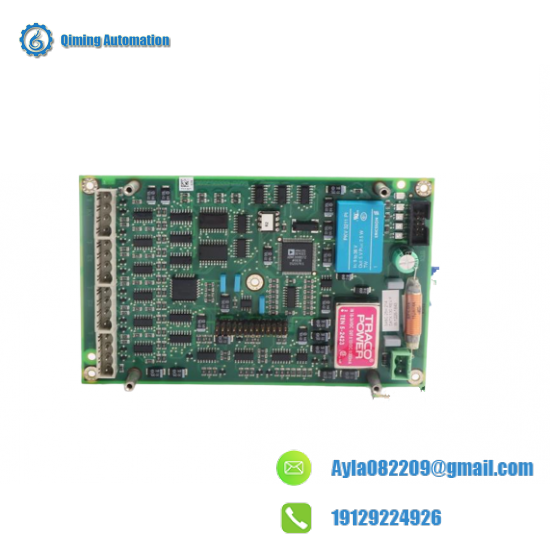

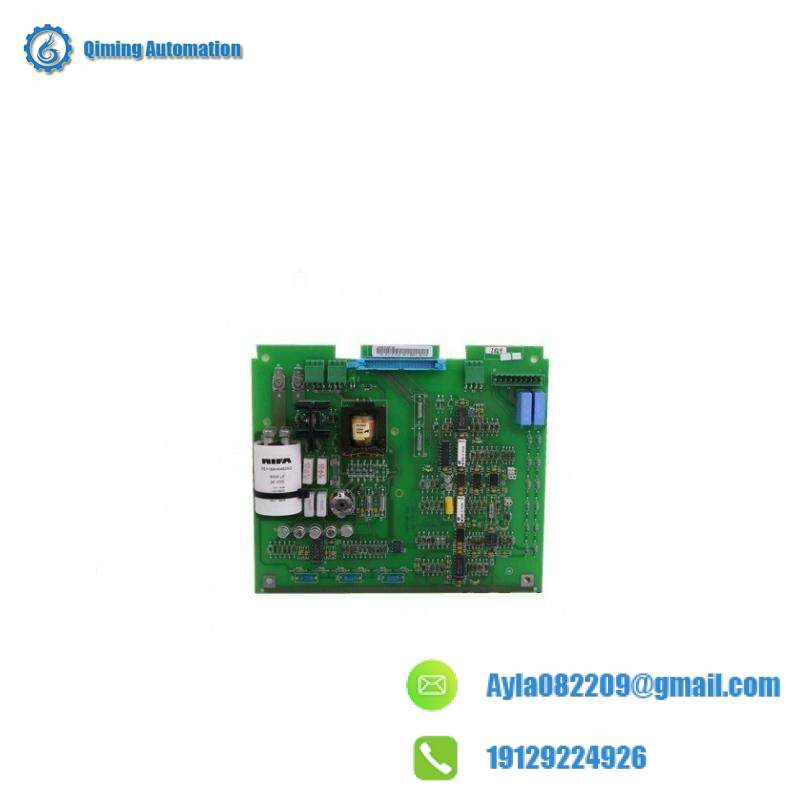

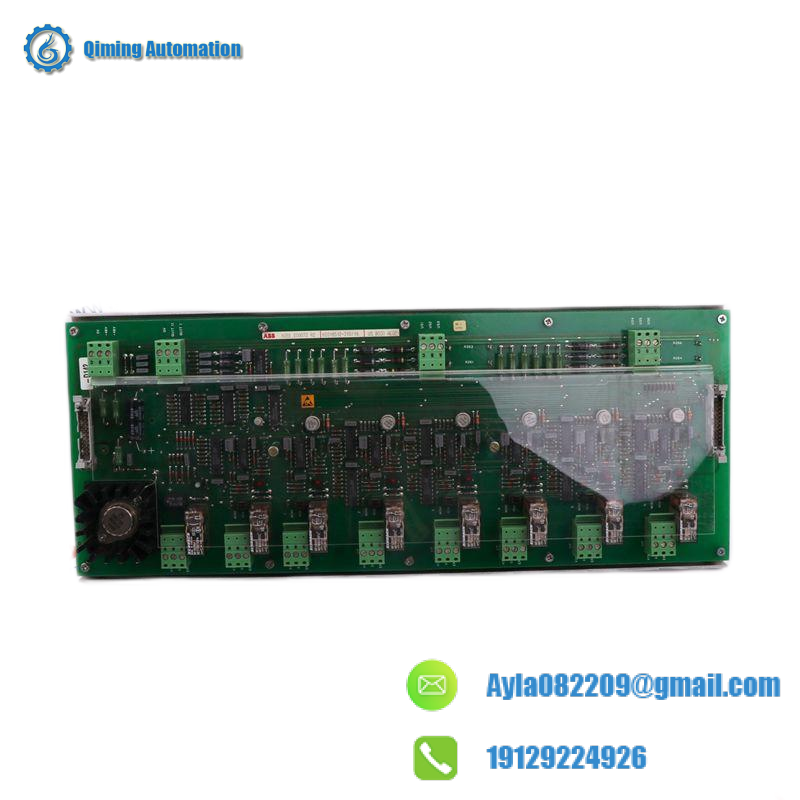

The ABB 3ASC25H214 DATX130 Pulse Transformer Board delivers exceptional signal transformation for industrial control systems. Engineered with ABB’s cutting-edge technology, this module ensures precise pulse transmission in demanding environments. Its military-grade components provide vibration resistance up to 5G and operational stability across -40°C to +85°C temperature ranges. The reinforced dielectric design guarantees electrical isolation integrity even in high-noise manufacturing settings.
Technical Specifications
- Order Number: 3ASC25H214 DATX130
- Brand: ABB
- Operating Voltage: 220V AC ±10%
- Output Frequency: 30kHz ±2%
- Isolation Voltage: 4kV RMS
- Temperature Range: -40°C to +85°C
- Dimensions: 120mm × 80mm × 25mm
- Weight: 0.14kg ±5%
- Compliance: IEC 61800-5, UL 508
Applications
This pulse transformer module is essential for precision-driven industrial environments including CNC machining centers, robotic assembly lines, power generation control systems, and high-speed packaging machinery. It provides critical signal conditioning in motor drives, servo controllers, and PLC synchronization networks where timing accuracy below 5ns jitter is required.
