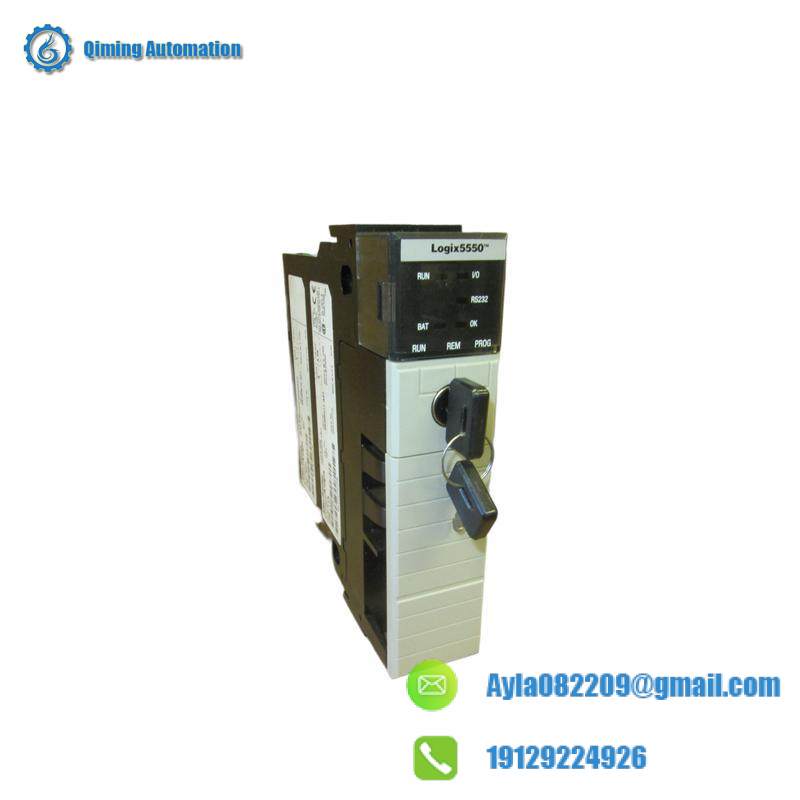

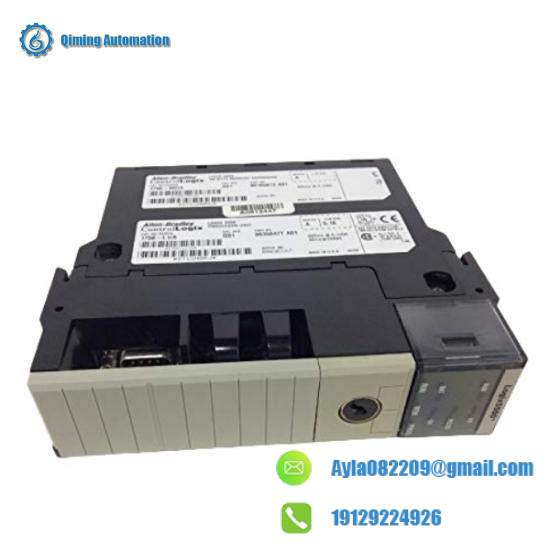

A-B 1756-L1M2 ControlLogix Digital I/O Module

Product Overview and Applications

The Allen-Bradley 1756-L1M2 is a high-performance 16-channel digital I/O module engineered for the ControlLogix platform. Designed for industrial automation systems, it delivers reliable data acquisition and precise control capabilities in demanding environments. With robust isolation (1000 VDC) and an extended operating temperature range (-40°C to 85°C), this module ensures operational stability in harsh conditions while optimizing machine efficiency.

Technical Parameters and Dimensions

Brand: Allen-Bradley (A-B) Model: 1756-L1M2 Series: ControlLogix Type: Digital I/O Module Input Channels: 16 Output Channels: 16 Operating Voltage: 24 VDC Input Current/Channel: 0.5 mA Output Current/Channel: 0.5 A Isolation Voltage: 1000 VDC Operating Temp: -40°C to 85°C Dimensions: 4.5 × 3.5 × 1.5 inches Weight: 0.2 kg

Application Fields

This versatile I/O module is essential for automotive assembly lines, pharmaceutical manufacturing, food processing plants, and energy management systems. Its precision control capabilities make it ideal for conveyor systems, packaging machinery, safety interlocks, and process monitoring applications where real-time data accuracy is critical.

Our Services

Guangzhou Qiming Automation Technology Co., Ltd. is a certified partner of Bentley Nevada, Honeywell, and ABB. We guarantee:

• ✅ 100% genuine products with full traceability
• ✅ 1-year comprehensive warranty
• ✅ 24-hour shipment from our fully stocked warehouse
• ✅ Technical support for system integration

Can’t find your required model? Contact us via WhatsApp for custom solutions.
