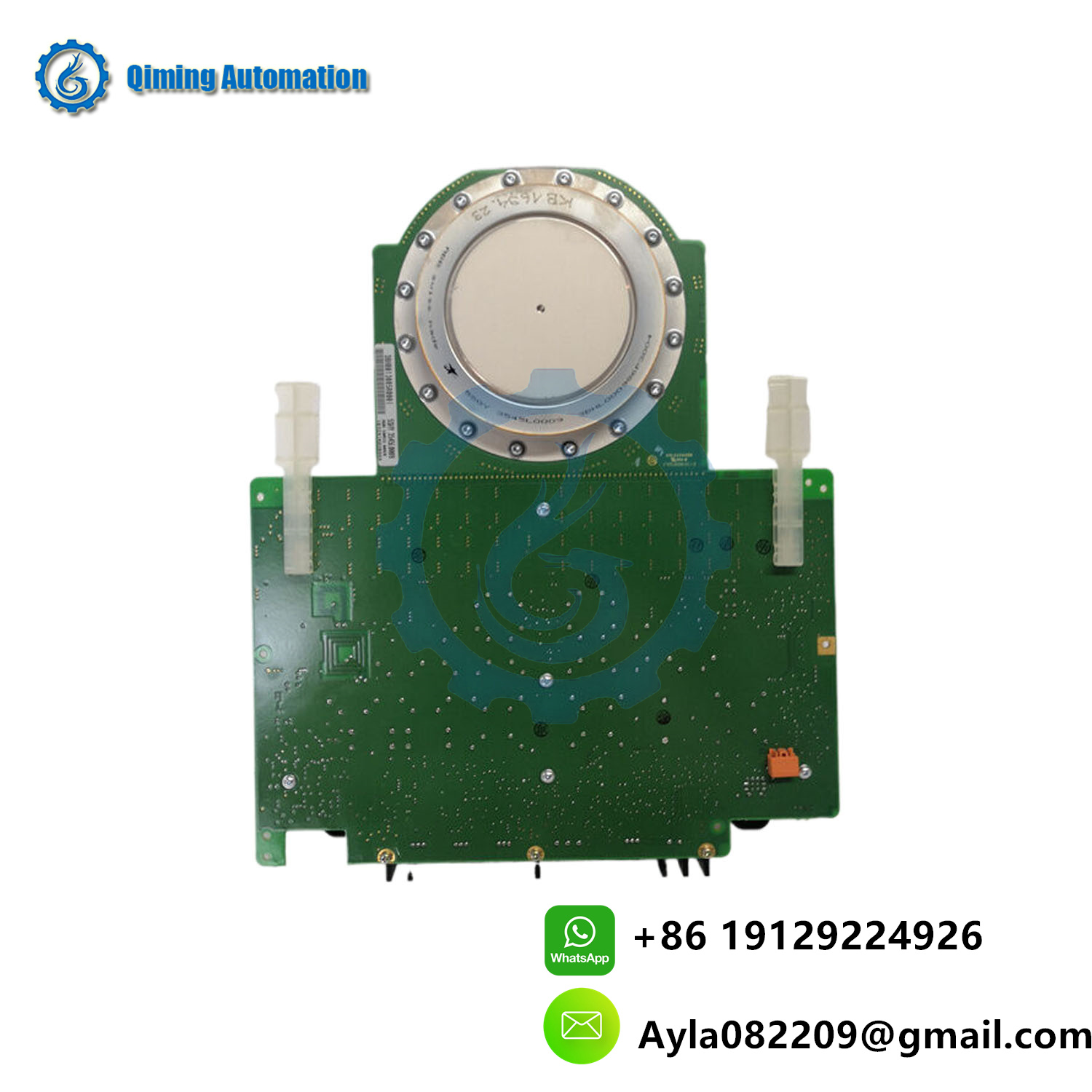

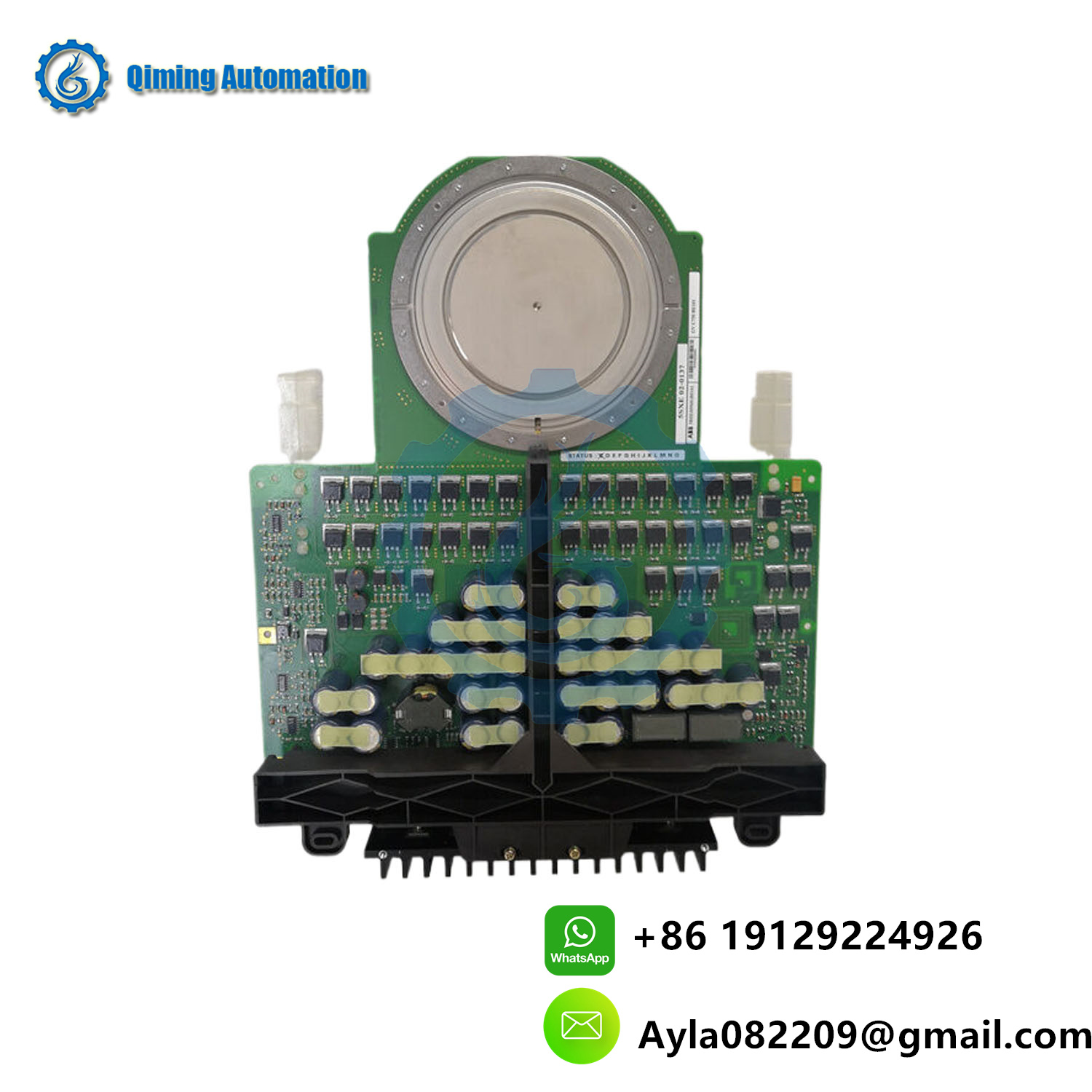

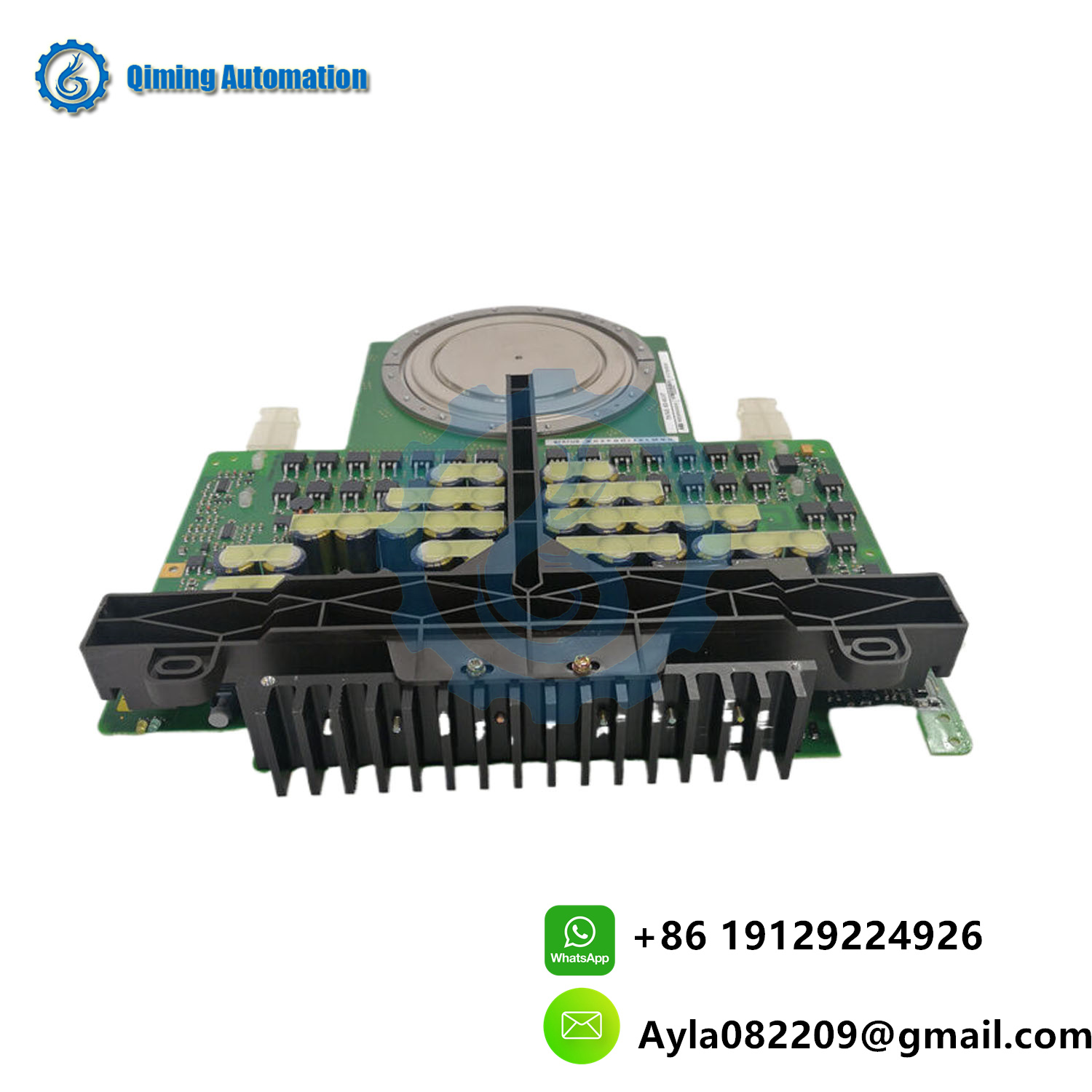

ABB 5SHY3545L0009 (3BHB013085R0001) High-Power Thyristor
Performance & Applications
ABB 5SHY3545L0009 (3BHB013085R0001) is a premium thyristor engineered for industrial power regulation. Featuring ultra-low trigger current (typically 50mA) and 6500V blocking voltage capacity, it excels in HVDC transmission, motor soft-start systems, and high-power rectification circuits requiring precision current control under extreme loads.
Technical Parameters
- Part Number: 5SHY3545L0009 (Cross-ref: 3BHB013085R0001)
- Peak Repetitive Voltage: 6500V
- Average On-State Current: 3545A
- Critical Rate of Voltage Rise: 2000V/μs
- Operating Temperature: -40°C to +125°C
- Mounting: Press-pack design with 52mm clamping force
Industrial Applications
- Electric arc furnace power controllers
- High-voltage DC transmission (HVDC) stations
- Mining conveyor motor soft starters
- Aluminum electrolysis rectification systems
- Railway traction power converters
Qiming Automation Advantages
As ABB’s authorized partner, we provide:
✓ 24hr shipment guarantee (stock 85+ units)
✓ 12-month performance warranty
✓ OEM-grade packaging with anti-static protection
✓ Technical support for thyristor pairing & heatsink design
Contact our engineers for surge current calculations →
