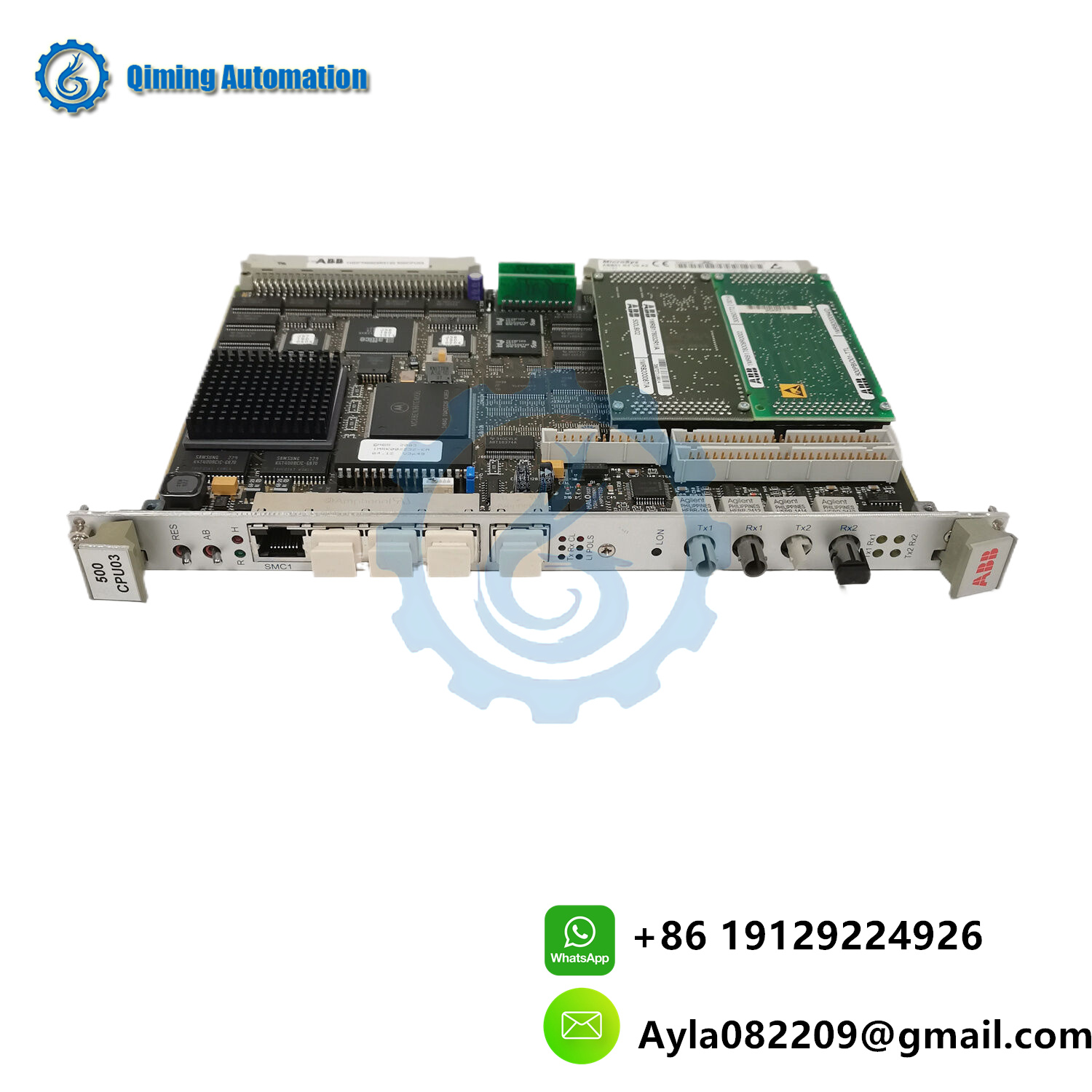

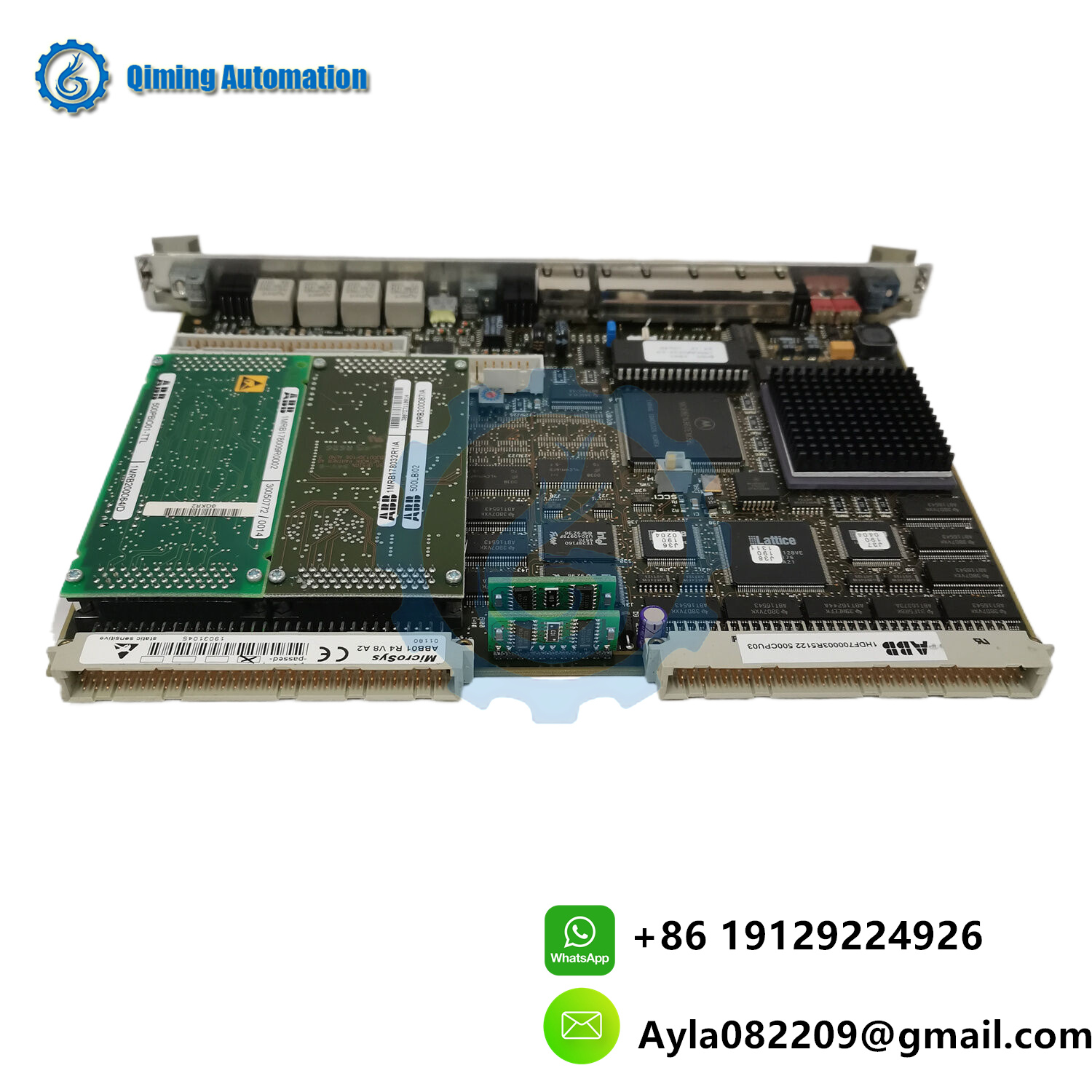

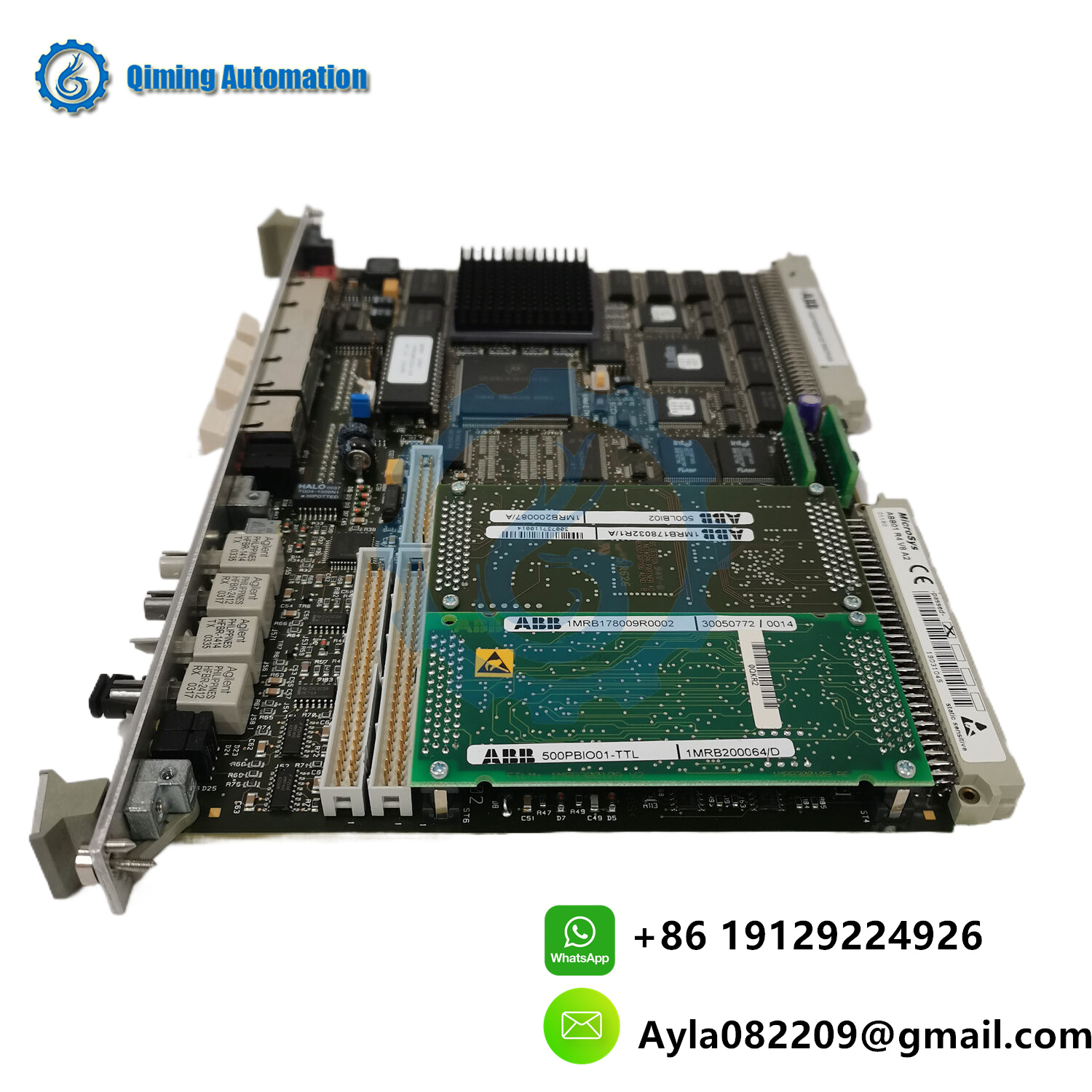

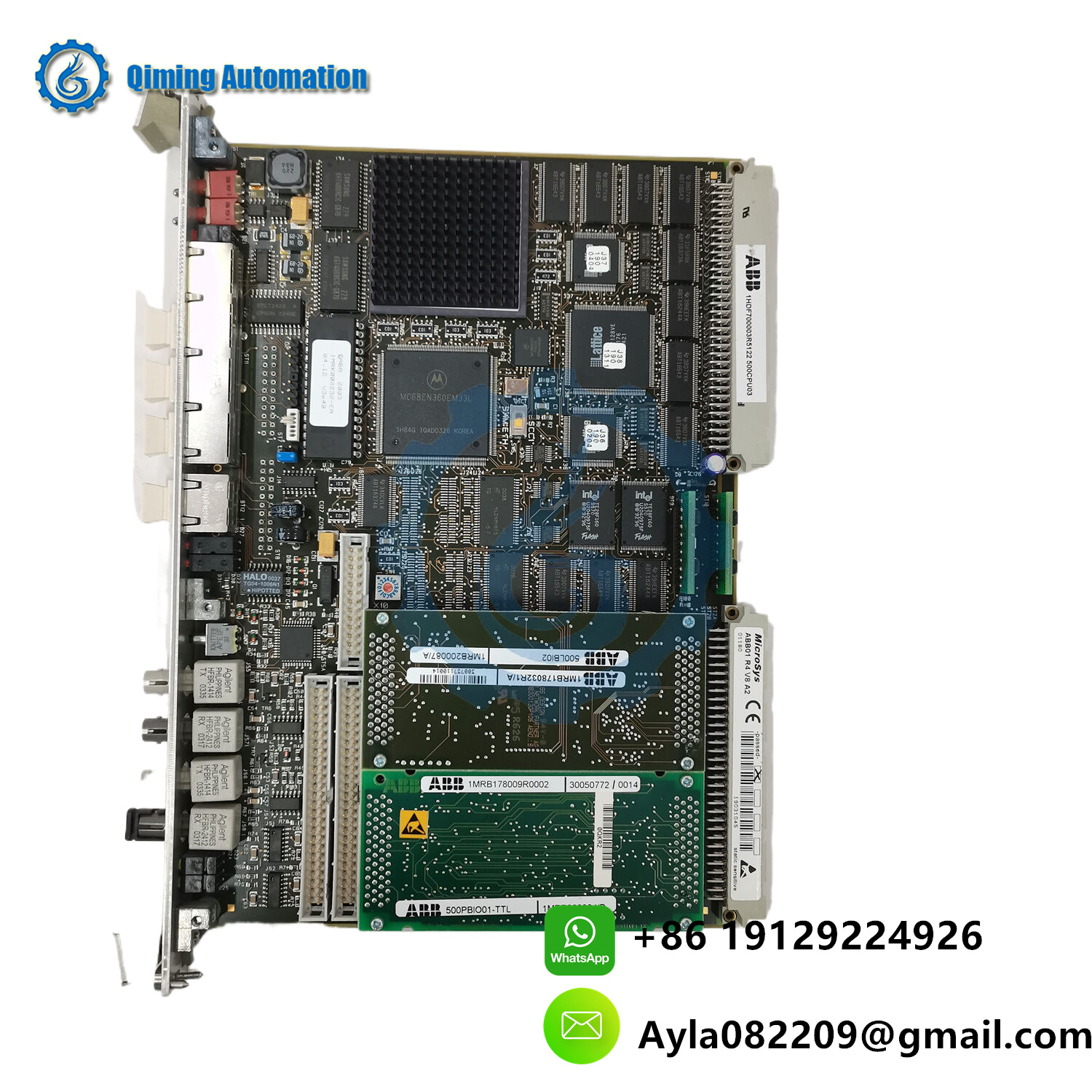

500CPU03 ABB Central Processing Unit (CPU) module

ABB AC 500 PLC Series: 500CPU03 Technical Overview
High-Performance Automation Controller for Industrial Applications

Introduction

The ABB 500CPU03 is a robust and scalable central processing unit (CPU) module within ABB’s AC 500 PLC (Programmable Logic Controller) family. Designed for demanding industrial automation environments, this controller combines advanced processing power, flexible connectivity, and compliance with global safety standards. It is engineered to support complex control tasks in industries such as manufacturing, energy, water treatment, and infrastructure.

Key Features

1. High-Speed Processing
   • 32-bit RISC processor with clock speeds up to 100 MHz, enabling rapid execution of logic, arithmetic, and data-handling operations.
   • Cycle time as low as 0.1 ms for critical real-time control applications.
2. Memory Capacity
   • Integrated RAM: 512 KB for user program storage.
   • Expandable Memory: Supports up to 4 MB via SD card for data logging, recipe management, and firmware updates.
3. Communication Interfaces
   • Ethernet TCP/IP: Built-in 10/100 Mbps port for seamless integration with SCADA, HMI, and enterprise systems.
   • Serial Ports: RS-232/RS-485 interfaces for legacy device connectivity (e.g., modems, barcode readers).
   • Fieldbus Support: Compatible with PROFIBUS DP, Modbus RTU/TCP, and CANopen protocols via optional communication modules.
4. I/O Flexibility
   • Supports modular I/O expansion with ABB’s AC 500 series digital/analog modules.
   • Max. I/O Capacity: Up to 1,024 I/O points (depending on configuration).
5. Redundancy & Reliability
   • Hot-swappable modules for minimal downtime during maintenance.
   • Hardware redundancy options for critical processes (dual-CPU configurations).
6. Safety & Compliance
   • Meets IEC 61131-2 standards for industrial environments.
   • SIL 2/3 certification (Safety Integrity Level) for safety-critical applications.
   • Operating temperature range: -25°C to +60°C with resistance to vibration (5g) and humidity (95% non-condensing).

Technical Specifications

Functional Capabilities

1. Advanced Motion Control
   • Supports multi-axis servo control for robotics, conveyor systems, and CNC machines.
   • Integrated PID loops for precise temperature, pressure, and flow regulation.
2. Data Handling & Connectivity
   • OPC UA server/client functionality for secure data exchange with MES/ERP systems.
   • SQL database integration via SD card for batch processing and analytics.
3. Cybersecurity
   • User authentication (password protection) and role-based access control.
   • Encrypted communication protocols to safeguard against unauthorized access.
4. Diagnostics & Maintenance
   • Real-time system monitoring with built-in diagnostics (e.g., module status, network health).
   • Firmware updates via SD card or Ethernet.

Applications

• Manufacturing: Assembly line automation, quality control, and robotic cell coordination.
• Energy Management: Grid stability, renewable energy systems (solar/wind), and substation control.
• Water/Wastewater: Pump control, chemical dosing, and filtration processes.
• Building Automation: HVAC, lighting, and access control systems.

Programming & Integration

• Software: Compatible with ABB’s Automation Builder IDE, offering simulation, debugging, and version control tools.
• Libraries: Pre-configured function blocks for motion control, PID, and communication protocols.
• Third-Party Integration: Supports OPC DA/UA, REST API, and MQTT for IoT-enabled solutions.

Conclusion

The ABB 500CPU03 PLC CPU module is a versatile, future-proof solution for industrial automation, delivering high-speed processing, robust connectivity, and compliance with stringent safety standards. Its modular design and scalability make it ideal for adapting to evolving production needs while ensuring operational reliability in harsh environments.
