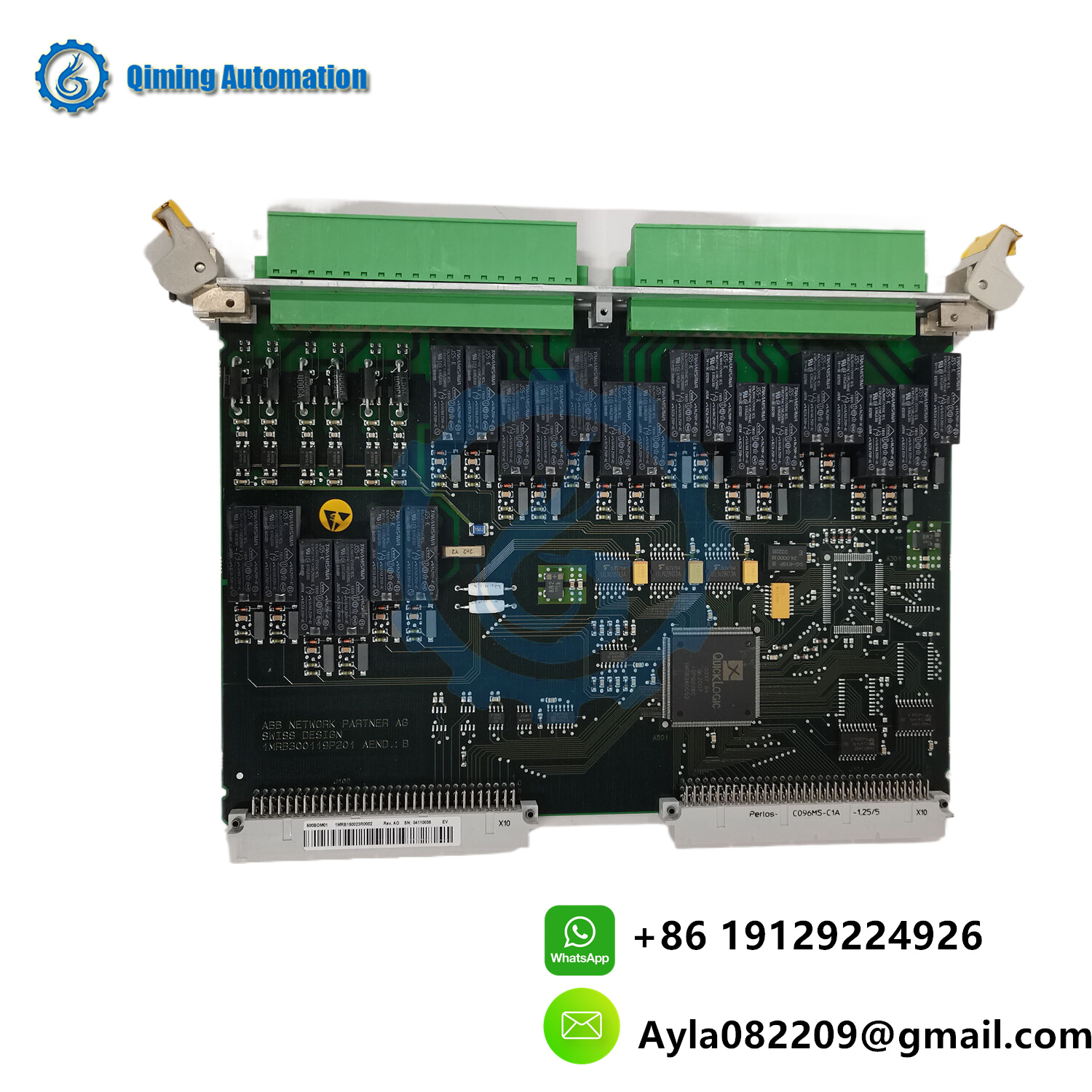

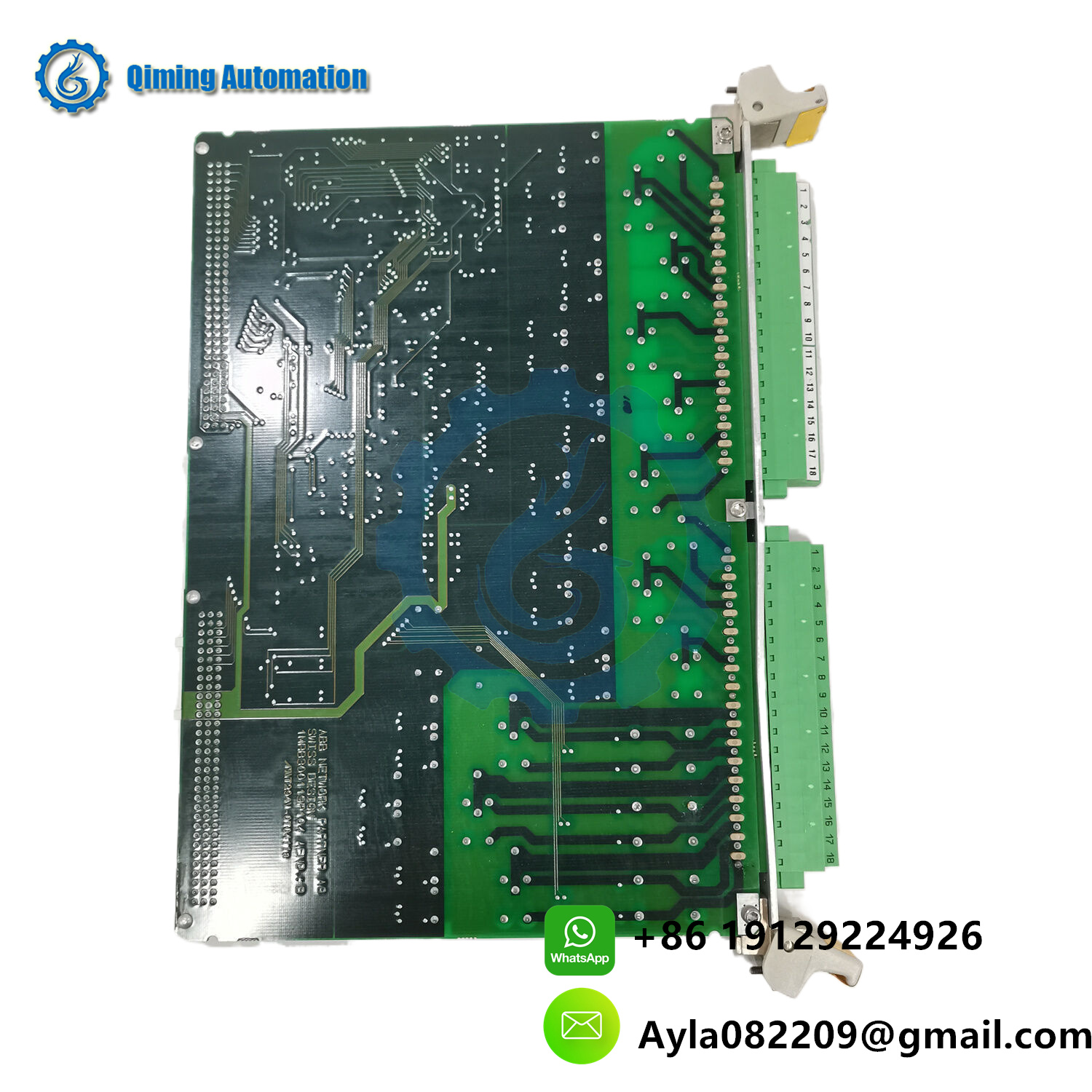

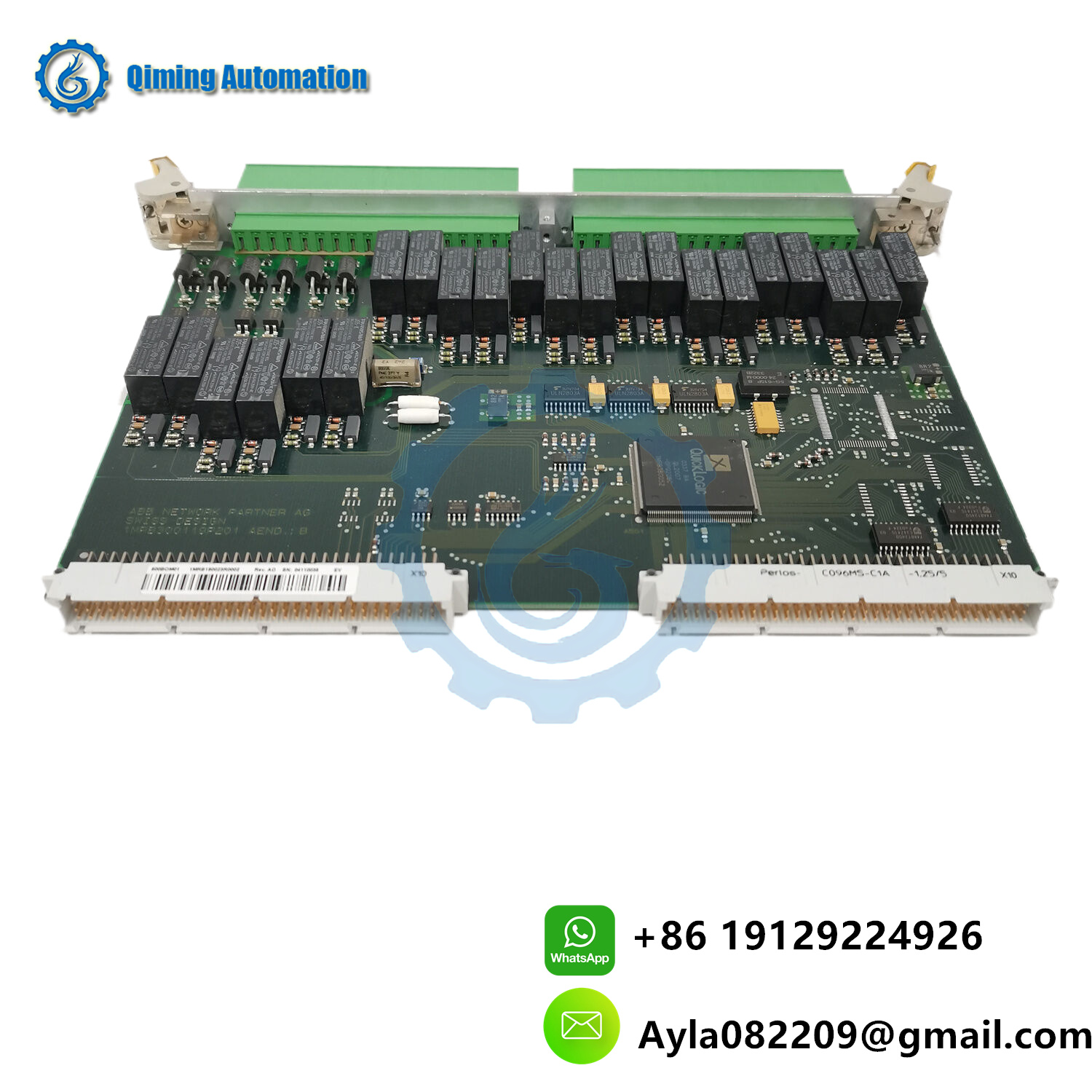

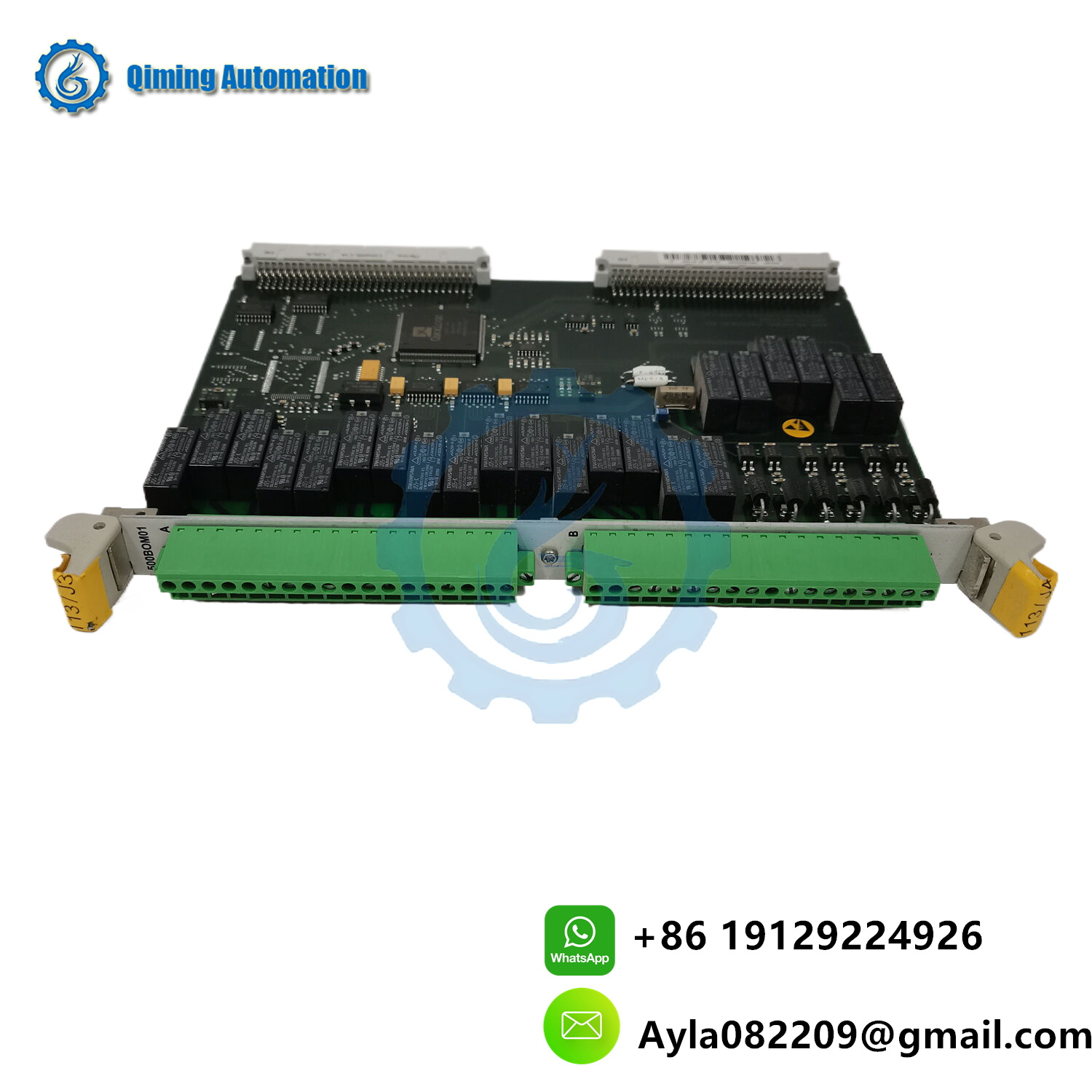

500BOM01 ABB Control relay components

Here’s a detailed overview of the ABB 500BOM01 module, focusing on its technical parameters and functionalities. This device is part of ABB’s protection and control relay portfolio, designed for industrial and power system applications.

Technical Parameters

1. Input Ratings:
   • Voltage Input: Compatible with 100–240V AC/DC (wide-range power supply for global use).
   • Current Input: Supports 1A or 5A secondary current inputs (configurable for CTs).
   • Frequency Range: 50/60 Hz (±10%).
2. Protection Functions:
   • Overcurrent (Instantaneous, Definite/Inverse Time).
   • Earth Fault Protection (directional/non-directional).
   • Thermal Overload Protection (for motors/cables).
   • Under/Overvoltage Protection.
   • Phase Imbalance Protection.
3. Control & Monitoring:
   • Programmable logic (via ABB PCM600 software).
   • Real-time measurement of voltage, current, power, and frequency.
   • Event logging (up to 1,000 events with time stamps).
   • Fault records and oscillography.
4. Communication Interfaces:
   • Serial Communication: RS-485 (Modbus RTU protocol).
   • Ethernet: Optional module for IEC 61850, Modbus TCP/IP, or DNP3.0.
   • Front-port USB for local configuration.
5. Environmental Specifications:
   • Operating Temperature: -25°C to +70°C.
   • Storage Temperature: -40°C to +85°C.
   • Humidity: Up to 95% (non-condensing).
   • Certifications: IEC 60255, UL 508, CE, and RoHS compliant.
6. Mechanical Design:
   • Compact 1/4 DIN housing (96×96 mm).
   • IP40 protection (front panel).
   • LED indicators for status/alarms.

Key Functionalities

1. Flexible Configuration:
   • Customizable protection curves and logic via ABB’s PCM600 software.
   • Supports user-defined settings for trip thresholds, delays, and alarms.
2. System Integration:
   • Seamless integration with SCADA, HMIs, and ABB Relion® series devices.
   • IEC 61850 compatibility for modern substation automation.
3. User Interface:
   • Intuitive LCD display with multilingual support.
   • Front-panel buttons for navigation and quick diagnostics.
4. Robust Protection:
   • High-speed tripping (<20 ms) for critical faults.
   • Arc flash detection (optional) for enhanced safety.
5. Diagnostics & Maintenance:
   • Self-testing routines for hardware/software health.
   • Time-synchronized event logs (via IRIG-B or SNTP).

Typical Applications

• Motor protection in industrial plants.
• Feeder and distribution network protection.
• Backup protection for transformers and generators.
• Microgrid and renewable energy systems.

The module is engineered for reliability in harsh environments, making it a versatile choice for modern power management.
